Graco Mark X Premium Pump Breakdown 287946

Get the Right Graco Mark X Premium Pump Breakdown 287946 Components for Peak Performance

Sprayersandparts.com is the factory-authorized source for Graco Mark X Premium—the most powerful electric texture sprayer in Graco’s TexSpray line. Pump model 287946 drives up to 2.1 GPM (8 L min^-1) at 3 300 PSI for single-pass coverage of drywall mud, elastomerics and block filler. When uptime means profit, pros choose our one-page checkout, live schematic support and same-day shipping to keep big jobs on schedule.

Why Choose Genuine Mark X Premium Pump Parts?

• Chromex™ Rod & Endurance Engineering —OEM 287946 displacement pump pairs a Chromex alloy rod with a hardened cylinder and UHMWPE/leather V-packings, delivering twice the rod life of chrome-plated copies.
• SmartControl 4.0 Accuracy — Factory sensors hold pressure within ±1 PSI, eliminating the fan-pattern bounce common with aftermarket transducers.
• Warranty Protection — From Graco

Core Performance Specs at a Glance

BlueLink™ telematics log gallons sprayed, hours run and maintenance alerts in real time—no clipboard required.

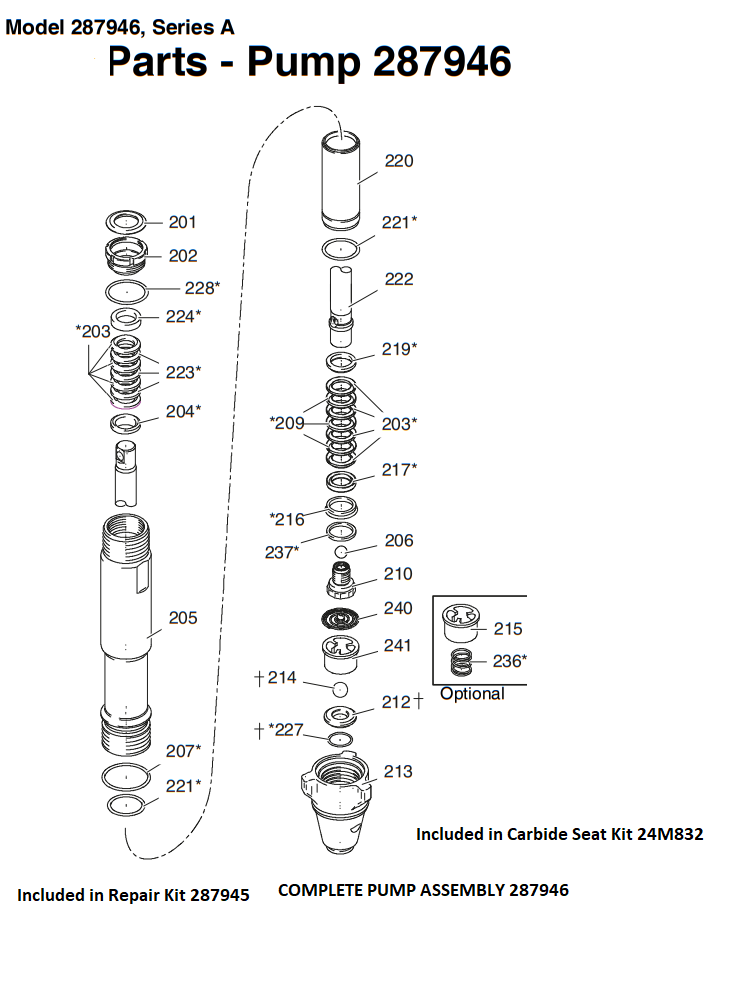

Inside the 287946 Pump Breakdown

Every 287946 wet-end ships pressure-tested, pre-oiled and ready for a 60-second ProConnect swap:

• Piston Rod — Chromex steel with Vortex grooves spins abrasive solids away from packings.
• Cylinder & Sleeve — Hardened stainless rated for continuous 3 300 PSI duty.
• Intake/Outlet Check — Tungsten-carbide seat and chrome-steel ball handle hot solvents and high-viscosity muds.
• Upper & Lower Packings — Dual-material stacks (UHMWPE + leather) run 150 000 cycles before scheduled replacement.

Cross-Platform Compatibility

Running multiple rigs? Many consumables overlap with other popular Graco models, simplifying truck-stock:

• Graco Sprayer Parts Diagram items—guards, RAC X tips and gun filters fit every Mark series unit.
• graco truecoat 360 parts double as solvent pouches when storing large-rig pump armor overnight.
• graco magnum LTS 17 parts diagram shares the same 60-mesh manifold filter used in Mark X touch-up guns.

Pro Tips for Triple-Shift Reliability

1. Flush Hot & Fast — Run FastFlush™ at full 3 300 PSI for 45 s; low-pressure rinses leave pigment that chips seats.
2. Log Packings Early — Replace V-packs every 150 000 cycles (≈700 gal). BlueLink pings your phone before wear shows.
3. Keep a Drop-In Pump — ProConnect lets you swap the 287946 in 60 s—cheaper than overnight freight on a seized rod.
4. Seal the Electronics — Replace the control-box gasket whenever you open the lid; moisture is board-killer #1.
5. Color-Code Storage — Orange = wet-end kits, Blue = electronics, Green = hardware. Crews find graco filters and strainers fast, even on night shifts.

Expanded Parts Matrix (Top Movers)

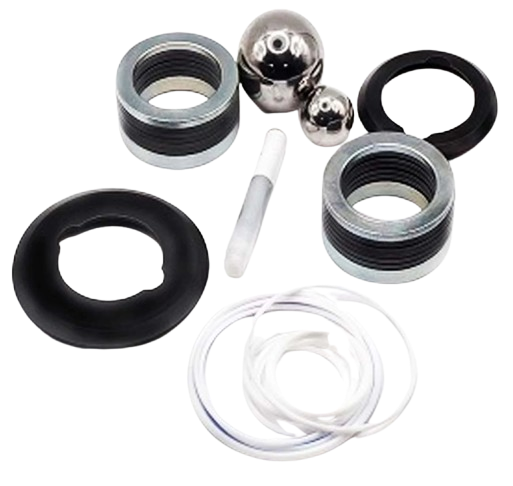

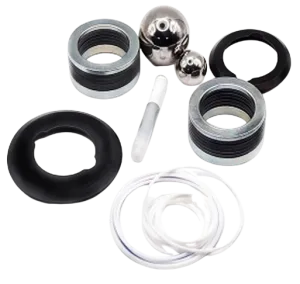

• 287945 Packing Repair Kit — Complete UHMWPE/leather stack with O-rings & spacers.
• 235014 Prime Valve — Hardened seat, nitrile gasket for leak-free dumping.
• 243222 Pressure Transducer — SmartControl 4.0 sensor with ±1 PSI accuracy.
• 240794 BlueMax II Hose — ¼″ × 50 ft, 3 300 PSI burst rating.
• 287952 Drain Hose — Oversized bore prevents sludge buildup in texture mud applications.

Rapid-Fire Q & A

Will a Mark X Premium pump fit my Mark VII Max? No—the Mark VII uses pump 24M416; stroke length differs by 18 %.

Can the 287946 handle elastomeric block filler? Yes—pair a ½″ hose with a 0.039″ RAC X WideRAC tip and keep pressure above 2 700 PSI for a uniform pattern.

Is a 5 kW generator enough? Graco recommends 5 kW continuous (6 kW surge) for 120 V units; 240 V versions need 7 kW for full flow.

Ready to Boost Uptime?

Add OEM Graco Mark X Premium Pump Breakdown 287946 parts—including filters, strainers and BlueLink sensors—to your cart now and feel tomorrow’s productivity surge: smoother fan patterns, zero mid-shift failures and crews that finish two rooms ahead of schedule.
