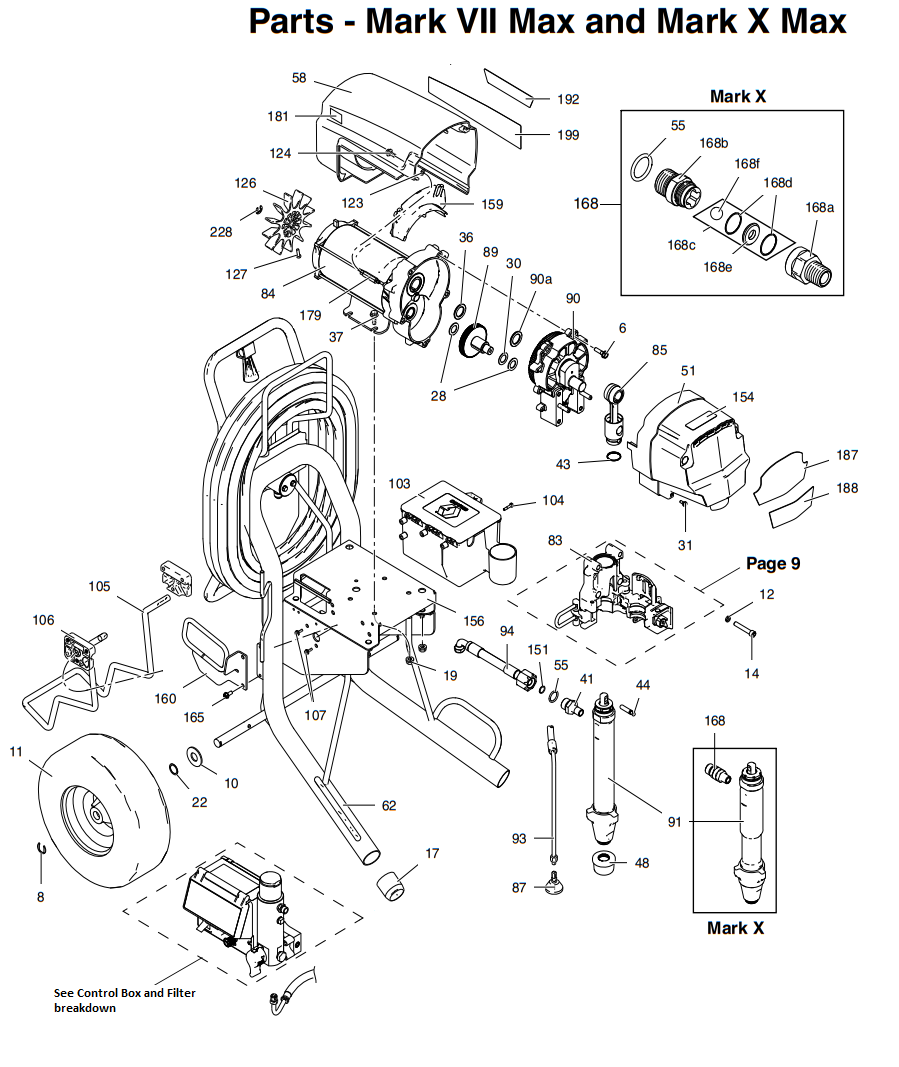

Graco Mark X Max Sprayer Parts List

Graco Mark X Max Sprayer Parts List—Factory-Fresh, Field-Ready

Stop bottlenecks before they start. Graco® Mark X Max TexSpray™ is a 3300 psi powerhouse that atomises high-build elastomerics, drywall mud and intumescent coatings without breaking a sweat. But even the toughest sprayer can’t outrun clogged filters, worn packings or cracked hoses. That’s why pros trust SprayersAndParts.com for authentic Graco paint sprayer parts engineered to restore factory performance in minutes.

Find, Fit & Finish Faster with Graco Mark X Max Essentials

Whether you’re spraying four-storey condo exteriors or fireproofing steel in a tight mechanical room, downtime costs more than replacement parts ever will. Stocking genuine Mark X Max components protects margins, keeps bids predictable and—most importantly—lets your crew hand off a flawless coat on the first pass.

Why Choose Genuine Mark X Max Parts?

• Exact OEM tolerances. Chromex® piston rods, MaxLife™ cylinders and V-Max Blue™ packings are honed to microns, ensuring pressure stability from 400 psi skim-coat work to full-tilt 3300 psi block-filler jobs.
• Certified material compatibility. Seals are rated for glycol-free silicones, high-solids epoxies and abrasive silica-filled textures, safeguarding uptime where aftermarket rubber swells and shreds.
• Plug-and-spray convenience. ProConnect™ pumps drop into the sprayer with a single retaining pin—no presses, pullers or “hope it lines up” guesswork. Your helper can swap one in under 60 seconds.
• Comprehensive manufacturer warranty. Register every serial number and get direct-line access to Graco’s service department, plus our in-house torque specs, exploded diagrams and video walk-throughs.

Key Features & Technical Specs

One Parts List—Many Compatible Machines

You’ll find Mark X Max parts sprinkled across the entire TexSpray and Classic Pro Connect family, letting you stock fewer SKUs without sacrificing coverage:

• TexSpray Mark IV, Mark V & Mark VII—share the same Easy-Out™ manifold filter, suction set and gun swivel seals.
• Classic 495, 595 & Ultra Max II 650 PC Pro—accept the identical 60-mesh core filter and 3/8 in graco hose assembly.
• Graco TrueCoat 360 Electric TrueAirless Sprayer Parts—cup liners, FlexLiner™ bags and variable-flow tips are perfect for punch-list touch-ups where rolling out the Mark X Max is overkill.
• graco magnum lts 17 parts diagram & graco magnum x5 airless paint sprayer parts—the same RAC X™ guards and FFLP tips mount to both consumer rigs and pro guns, standardising spray patterns across crews.
• graco fieldlazer line stripers—share RAC 5™ switch tips and high-pressure swivel o-rings, making field service simple for turf contractors.

Smart Accessory Bundles that Stretch Pump Life

A replacement pump fixes today’s failure; strategic accessories prevent tomorrow’s. Each curated bundle below bolts directly onto the Mark X Max and its siblings:

1. MaxLife™ Pump Protection Kit. Includes TSL™ Throat Seal Liquid, chromed piston lube and a five-pack of piston wipers—slash wear rates by up to 50 % on abrasive elastomerics.
2. Flex-Finish Whip Hose Set. A 3/8 in × 4 ft graco whip hose reduces gun fatigue while dampening pulsation for glass-smooth Level 5 walls.
3. ProConnect™ Spare Pump. Keep a fully primed graco pump replacement parts module in a marked dry-box; swap and spray in under a minute if packings let go mid-shift.
4. High-Flow Hopper Conversion. Swap the standard suction tube for a 10-gallon texture hopper; gravity feed means thicker mud without starving the pump.
5. RAC X™ Tip & Guard Kit. Eight contractor-favourite patterns from .021 FLLP to .035 WRM plus blue guards; identical threads for Magnum X5 and LTS 17 guns make crew training effortless.

Five Habits of Sprayers That Last 10,000+ Gallons

1. Track usage. Log coating type, ambient temp and gallons sprayed. Schedule pump packing swaps at 750 gal latex / 400 gal elastomeric.
2. Flush warm. A 100 °F water flush dissolves acrylic faster than cold and keeps sludge out of the filter.
3. Lube daily. Two drops of TSL in the throat before start-up and at lunch keeps rods mirror-bright.
4. Rotate guns. Alternating between BlueHandle® HD and Silver Plus® guns evens wear on the main swivel and thread seats.
5. Store smart. Leave the pump half-filled with pump armour for winter, preventing corrosion and stuck balls.

Ready to Order Mark X Max Parts?

Open the digital exploded view, click your parts list and check out with confidence. One cart, one freight fee, one rock-solid solution. Tomorrow’s jobsite will thank you.
