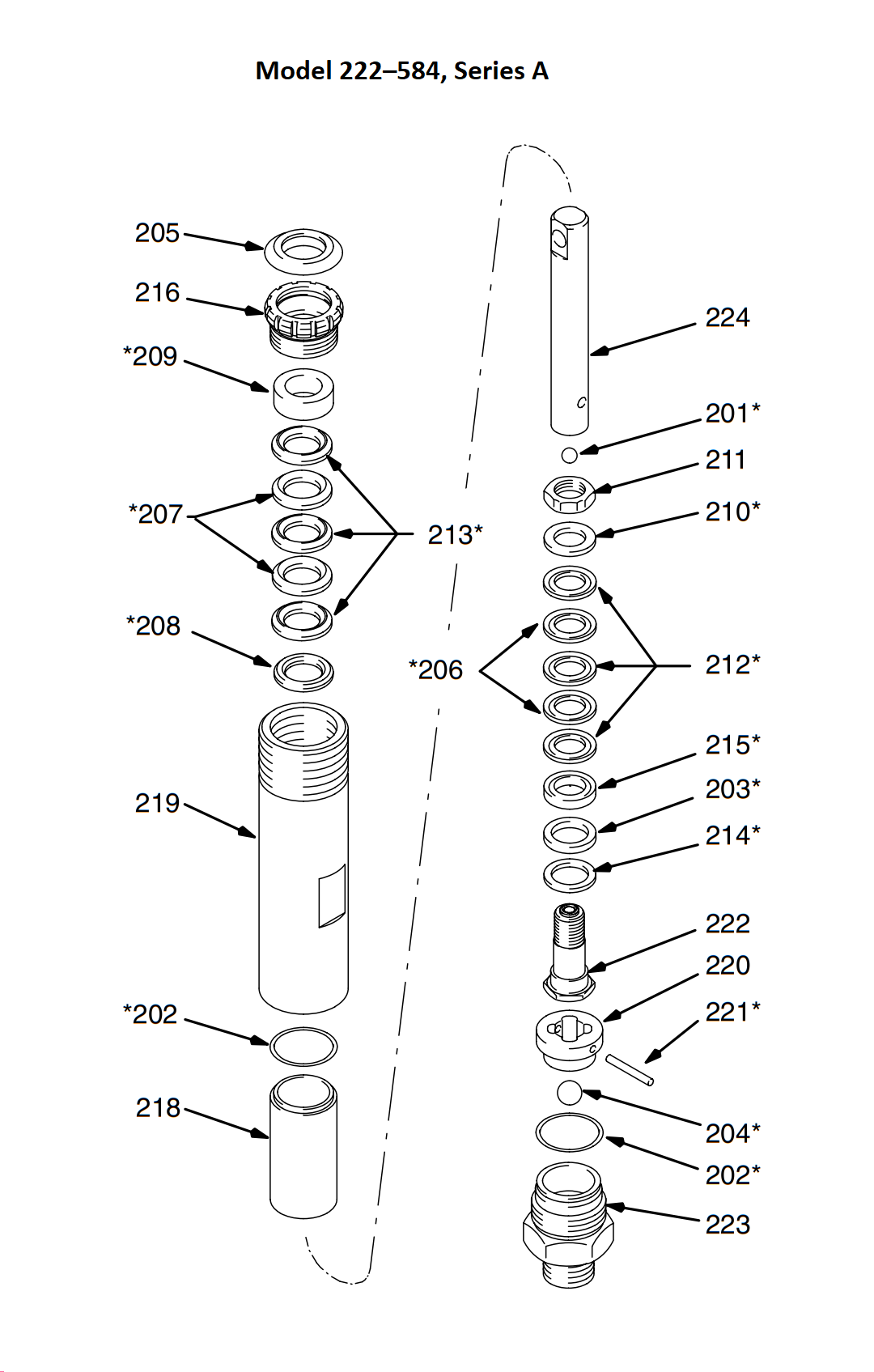

Graco 222584 Sleeved Displacement Pump List

Authentic Graco 222584 Sleeved Displacement Pump List Parts

When every minute of uptime counts, professional contractors, facility maintenance teams, and industrial finishers choose factory-authorized Graco 222584 Sleeved Displacement Pump List parts from SprayersAndParts.com. we make it effortless to keep your Graco airless paint sprayers running at peak output.

Unlock Maximum Uptime with Quality Graco 222584 Sleeved Displacement Pump Spares

222584 fluid section is the heart of legacy Ultra 500 / Ultra Max 500 rigs and select GM10000 and EM 490 models, delivering up to 2750 psi (19.5 MPa) working pressure and 1.8 L / min flow. Its sleeved-cylinder architecture lets you replace only the wear sleeve—slashing rebuild costs while restoring factory performance. Leather and PTFE V-packings, stainless-steel check balls, and precision-ground piston rods combine to outlast copy-cat imports by thousands of cycles.

Why Choose Genuine Graco 222584 Parts Over After-Market Copies?

• Tight OEM tolerances maintain volumetric consistency, crucial for stain, fire-retardant, and high-solids coatings.
• Verified chemical compatibility across water-borne, solvent-borne, and high-build epoxies—avoid premature seal swelling that plagues off-brands.
• 2750 psi pressure rating matches the original sprayer certification; no de-rates required.
• Sleeve-in-cylinder design means field replacement in under 30 minutes with tool #224-786; no press-fit teardown.
• Backed by Graco warranty.

Key Technical Specs at a Glance

Compatible Graco Sprayers & Retrofit Opportunities

222584 pump drops directly into several beloved electric and gas rigs. Whether you are consulting the graco x7 airless paint sprayer manual or upgrading an older contractor unit, use the list below as a starting point and confirm by serial number:

• Ultra 500 (231-315 Series A/B) — factory-installed on Lo-Boy and Hi-Boy carts.
• Ultra Max 500 — identical fluid section; sleeve and piston interchange 100 %.
• GM10000 Line-Striping Sprayer — use OEM pump for texture duties where long stroke & high output are essential.
• EM 490 Contractor Series — upgrade path for owners seeking longer life than the standard 236787 pump.

Tip: If your sprayer model isn’t listed, cross-reference the cylinder threads and pin spacing or contact our tech desk for a quick compatibility check.

Smart Accessory Pairings for Longer Pump Life

Sourcing OEM spares is only half the battle—equip your rig with the right maintenance accessories:

1. Graco repair kits 222587 (complete packing stack) and 224-786 sleeve tool—keep one of each on-site to cut unexpected downtime to under an hour.
2. Anti-corrosion Throat Seal Liquid (TSL) 206-994 extends leather packing life on hot summer jobs.
3. Airless paint sprayer attachments such as 50 ft BlueMax II hoses reduce pulsation, protecting packings from pressure spikes.
4. Choose fine-finish graco airless sprayer tips (FFLP, LP) when working below 1200 psi to minimize pump cycles and heat.

One-Stop Shopping with SprayersAndParts

Why juggle multiple suppliers? From graco cordless paint sprayer parts for handheld projects to the industry-favorite Graco TrueCoat 360VSP Electric TrueAirless Sprayer, one cart, one freight charge, one zero-stress delivery.

Best Practices for 5-Star Reliability

Document Intervals Log pump hours and solvent types; swap packings every 500,000 cycles.
Flush Smart Use warm water or compatible solvent at half operating pressure after each shift to avoid embedding debris.
Store Correctly Lube the throat, retract the piston, and cap both ports to prevent corrosion.
Stock Spares  Segregate leather versus UHMW PE parts in color-coded bins for fast grabs during rush jobs.

Ready to Order Your Graco 222584 Sleeved Displacement Pump?

Click Add to Cart, choose your preferred shipping speed, and feel the difference next time you pull the trigger. Your sprayer—and your crew’s bottom line—will thank you.
