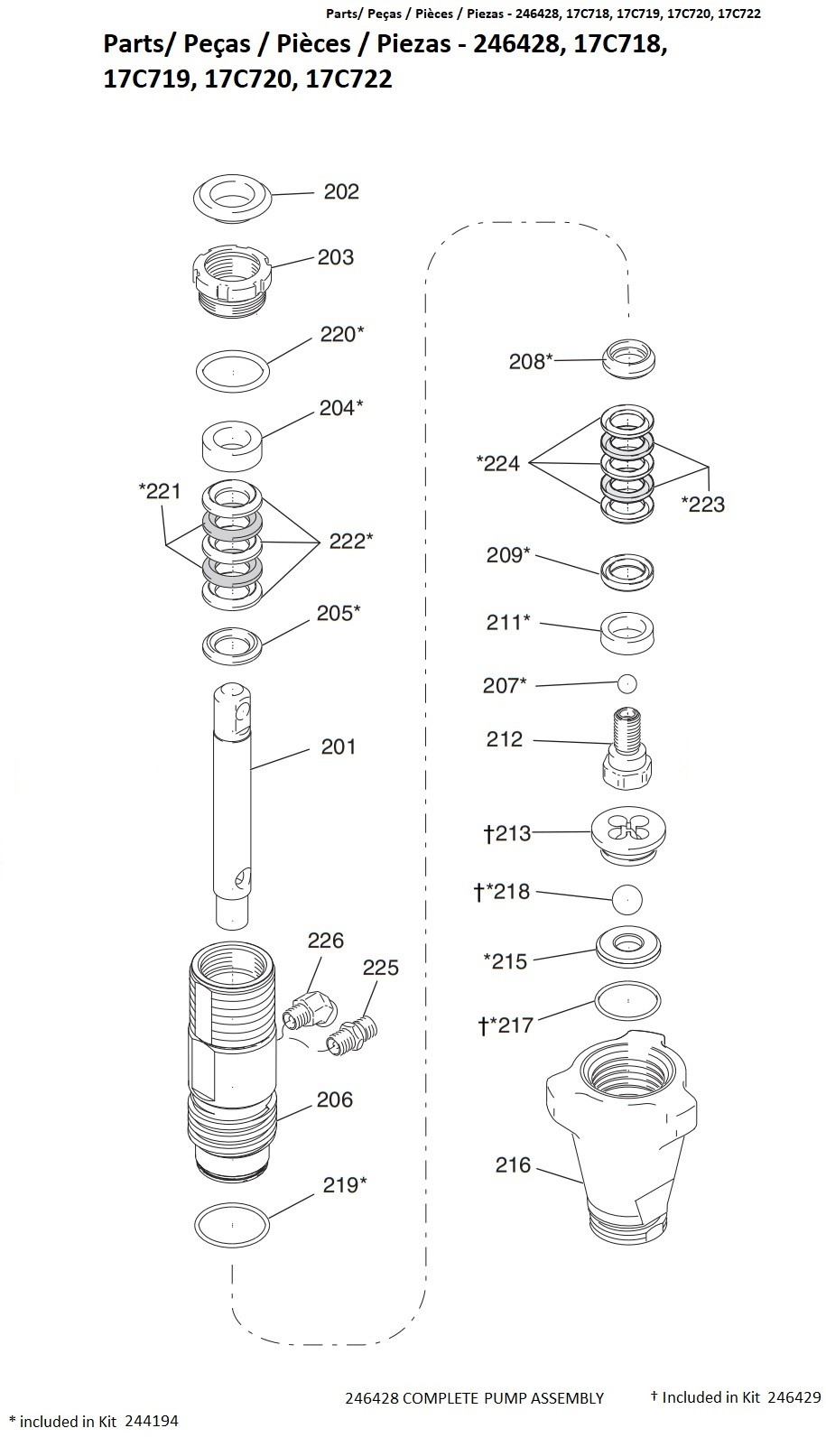

Graco FT600 Pump Parts Breakdown Electric Airless Sprayer (Pump 246428)

Find, Fit & Finish Faster with Graco FT600 Pump Parts Breakdown Electric Airless Sprayer (Pump 246428)

Downtime costs money. That’s why professionals reach for Graco FT600 Pump Parts Breakdown Electric Graco Airless Sprayer (Pump 246428) an Endurance Chromex piston pump revered for its rugged Chromex rod, hardened stainless cylinder, and V-Max Blue packings that last twice as long as copy-cat pumps . Whether you manage a fleet of graco sprayers, rent equipment, or run a single-crew repaint business, SprayersAndParts.com keeps every nut, seal, and rod in stock so you can spec, source, and ship from one friction-free dashboard.

Five Reasons Contractors Demand Genuine 246428 Pump Assemblies

1. Exact-fit machining. Seats, balls, and O-rings are ground to ±0.001 in, preserving the FT600’s 3,300 psi ceiling and 0.54 gpm flow .
2. Chromex rod durability. Lab tests show 2× the wear resistance of chrome-plated aftermarket rods, even in silica-filled elastomerics.
3. QuickAccess intake valve. Clear clogs without pulling the lower cutting flush time by up to 30 % on rental turnarounds.
4. Warranty integrity. Only OEM parts keep Graco’s 12-month pump, motor, and drive coverage intact.
5. BlueLink traceability. Serialized pumps sync with Graco’s cloud app, logging hours and rebuild history for higher resale value.

Core Specifications of the 246428 Endurance Pump

• Maximum working pressure: 3,300 psi / 228 bar
• Maximum flow rate: 0.54 gpm (2.0 L min-¹) ideal for 515–523 tips on interior latex.
• Rod material: Chromex hardened stainless steel for longer life

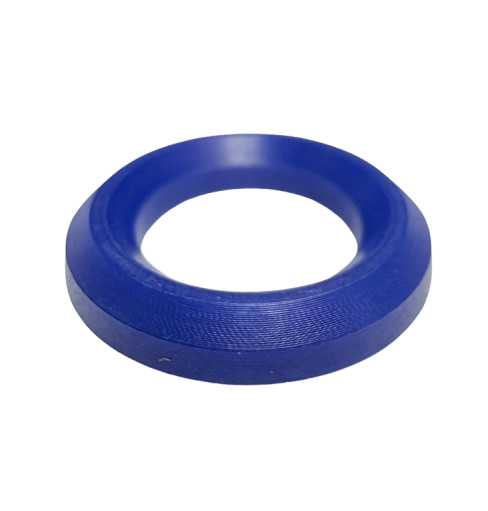

• Packings: V-Max Blue UHMW-PE / leather stack self-lubricating design lowers start-up friction.
• QuikAccess intake: clears debris in seconds without tools.
• Dimensions: 7.8 in height; 2.75 lb net weight; 1.2 in bottom interface diameter

One Pump, Many Sprayers Compatibility Highlights

The 246428 lower isn’t limited to the FT600. Stock one spare and service multiple rigs without tying up cash in duplicate SKUs:

• Ultra Max II 390 | 395 | 490 | 495 | 595—all share the same mounting yoke and rod length.
• LineLazer 3400 stripers—swap in under five minutes with a single wrench.
• GMAX 3400 Standard Series (gas-powered)—electric-to-gas fleet flexibility without stocking two lowers .
• Ultra 495 paint sprayer—identical gland nut and piston dimensions mean the same graco 495 paint sprayer kit rebuilds both.
• Ultra 490 PC Pro—shares seals, seats, and QuikAccess intake; keep one set of graco 490 parts for both units.
• Ultra 395 sprayer—a natural backup; the graco 395 sprayer parts diagram maps shared O-rings and threads.
• Endurance Chromex upgrades for Magnum XR7, LTS 17, and LTS 19 when pros retrofit DIY sprayers for heavier use.

Top Attachments That Unlock the Pump’s Full Potential

1. Graco spray tip guards (RAC X & LP). Keep tips aligned and overspray low even at 3,000 psi.
2. Low-pressure SmartTips. Pair an LP 517 for latex walls or FFLP 210 for cabinet enamel; 55 % less overspray at the same film build.
3. BlueMax II hoses. Ultra-flex, anti-static, and pressure-rated to 4,000 psi no pattern collapse on 150 ft runs.
4. CleanShot shut-off valve. Eliminates spitting on soffits; threads directly into the Contractor gun body.
5. TrueCoat 360 accessories. Keep a handheld on the truck for closets and punch-list touch-ups without swapping hoses.

10,000-Hour Maintenance Roadmap

• Daily: Flush with FastFlush for 45 s, add three drops of TSL on the plunger.
• Every 500 gal: Replace 60-mesh manifold filter; inspect inlet strainer.
• Every 1,000 h: Install a new 246428 pump lower one pin, one jam nut log the swap on your graco pump parts diagram for warranty traceability.
• Every 2 yr: Replace SmartControl sensor and motor fuse; watch our QR-coded video for torque specs.
• Seasonal storage: Run Pump Armor until green fluid appears at the gun; store above 40 °F.

Pro Tips to Maximize Uptime

Color-code parts drawers. Keep graco sprayers parts for 390-595 in blue bins, 7900 graco paint sprayer consumables in red, and graco spray gun parts in yellow for lightning-fast grabs.

Carry a mini torque wrench. Over-tightening the gland nut by just 10 ft-lb can distort the Chromex rod seat and halve packing life.

Use BlueLink hours. Set alerts at 900 h so crews plan a swap, not react to a failure.

Frequently Asked Questions

Can a 246428 pump handle roof elastomeric?

Yes. Use a 0.021-0.023 tip at 2,800 psi; flush immediately with hot water to protect leather packings.

Will it fit my Magnum XR7?

Yes—many pros retrofit the sturdy Chromex lower to XR7s for extended duty cycles.

Does the pump work on post-2019 Ultra 395s?

Yes. Graco retained the rod length and thread pattern through the 2024 production run.

What generator size is safe for an FT600?

A clean 3 kW inverter handles the 12 A soft-start draw; undersize units risk control-board failure.

Boost Productivity Order OEM 246428 Pump Parts Today

Add genuine Graco FT600 Pump Parts Breakdown Electric Airless Sprayer (Pump 246428) components plus compatible seals for graco 495 paint sprayer, 7900 graco paint sprayer, and graco truecoat 360 accessories to your cart now. With rapid cross-platform compatibility across Ultra, Magnum, and GMAX series, SprayersAndParts keeps your crews spraying, earning, and ahead of schedule project after project.
