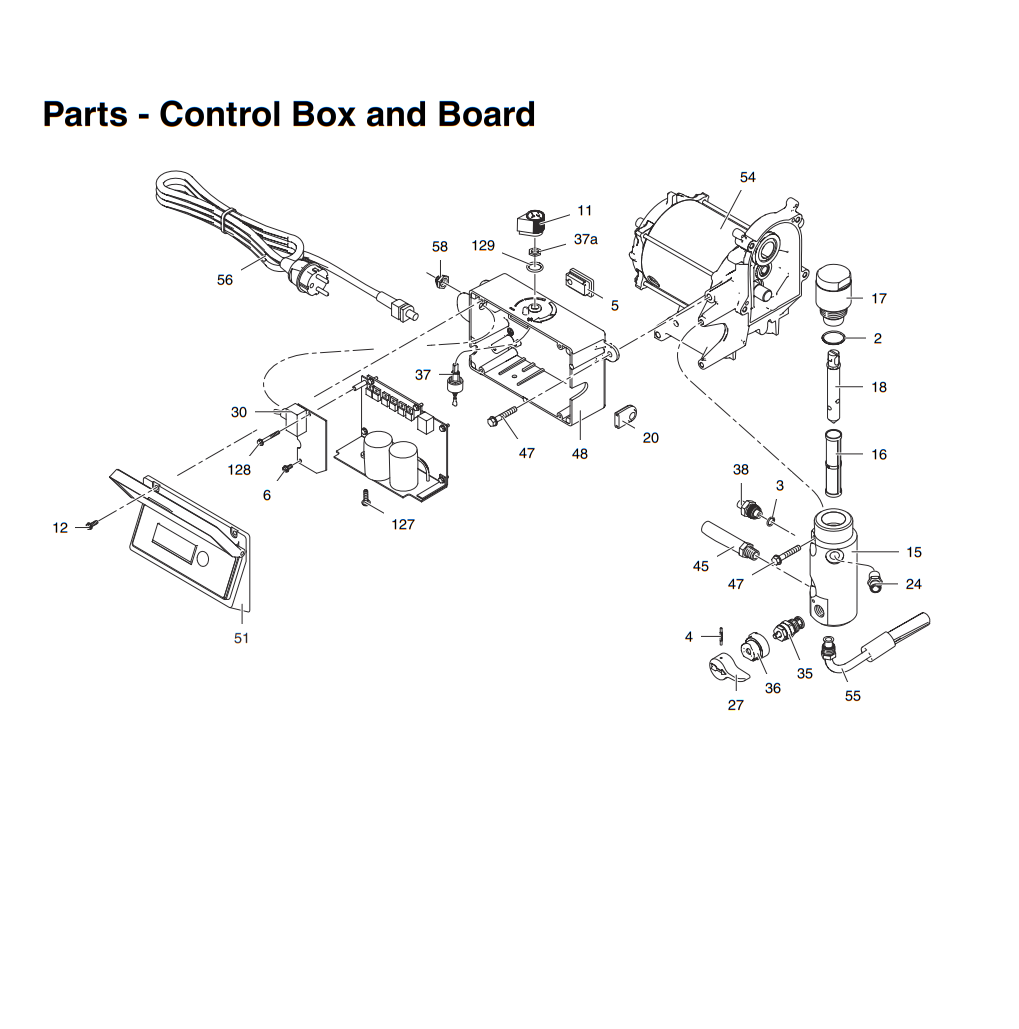

Graco FT600 Electric Airless Sprayer Control Box and Board Breakdown

Power Up Your Projects with Genuine Graco FT600 Electric Airless Sprayer Control Box and Board Breakdown Solutions

FT600 is Graco’s high-output “smart” frame for rental fleets and commercial contractors who need electric convenience with gas-rig throughput. The brain of that frame is FT600 Control Box & Logic Board. One blown MOSFET or burnt relay and a flawless pump suddenly refuses to prime. Because the electronics sit just inches from vibratory shocks and solvent fumes, replacement is inevitable especially on units that cycle between dozens of renters each season. Instead of rolling the dice on used eBay boards, pros and rental managers turn -current OEM boards, plus every graco gasket, harness and grommet that touches them. Paired with an Endurance Chromex pump and RAC X LP tips, a fresh control box puts decades of Graco engineering back in charge of your spray pattern.

Why Choose Genuine Graco FT600 Control-Box Parts?

• Conformal-Coated PCB – factory boards are dipped in acrylic resin that resists overspray solvents and Gulf-Coast humidity. Clone boards skip this step.
• Factory-Matched Firmware – handshake protocols with SmartControl 3.0 and BlueLink are version-locked; aftermarket EEPROMs can “ghost-cycle” pumps at idle.
• Heat-Sink Castings, Not Sheet Aluminum – OEM sinks pull 18 % more heat out of IGBTs, extending life on 105 °F job-site days.
• Internal Surge Suppressor – protects the motor coil when a generator spikes past 260 VAC a leading cause of rental-fleet failures.
• Full Warranty – honoured by Graco.

Key Electrical Specs

Sprayers & Pumps That Share the FT600 Control Platform

• 695 Graco Paint Sprayer – same board, lower current firmware; ours ships backward compatible.
• 7900 Graco Paint Sprayer – control box mounts identically; jumper block sets max current.
• Ultra 395 PC & 495 PC – board swap possible via retrofit bracket, useful when standard PC boards go EOL.
• Magnum Project Painter Plus & Pro X7 – share pump sensors, making FT600 board a popular hot-rod upgrade.
• FieldLazer S100 – sits on same logic bus; perfect when you transition from turf striping to wall repaints.

High-Turn SKUs in the FT600 Breakdown

1. 24Y 480 FT600 Control Board Assy. – conformal-coated PCB, heat-sink, door gasket, generator suppressor plug.
2. 17Y 297 Contractor PC Gun – drop-in for “dumb” FT guns; rebuild in 5 min following our graco paint gun accessories PDF.
3. 240 794 BlueMax II 50 ft Hose – ¼″ ID, SmartControl-rated capacitance.
4. 17G 180 RAC X LP 517 Tip & Guard – sprays latex at 1 400 psi, 18 % less paint lost.
5. Easy-Out 60-mesh and 100-mesh Filters – stake-fail safe; a $6 screen protects a $600 board.

Pro Tips for Electronic Longevity

• Generator Etiquette – always warm-up gensets for 60 s; cold surges kill boards faster than heat.
• Filter Discipline – swapping gun/inline filters weekly keeps debris out of the pressure transducer port.
• Vent Check – once a month blow compressed air through the heat-sink fins; paint dust acts like a blanket on IGBTs.
• Bungee the Cord – wrap the 14-gauge supply around the cage; tugging the board harness can crack solder pads.
• TSL Wet Cup – dry packings cause pump spikes that hammer the logic board relay.

Frequently Asked Questions

Does this board fit a 2012 695?

Yes—same harness; move jumper JP2 to “H” for the larger motor.

Will SmartControl read on Magnum X7 after upgrade?

Absolutely—pressure transducer range is auto-scaling.

Do I need a laptop to flash firmware?

No—board ships pre-flashed; BlueLink app handles future updates via Bluetooth.

Ready to Reboot Your FT600 & Keep Revenue Flowing?

Add an OEM control box, RAC X LP tip pack and BlueMax hose to your cart now. We’ll ship—so tomorrow you’re spraying, not troubleshooting.

Shop FT600 Control-Box Parts →
