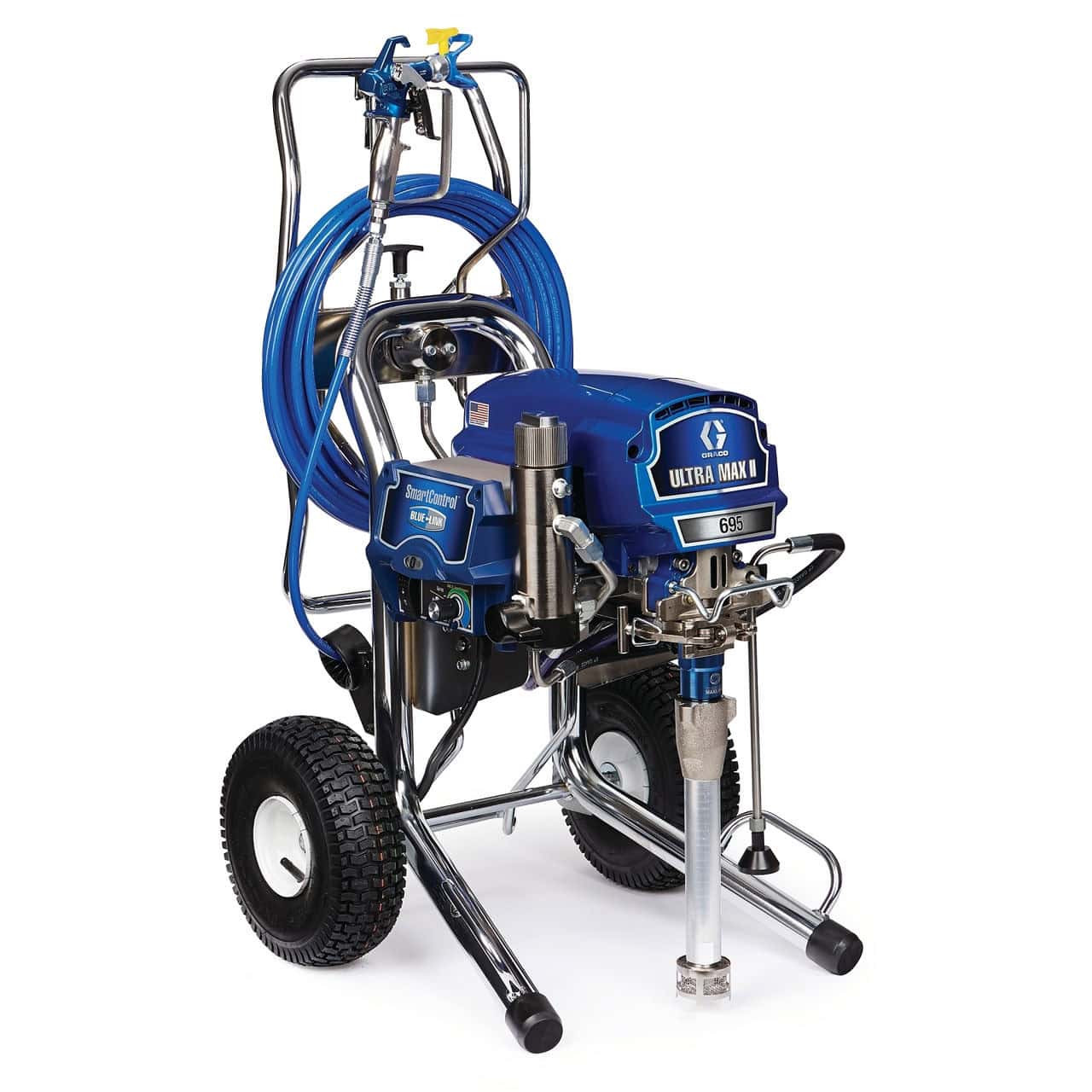

The Graco Ultra Max II 695 is the industry standard for residential and commercial contractors — 2.0 HP brushless DC motor, 0.75 GPM, .031" max tip, 3,300 PSI, and the Endurance Chromex pump rated for 2× longer life. Every OEM replacement part for every 695 generation, shipped same day from Houston, TX.
5th Generation (2019–present) Models 17E572 · 17E574 · 17E577 — the industry standard for residential and commercial contractors
Genuine OEM replacement parts for the Graco Ultra Max II 695 — all generations stocked. Every part ships factory-sealed from Graco's authorized distribution chain.
Like all contractor-class Graco machines, the Ultra Max II 695 has an exposed piston rod and a TSL (Throat Seal Liquid) wet cup. TSL lubricates the Endurance Chromex rod and throat packings on every stroke. Keep the wet cup topped up to the fill line before every job — running dry accelerates rod wear dramatically.
Do not use Pump Armor in the 695's wet cup. Pump Armor is for Magnum homeowner machines (X5, X7, ProX17) with embedded pumps. The 695 requires TSL during operation. Pair TSL with the 248212 packing kit — not the 18B260 used in the Ultra 395.
Graco has produced the 695 across many generations since the mid-1990s. The pump assembly, packing kit, and some valve components differ between generations. Your generation number and model are on the serial tag. Not sure? Call 713-931-4102 — we'll confirm your generation and the right part in under two minutes.
The 695 has been produced across five major generations. The pump assembly, packing kit, and pressure control differ by generation. Use this table to identify yours.
| Generation | Years | Model Numbers | Key Pump Part |
|---|---|---|---|
| 5th Gen ⭐ Current | 2019–Present | 17E572, 17E574, 17E577 | 16Y598 Standard / 17H823 Vortex (ProContractor) |
| 4th Gen | 2016–2018 | 16W892, 16W893, 16W894 | Confirm via diagram |
| 3rd Gen | 2013–2015 | 16N622, 16N623, 16N658 | Confirm via diagram |
| 1st–2nd Gen (Ultra Max II) | 2007–2012 | 248030, 248031, 248036, 248037 | 248212 packing kit |
| Ultra Max 695 (original) | 1995–2000 | 232130, 232131, 232132, 232133 | Confirm via diagram |
Prime with material, switch to SPRAY (no tip), pull trigger 5 seconds then release. Count seconds before motor restarts. 15+ seconds = healthy packings. 10–14 seconds = order a packing kit this week. Under 10 seconds = rebuild now. TSL weeping from the wet cup seal or paint visible at the rod housing = stop immediately — Endurance Chromex rod scoring risk.
| Part # | Description | Fits | Replace When |
|---|---|---|---|
| 248212 | Pump Packing Repair Kit — Ultra Max II 695/795 | Ultra Max II 695/795 · GMax 3900 · GMax II 3900 | Motor cycles <10 sec · TSL weeping · Weak pressure overall |
| 16Y598 | Standard Endurance Chromex Pump Assembly | 5th Gen 695/795 Standard (17E572, 17E574, 17E579) | Cylinder scored · Packings can't restore performance after rebuild |
| 17H823 | Vortex MaxLife Pump Assembly | 5th Gen 695/795 ProContractor (17E577, 17E582) | ProContractor pump failure · 0.95 GPM performance lost |
| 235014 | Prime / Drain Valve Kit | Ultra Max II 695/795/1095 · Ultra 395/495/595 | PRIME draws — SPRAY has no gun pressure |
| TSL (various) | Throat Seal Liquid — 8 oz / 1 qt / 1 gal | All 695 generations · All contractor machines with wet cup | Top up before every job · Replace when discoloured or depleted |
| RAC X 517 | SwitchTip — 10" fan · .017" orifice | All 695 generations and all Graco airless machines | Fan collapses 25% from rated width · Increased paint consumption |
| RAC X 529 | SwitchTip — 10" fan · .029" orifice | Ultra Max II 695 · 795 · 1095 · all machines supporting .029"+ | Fan collapses · For elastomeric and heavy block filler applications |
The Endurance Chromex rod is the 695's most expensive wear component. Chromex rods last twice as long as standard rods — but only when the wet cup is kept full of TSL. A cup that runs dry for even one session allows paint particles to contact the rod directly, scoring the chrome surface. A dry-run rod replacement costs significantly more than a $14 bottle of TSL. Check the wet cup level before every job. Top up with TSL if it's below the fill line.
The 695 uses different parts from every other machine on this site. This table shows which parts are unique and which are shared.
| Feature | Ultra Max II 695 (This Model) | Ultra 395 PC | Magnum ProX17 |
|---|---|---|---|
| Motor | 2.0 HP Brushless DC | ⅞ HP TEFC DC | ¾ HP DC |
| Flow Rate | 0.75 / 0.95 GPM | 0.54 GPM | 0.34 GPM |
| Max PSI | 3,300 | 3,300 | 3,000 |
| Max Tip Size | .031" orifice | .024" | .017" |
| Maintenance Fluid | TSL wet cup | TSL wet cup | Pump Armor |
| Packing Kit | 248212 | 18B260 | 17J874 assembly |
| Prime Valve | 235014 | 235014 | 235014 |
| Pump System | Endurance Chromex / ProConnect 2 | Endurance standard | ProXChange |
| Pressure Control | SmartControl 4.0 + ProGuard | SmartControl 1.0 | Standard dial |
| WatchDog Protection | Yes — auto pump protection | No | No |
| BlueLink Connected | Yes — job & sprayer management | No | No |
| Shared Parts | 235014 drain valve · RAC X spray tips · TSL · gun filters (contractor gun) | ||
Authorized Graco dealer since 2010
All parts come directly from Graco with full manufacturer warranty. We never sell aftermarket substitutes or knock-off components that void your warranty.
Genuine Graco parts in our warehouse ready to ship. Same-day shipping on qualifying orders placed before 1pm CST, Monday–Friday.
Our team has hands-on Graco contractor machine experience across all 695 generations. We'll confirm the right packing kit and pump for your specific model.
Parts for every 695 generation — 5th gen (17E572/574/577), 4th gen (16W892-894), older Ultra Max II, and original Ultra Max 695 variants.
Best prices on genuine Graco contractor parts. Volume discounts for painting contractors running multiple 695 machines.
Interactive exploded-view diagrams for all 695 generations and 50+ other Graco models. Click any component to get the confirmed OEM part number.
Common questions about Graco Ultra Max II 695 parts, generations, and maintenance
