High-Efficiency Electric Double Diaphragm Pump for Industrial Fluid Handling
Compatible Machines
- Compatible with Graco QUANTM Electric Double Diaphragm Pump Systems
- Designed for integration with Graco EODD (Electric Operated Double Diaphragm) platforms
- Suitable for systems requiring high-efficiency electric fluid transfer solutions
- Works with industrial automation and precision fluid handling setups
Product Overview

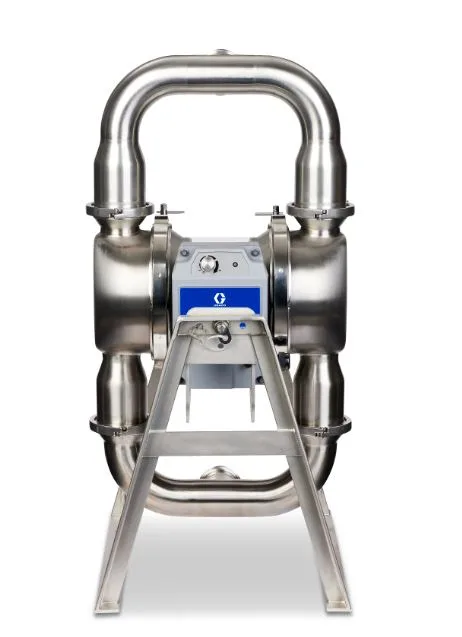

The Graco HE120-0130 Quantm Pump, QHE-3AFF1SSPTEOEPSSA0031 is an advanced electric-operated double diaphragm (EODD) pump engineered to deliver superior energy efficiency and precise fluid control. Built as part of the innovative QUANTM series, this pump eliminates the inefficiencies of traditional pneumatic systems by using a highly optimized electric drive.
Designed for demanding industrial environments, this pump provides consistent flow rates, reduced pulsation, and exceptional durability. Its stainless steel construction and high-performance diaphragm system make it ideal for handling a wide range of fluids, including chemicals, coatings, and other industrial materials.
Key Features
| Technology Type | Electric Double Diaphragm (EODD) |
| Series | QUANTM High-Efficiency Pump Platform |
| Construction | Stainless Steel Fluid Section for durability and corrosion resistance |
| Energy Efficiency | Significantly reduced energy consumption compared to pneumatic pumps |
| Performance | Smooth, low-pulsation flow with precise control |
| Maintenance | Lower maintenance requirements with extended service intervals |
Applications
- Industrial fluid transfer and circulation
- Chemical processing and handling
- Paints, coatings, and surface finishing systems
- Automated manufacturing environments
- Applications requiring precise and energy-efficient pumping
Installation & Usage Tips
- Ensure compatibility with your QUANTM system configuration before installation
- Install in a clean, stable environment to maximize lifespan
- Regularly inspect diaphragms and seals for optimal performance
- Use recommended fluids to maintain efficiency and durability
- Follow manufacturer guidelines for electrical and operational setup
Frequently Asked Questions
The QUANTM pump uses an electric drive instead of compressed air, resulting in significantly higher energy efficiency, reduced operational costs, and more consistent performance.
It is suitable for a wide range of fluids, including chemicals, coatings, and industrial liquids, thanks to its durable stainless steel construction.
No, the electric design reduces wear and tear, resulting in lower maintenance needs compared to traditional pneumatic pumps.
Yes, it is specifically engineered to provide maximum energy savings while maintaining high performance, making it ideal for cost-conscious industrial operations.
