Graco 196866 Carbide Seat

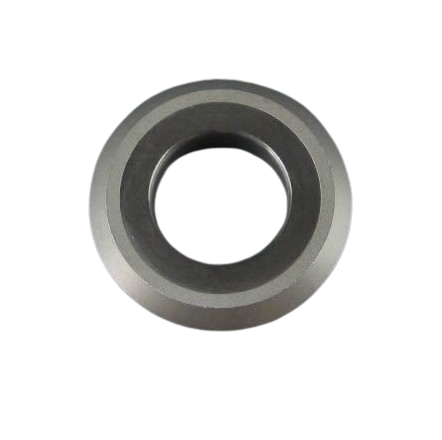

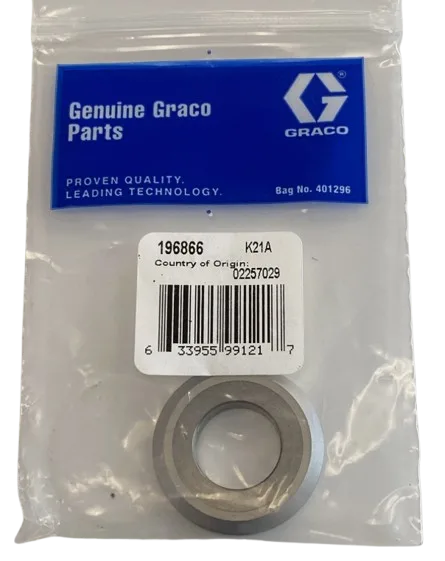

Graco 196866 Carbide Intake Seat (1-1/4") - UMax1595, GMax5900

The Graco 196866 Carbide Intake Seat provides a durable, precision sealing surface for Graco pump intake valves, ensuring consistent pressure and extended component life.

OEM Graco part number 196866
Constructed from hard carbide for superior wear resistance
Fits models like Mark IV, Ultra Max II 1595, and LineLazer III 5900
Ideal for high-pressure, high-duty spraying applications

Retail Price: $109.5

You save: $9.09 (8.30%)

Our Price: $100.41

Based on 0 reviews

Description

Overview & Key Details

Compatible Machines

This list highlights popular Graco units that use this intake seat. Always confirm with your sprayer’s parts manual by model and series year.

Graco Mark IV series
Graco Ultra Max II 1595 (a.k.a. UltraMax 1595)
Graco LineLazer III 5900

What is it?

The Graco 196866 Carbide Intake Seat is a hardened carbide seat that provides a precise, durable sealing surface inside the pump’s intake valve. Its wear-resistant construction helps maintain prime, pressure stability, and overall pump efficiency under high-pressure, high-duty spraying.

Quick Specs

Part Number	196866
Item Name	Carbide Intake Seat
Material	Carbide (engineered for high wear resistance)
Function	Sealing surface for the intake valve; supports consistent check-valve operation
Category	OEM Graco pump valve component
Fitment Notes	Verify by exact sprayer model/series and revision in the owner’s manual

Key Benefits

Durability: Carbide construction resists abrasion and extends service life.
Seal Integrity: Helps maintain prime and steady spray pressure.
OEM Fit: Correct geometry for compatible Graco pumps and valves.

Installation & Care

Depressurize and clean the pump before service; avoid grit on sealing surfaces.
Inspect companion parts (ball/poppet, springs, retainers). Replace worn items together for best results.
Seat squarely and to spec; follow torque and orientation notes in your manual.
After replacement, test for prime/pressure and check for leaks or pulsation.

Frequently Asked Questions

It is an OEM Graco component designed to match factory valve geometry and tolerances for compatible pumps.

Check your model’s parts manual/diagram by series and production year. Look up the intake valve assembly bill of materials and verify the seat part number is 196866.

Difficulty priming, pressure drop, pulsation, or leaks past the intake valve. Inspect the seat and mating ball/poppet for pitting or grooves.

Often yes. If the valve ball/poppet, spring, or retainers show wear, replace them together to restore seal integrity and extend service intervals.

Carbide excels with abrasive or high-solids coatings and heavy-duty use. It offers superior longevity compared to softer materials, helping maintain consistent performance.
