Professional Airless Gun Overview
Compatible Machines

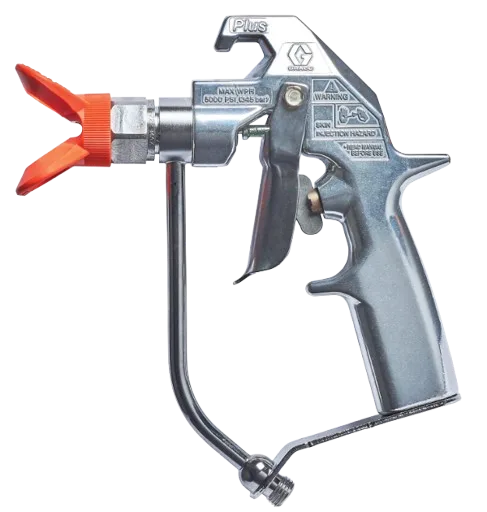

The Graco 235460 Silver Plus Airless Spray Gun connects to most Graco airless sprayers that use a 1/4" NPSM inlet and operate at or below 5000 psi (345 bar).
- Ultra / Ultra Max II series — 395, 495, 595, 695, 795, 1095, 1595
- GMAX II gas sprayers — 3900, 5900, 7900
- DutyMax GH hydraulic series — GH 230, GH 300 (paint applications within rating)
- TexSpray Mark series — Mark IV, Mark V, Mark VII, Mark X (when set for paint spraying)
- GH Big Rig (selected models used for paint at ≤ 5000 psi)
What This Gun Is
The Silver Plus is a rugged, professional airless spray gun with a forged aluminum body and stainless-steel fluid path. It’s built for daily commercial/industrial painting and pairs with a wide range of Graco rigs for high-quality finishes.
Key Features
- High-pressure rating: up to 5000 psi / 345 bar
- 2-finger trigger for control and reduced fatigue
- 1/4" NPSM (male) inlet for broad hose compatibility
- Durable build: forged aluminum body, stainless fluid tube
- Ergonomic handle with comfortable grip for long shifts
- Tip & guard: order to match material and output (sold separately unless specified)
Specifications
| Graco Part # | 235460 |
| Gun Type | Airless spray gun |
| Max Working Pressure | 5000 psi (345 bar) |
| Inlet Thread | 1/4" NPSM (male) |
| Trigger Style | 2-finger |
| Body / Fluid Path | Forged aluminum body / stainless-steel fluid tube |
| Typical Use | Architectural paints, primers, coatings (per tip choice) |
Fitment Guidance
If your sprayer’s maximum working pressure is ≤ 5000 psi and the hose-to-gun connection is 1/4" NPSM, this gun will fit. Always select a spray tip & guard matched to your coating and sprayer output.
What’s Included
- Graco 235460 Silver Plus Airless Spray Gun
- Tip & guard not included unless specified on your order
Frequently Asked Questions
Yes—if your sprayer uses a 1/4" NPSM hose/gun connection and is rated at or below 5000 psi. For uncommon rigs, confirm the hose end and pressure rating in your manual.
The 235460 typically ships as the gun body. Select a RAC tip & guard sized for your coating and target production rate.
Most architectural paints and primers. Choose the correct tip size for your material viscosity and follow the sprayer’s recommended settings.
The Silver Plus in this configuration is a 2-finger trigger for better control and comfort.
Flush with the appropriate solvent after each use, keep the filter and tip clean, and replace wear parts as needed to maintain spray quality and safety.
