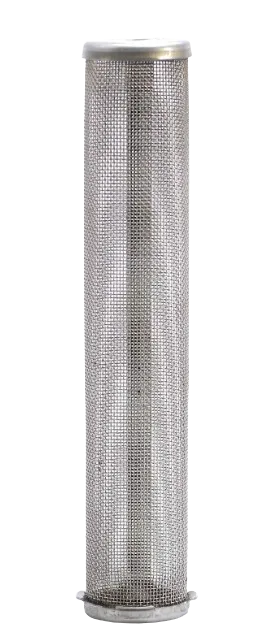

Graco 238436 Q Strainer 30 Mesh Multi-Pack

The Graco 238436 Q Strainer 30 Mesh Multi-Pack helps protect your pump and spray system by filtering out debris before it reaches the hose and gun. Designed for durability and consistent spray performance.

  • Part Number: 238436
  • Mesh Size: 30-mesh outlet filter
  • Compatible With: Graco Xtreme 85 cc, 115 cc, 145 cc pump lowers
  • Purpose: Maintains clean flow and prevents tip clogging
  • Pack Type: Multi-pack for convenient replacements

$17.8
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Quick Overview & Compatibility

The Graco 238436 Q Strainer 30 Mesh Multi-Pack is a fine screen filter used at the pump outlet to capture debris before it reaches your hose, gun, and tip. Ideal for protecting wear parts and improving finish quality.

Compatible Machines

This part is used on Graco industrial pump lower assemblies that specify a 30-mesh “Q-strainer.” If your manual lists 224458 / 238435 / 238436 for the strainer, this pack is compatible.

  • Graco Xtreme Series Pump Lowers – 85 cc, 115 cc, 145 cc (models that call for a 30-mesh Q-strainer)
  • Other Graco industrial/finishing systems that specify a 30-mesh outlet “Q” strainer (check your parts list)

Key Details

Part Number 238436
Description Q Strainer, 30 Mesh, Multi-Pack (outlet / pump-side screen)
Mesh / Filtration 30-mesh screen to capture larger particulates before the hose/gun/tip
Typical Location Outlet (pump lower “Q-strainer” position)
Use Case Industrial finishing, airless paint & coating systems using 30-mesh outlet filtration
Related/Alternate References 224458, 238435, 238436 (verify what your manual specifies)

Benefits

  • Protects pump, hose, gun, and tip from debris-related wear
  • Helps maintain consistent spray pattern and finish quality
  • Multi-pack format keeps spares on hand for quick swaps

Installation & Maintenance Notes

  • Always depressurize your sprayer before servicing the outlet strainer
  • Replace or clean the strainer at regular intervals—more often with heavy/coarse materials
  • Use the same 30-mesh rating specified by your equipment to avoid flow restriction or poor filtration
  • Inspect seats/O-rings in the strainer housing when changing screens

Frequently Asked Questions

Check your sprayer’s parts manual for the outlet/Q-strainer reference. If it lists 224458, 238435, or 238436 at 30-mesh, this pack is a direct fit. When in doubt, match by part number and mesh rating.

Mesh indicates the screen fineness. A 30-mesh screen captures larger particles while allowing typical coating materials to pass, protecting the pump and tip without excessive restriction when specified by the manufacturer.

Frequency depends on material cleanliness and usage. Inspect after each job; replace if the screen is damaged, plugged, or cannot be cleaned effectively. Keeping spares from this multi-pack minimizes downtime.

Only if your equipment manual allows it. Using a finer mesh than specified can restrict flow; using a coarser mesh can let debris through. Always follow the mesh rating recommended for your model.

This SKU denotes a bulk pack of 30-mesh Q-strainers for routine maintenance. Pack counts vary by supplier; refer to the product options on this page before ordering.
