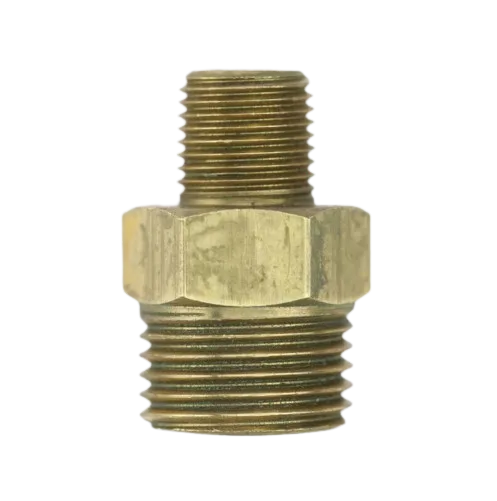

Graco 116150 Drain Tube Connection Fitting

Graco 116150 Drain Tube Connection Fitting

The Graco 116150 Drain Tube Connection Fitting is a genuine OEM adapter/fitting designed to securely connect the drain tube to the manifold filter housing or fluid‑handling system of compatible Graco equipment. It ensures reliable fluid drainage and leak‑free operation during maintenance or fluid discharge. :contentReference[oaicite:4]{index=4}

Compatible Systems / Applications

• Graco spray, pump, coating or fluid‑handling machines with filter housings or manifolds requiring a drain tube — if parts diagram lists 116150 as drain‑tube adapter. :contentReference[oaicite:5]{index=5}
• Systems needing proper drainage or fluid discharge — especially during maintenance, filter replacement, or when emptying fluid housings. :contentReference[oaicite:6]{index=6}

Product Features

• OEM‑grade fitting — ensures correct thread/fit, sealing and leak‑free connection. :contentReference[oaicite:7]{index=7}
• Compact adapter — small size allows fit even in tight or confined assembly spaces. :contentReference[oaicite:8]{index=8}
• Facilitates proper fluid drainage or hose connection — useful for maintenance, cleaning or fluid‑change operations. :contentReference[oaicite:9]{index=9}

Usage & Installation Notes

When installing, ensure the drain tube and manifold/filter housing threads or ports are clean and free of debris. Hand‑tighten the fitting, then check for secure fit and leaks. Replace immediately if any signs of wear, cracking or leaks appear. :contentReference[oaicite:10]{index=10}
