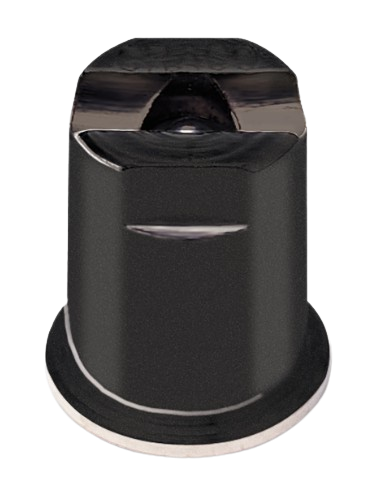

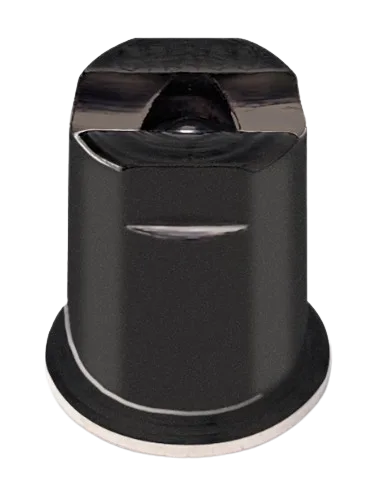

Graco 163414 Fine Finish Flat Tip, 414

The Graco 163414 Fine-Finish Flat Tip 414 delivers smooth, even coatings with precise fan control, ideal for detailed finishing and professional-quality projects.

  • Tip Type: Fine-Finish Flat Tip
  • Orifice Size: 0.014–0.018 inch
  • Fan Width: 10–14 inches
  • Compatible Machines: Ultra Max II 495, Ultra Max II 695, Mark V ProContractor, Mark X ProXChange, GMAX 3950
  • Material: Hardened stainless steel for long-lasting performance

List Price: $66
You save: $22.77 (34.50%)
Sale Price: $43.23
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 163414 Fine-Finish Flat Tip 414: Smooth and Consistent Spray Performance

Compatible Machines

Machine Model
Graco Ultra Max II 495
Graco Ultra Max II 695
Graco Mark V ProContractor
Graco Mark X ProXChange
Graco GMAX 3950

Product Description

The Graco 163414 Fine-Finish Flat Tip 414 is engineered for precision spraying, delivering smooth and uniform coatings. Its fine-finish flat tip ensures accurate fan width and atomization, perfect for cabinets, doors, trim, and other detailed surfaces.

Technical Overview

Tip Type Fine-Finish Flat Tip
Orifice Size 0.014–0.018 inch
Fan Width 10–14 inches
Material Hardened stainless steel
Application Fine-detail architectural and industrial coatings

Installation & Usage Tips

  • Depressurize the sprayer before installing the tip.
  • Securely lock the tip into the manifold or holder.
  • Flush thoroughly after use to maintain performance.
  • Inspect regularly for wear and consistent fan width.

Frequently Asked Questions

Ideal for primers, enamels, stains, latex, and other professional coatings.

Flush with water or compatible solvent and avoid using metal objects inside the orifice.

Yes, it is compatible with all listed machines and supports pressures up to 4000 psi.

With proper cleaning and maintenance, the tip performs consistently over thousands of spray cycles.
