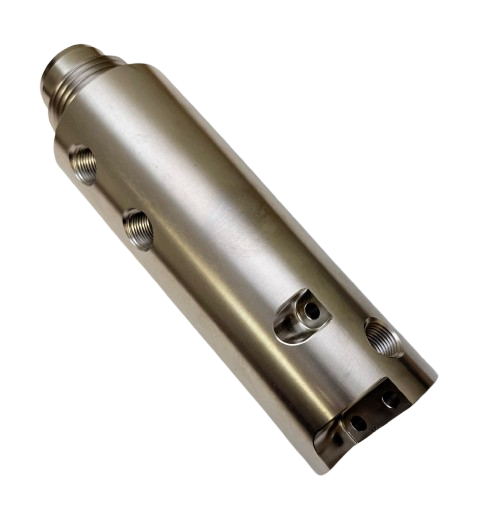

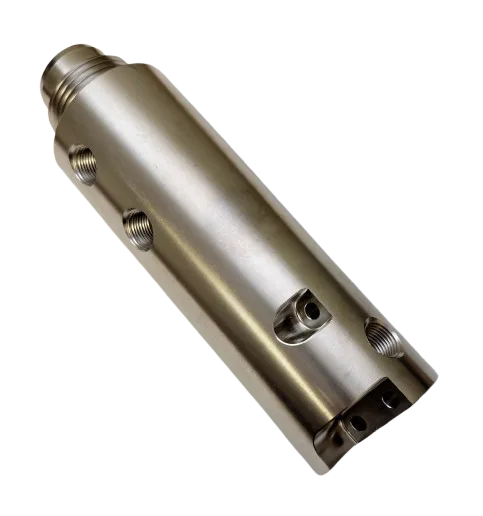

Graco 16T543 Filter Base Manifold
Compatible Machines
This Filter Base Manifold fits the following Graco airless sprayers:
- Graco Ultra 695
- Graco Ultra Max II 695
- Graco Ultra Max II 795
- Graco Ultra Max II 1095
- Graco Ultra Max II 1595
- Graco Mark IV
- Graco Mark V
- Graco Mark X
Product Details
The Graco 16T543 Filter Base Manifold is a key fluid-handling component used on various Ultra and Mark Series sprayers. It holds the filter assembly, helps maintain smooth material flow, and protects the pump by preventing debris from entering the system.
- Ensures efficient paint filtration and smooth spraying performance.
- Reduces pump wear by capturing debris before entering the fluid section.
- Constructed for long service life on professional-grade sprayers.
Frequently Asked Questions
It serves as the mounting base for the filter assembly and ensures proper fluid flow while preventing debris from entering the pump.
Replace it if you notice cracks, leaks, damaged threads, or issues with the filter not seating properly inside the manifold.
It is designed for Ultra and Mark Series units listed above. Always verify the part number with your sprayer model before replacement.
