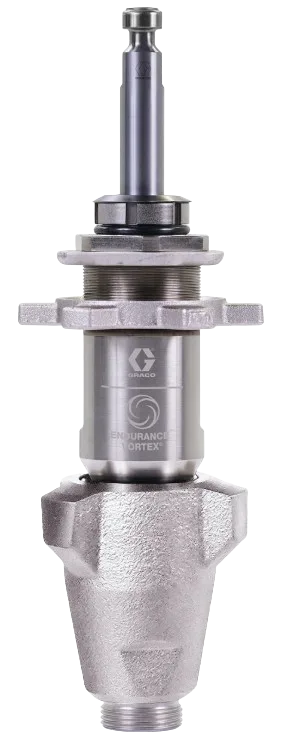

Graco 2001573 Endurance Vortex Piston Pump Ultra 795 XT

Optimize High-Pressure Airless Spraying with Graco Endurance Vortex Piston Pump 795 XT

The Graco 2001573 Endurance Vortex Piston Pump Ultra 795 XT represents a paradigm shift in robust fluid handling for high-demand industrial coatings. Engineered for heavy-duty performance, this airless sprayer pump employs a self-rotating piston mechanism that balances wear across the entire chrome-plated cylinder, delivering consistent volumetric displacement and extending service intervals. By integrating an advanced high-pressure filtration strainer directly into the inlet housing, particulate contamination is minimized while maintaining peak pump efficiency under continuous operation. Designed to withstand pressures up to 3300 psi (23 MPa) and flow rates exceeding 1.5 gpm (5.7 L/min), the Endurance Vortex system sets a new benchmark for professional coatings applications.

• Automatic 360° piston rotation for uniform cylinder wear
• Hard-chrome plating and tungsten carbide components for extended durability
• Integrated high-pressure filtration strainer to prevent clogging

The pump’s material selection centers on corrosion-resistant stainless steel 400 series covers and a precision-ground piston composed of wear-resistant tungsten carbide. When combined with advanced U-cup packings and polymer lower rod seals, the design maximizes seal longevity even under abrasive or solvent-laden fluids. By optimizing piston stroke geometry and valving ports, Graco achieves superior pump efficiency, reducing heat buildup and energy consumption during prolonged cycles. Field technicians familiar with the graco 395 airless paint sprayer series will appreciate the direct-fit engineering that aligns with existing manifold interfaces and mounting flanges.

Performance testing reveals the Endurance Vortex piston extends piston stroke length by up to 80 percent compared to legacy models, enabling higher flow throughput per revolution and a 3× increase in service life before maintenance is required. The pump sustains continuous operation at 3000–3300 psi with negligible pressure drop over tens of thousands of cycles, ensuring consistent atomization characteristics critical for uniform film build in professional coatings. Independent evaluations against competitive pumps demonstrate up to a 15 percent improvement in overall system output. Integration with a graco 490 paint sprayer delivers unmatched reliability in demanding contractor environments.

In specialized engineering applications—such as high-viscosity epoxy floor coatings, corrosion-resistant industrial primers, and intumescent fireproofing systems—the Endurance Vortex pump excels in maintaining fluid integrity and consistent spray patterns under cyclical loading. The optimized inlet manifold geometry paired with integrated high-pressure filtration ensures particulate and debris remain outside of the fluid circuit, safeguarding critical valve assemblies. Variable orifice tip compatibility allows fine-tuning of spray distribution over pressure ranges from 1000 to 3300 psi, while material-neutral seals support both solvent- and water-based formulations. This airless sprayer core seamlessly integrates into existing fluid delivery networks for rapid deployment.

Installation of the Endurance Vortex Piston Pump 795 XT on field-deployed sprayer rigs is streamlined through its modular port design and standard SAE mounting flange. Technicians benefit from color-coded fluid passages and a direct-drive coupling that eliminates ancillary adapters. Routine maintenance intervals extend beyond 200,000 strokes thanks to enhanced seal longevity and precisely machined wear surfaces that resist scoring. The rotating piston mechanism automatically distributes lubrication and reduces torque spikes, notably decreasing downtime. During comparative field audits, contractors operating a graco 695 paint sprayer consistently noted faster rebuild cycles and improved uptime, attributing these gains to the pump’s proven mechanical architecture.

To ensure maximum performance, calibrate the pump output against precision pressure transducers and verify with gravimetric flow measurements. Incorporate fail-safe relief valves set marginally above operating thresholds to prevent hydraulic lock or overpressurization. Periodic inspection of the high-pressure filtration element—designed to capture particles down to 40 microns—preserves component integrity and maintains consistent atomization. Employ torque wrenches when tightening inlet and outlet ports to avoid seal distortion. Graco’s OEM service protocols recommend biannual valve plate resurfacing and packing set replacement to sustain pump efficiency, reduce wear ring abrasion, and preserve the factory tolerances critical for professional coatings quality control.

In summary, the Graco 2001573 Endurance Vortex Piston Pump Ultra 795 XT merges cutting-edge materials science with precision mechanical engineering to deliver unprecedented durability and operational consistency. By harnessing advanced valve designs, hard chromium surfaces, and a dynamic piston rotation system, this unit dramatically improves seal longevity and reduces cyclical stress on internal components. Integrated high-pressure filtration and standardized mounting configurations ensure seamless integration into both new and retrofit airless sprayer platforms. With validated gains in pump efficiency and proven compatibility across professional coatings workflows, this pump stands as the definitive solution for contractors demanding minimal maintenance, unmatched reliability, and maximal throughput.
