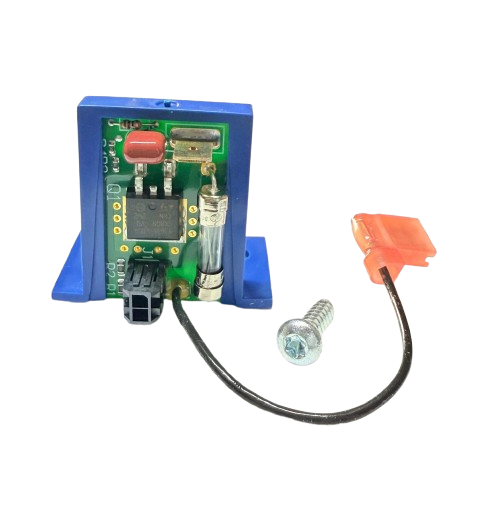

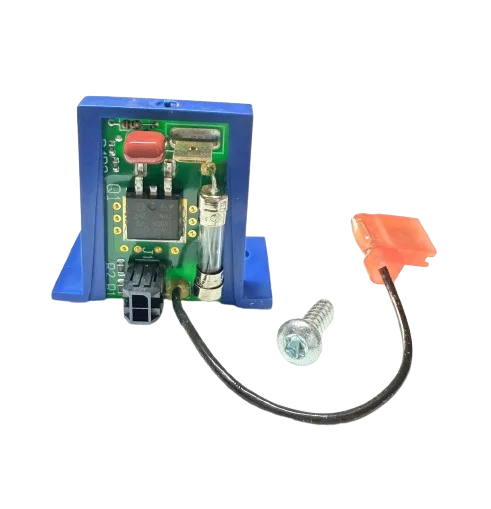

Graco 17L104 Control Board Replacement Repair Kit
5/5
(1 review)
$29.80
In Stock
The Graco 17L104 Control Board Replacement Repair Kit restores full electronic control and performance on select Magnum X-Series sprayers. Ideal for fixing non-responsive or erratic units.
- Fits Magnum X5 (Series E) and Magnum X7 (Series D)
- Includes control board, bracket, screw, and install guide
- OEM replacement ensures reliable motor and pressure control
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Control Board Repair Kit – Compatibility & Specs
Compatible Machines
This kit is designed for the following Graco Magnum series sprayers. Always verify the series letter on your unit’s data label before ordering.
- Graco Magnum X5 (Series E)
- Graco Magnum X7 (Series D)
About the Graco 17L104 Control Board Replacement Repair Kit
The Graco 17L104 Control Board Replacement Repair Kit is a genuine OEM solution to restore electronic control on select Magnum X-Series sprayers. It replaces a failed or intermittent control board and maintains proper motor drive, pressure regulation, and overall system logic so your sprayer runs reliably.
Key Features & Benefits
- OEM board engineered for Magnum X5 (Series E) and Magnum X7 (Series D).
- Stable motor control and pressure consistency after installation.
- Includes mounting hardware and instructions for a clean swap.
- Designed to meet original performance and safety specifications.
What’s Included
| Item | Part/Notes | Purpose |
|---|---|---|
| Control Board Assembly | 17L104 (with integrated fuse) | Restores electronic logic, motor drive, and pressure control |
| Mounting Bracket | Board support bracket | Secures the PCB in the correct position |
| Hardware | Screw(s) | Fastening the bracket/board |
| Instructions | Repair/Install guide | Step-by-step replacement procedure |
Fitment Notes
- Verify your sprayer’s exact model and series letter before purchase.
- If your unit is a different series (e.g., X5 Series D or X7 Series C), this kit may not be compatible.
- Disconnect power and follow ESD safety practices when handling electronics.
Quick Specs
| SKU | 17L104 |
|---|---|
| Category | Electronics / Control Board |
| Compatibility | Magnum X5 (Series E), Magnum X7 (Series D) |
| Includes | Control board, bracket, screw(s), install instructions |
How to Verify Your Sprayer
- Locate the model/serial label on the sprayer frame or motor shroud.
- Confirm the base model (X5 or X7) and series letter (e.g., D, E).
- Match with the compatible list above; if different, consult the parts manual for your exact series.
Frequently Asked Questions
Common symptoms include no power to the motor, erratic pressure control, tripping the internal fuse, or intermittent operation. Verify the power cord, switch, and capacitor first, then inspect the board for burnt components before replacing.
This kit is specified for X5 (Series E) and X7 (Series D). Other series may use different boards. Check your series on the data label and cross-reference the parts manual if uncertain.
Typically just hand tools (screwdriver, nut driver). Disconnect power, remove the housing, note wire locations or take a photo, swap the board and bracket, then reassemble. Follow the included instructions for torque/sequence.
In most cases, no special calibration is required. After installation, prime with water, then test spray and verify smooth pressure adjustment across the range. If pressure is unstable, recheck wiring, filter, and tip size.
Check the power source, on/off switch, motor brushes (if applicable), transducer/pressure control, and the drive system. Also ensure filters, hose, and spray tip are not blocked, which can mimic electronic faults.
5
1 review
1
0%
2
0%
3
0%
4
0%
5
100%
A
Aaron J.
The 17L104 Control Board Replacement Repair Kit (Part #17L104) - the machine was back up and running the same day. Glad we found the exact part number we needed.
