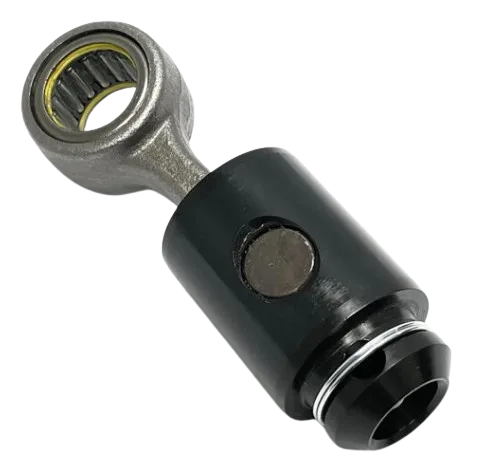

Graco 241008 Connecting Rod Replacement Kit
5/5
(1 review)
$226.01
$262.50
Save 14%
In Stock
The Graco 241008 Connecting Rod Replacement Kit is a genuine OEM part designed to restore smooth pump action and extend the life of your airless sprayer.
- Fits Ultra Max II 695, 795, 1095
- Also used in Ultra Max, Ultimate MX, and GMAX 3900 models
- Ensures proper stroke and consistent pressure
- Durable design for professional daily use
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview: Graco 241008 Connecting Rod Replacement Kit
Compatible Machines
This OEM kit fits a wide range of mid-/large-frame Graco airless sprayers in the 695/795/1095 families and select gas units.
- Ultra Max II 695 (various trims)
- Ultra Max II 795 (various trims)
- Ultra Max II 1095 (various trims)
- Ultra Max 795
- Ultra Max 1095
- Ultimate MX 795
- Ultimate MX 1095
- GMAX 3900 (Hi-Boy)
- Many 695/795/1095 series variants (Standard, ProContractor, IronMan)
Product Description
The Graco 241008 Connecting Rod Replacement Kit is a genuine OEM assembly that converts the sprayer’s rotary drive motion into the linear pumping action. Replacing a worn rod restores smooth pump stroke, reduces vibration, and helps protect mating components such as the piston and bearings.
Key Benefits
- OEM fit and performance for Graco 695/795/1095-series sprayers
- Restores efficient pump stroke and pressure consistency
- Helps extend life of piston, packings, and bearings
- Engineered for heavy-duty, daily professional use
Kit & Part Details
| Part Number | 241008 |
|---|---|
| Item Type | Connecting Rod Assembly (Replacement Kit) |
| Application | Mid/Large-frame Graco airless sprayers (695/795/1095 families) and select gas units (e.g., GMAX 3900) |
| Symptoms of Wear | Knocking noise, irregular stroke, pressure fluctuation, reduced output |
| Recommended Checks | Inspect piston, packings, crank bearings; verify alignment and lubrication during install |
Installation Notes
- Disconnect power / relieve pressure; flush with solvent as required.
- Access the drive housing; remove the old connecting rod per service manual.
- Install 241008; torque fasteners to spec and align the crank/piston interface.
- Cycle at low pressure to confirm smooth stroke; check for abnormal noise or heat.
Always follow your specific model’s service manual and safety procedures.
Frequently Asked Questions
Check your model’s parts manual or the pump/drive section for part number 241008. As a rule, it fits many Ultra Max II 695/795/1095, Ultra Max 795/1095, Ultimate MX 795/1095, and GMAX 3900 variants.
Knocking or clunking from the drive, irregular or short pump stroke, pressure fluctuation, and reduced output are common signs. Inspect the piston, packings, and bearings as well.
Yes—this is a genuine OEM Graco replacement kit designed for proper alignment, stroke length, and longevity.
It’s smart to inspect and replace wear items during the same service—piston/packings, bearings, and seals if needed. Consult your model’s maintenance schedule.
Follow torque specs, verify alignment, and run the sprayer at low pressure to seat the mechanism. Recheck for noise/vibration after the first use.
5
1 review
1
0%
2
0%
3
0%
4
0%
5
100%
J
Jerry T.
Replaced the OEM part with this one and this 241008 Connecting Rod Replacement Kit and shipping was quick and the part was packaged well. Part #241008 matched exactly. Customer support was helpful when I had questions about fit.
