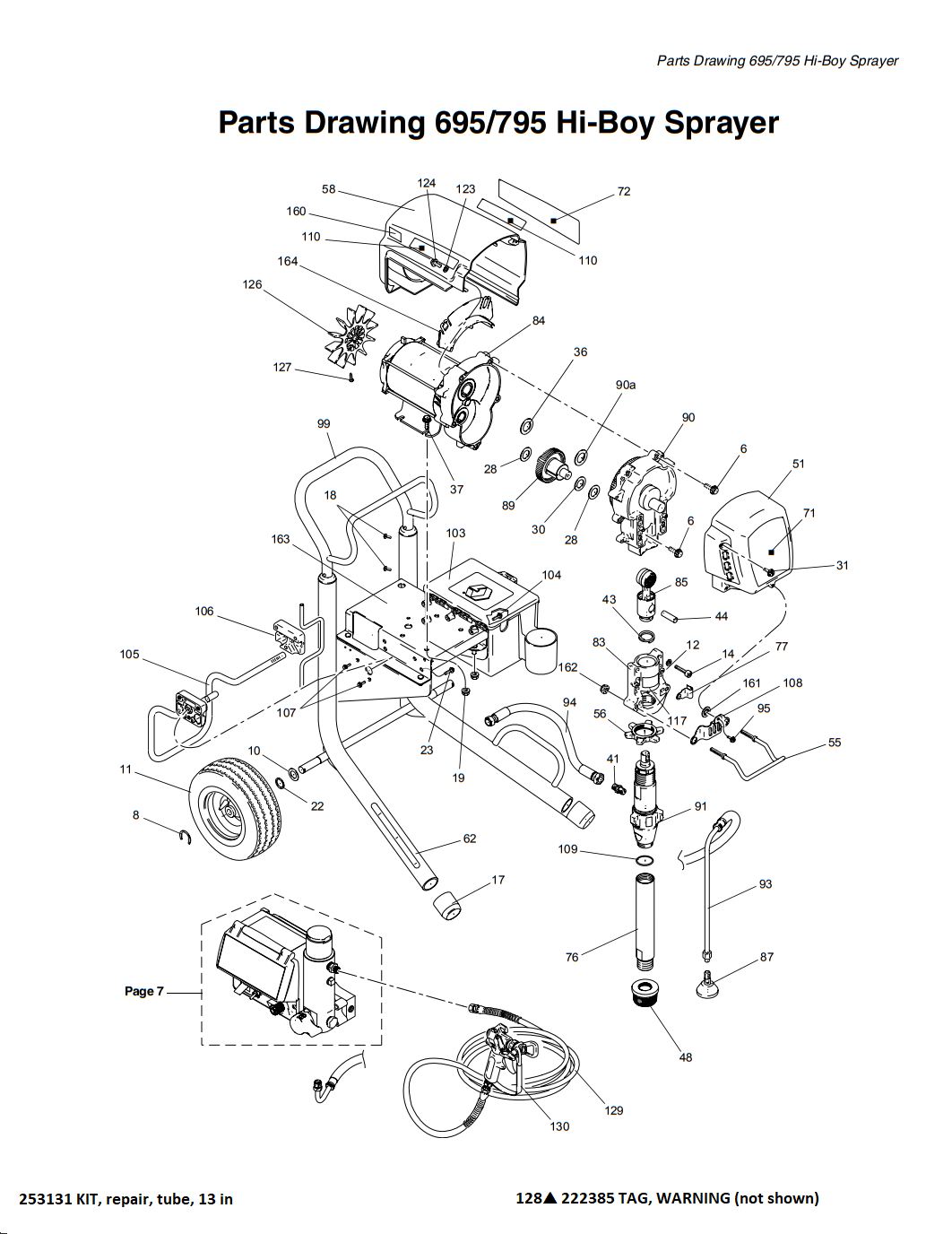

Graco Ultra Max II 795 Hi-Boy Sprayer Parts List

Graco 253132 Tube Repair Kit 11 Inch

Item No: -

Part Number: 253132

UPC Number: 633955139916

$26.69

QTY:

Graco 15C753 Torx Hex Washer Head Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

The Graco 15C753 Torx Hex Washer Head Machine Screw is a durable fastener with a Torx drive and hex ...

$6.50

QTY:

Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...

$6.30

QTY:

Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77

QTY:

Graco 119420 Pneumatic Wheel

Item No: 11

Part Number: 119420

UPC Number: 633955036376

The Graco 119420 Pneumatic Wheel is a durable, air-filled replacement wheel designed for Graco Hi-Bo...

Retail Price: $80.25

You save: $6.65 (8.29%)

Our Price: $73.60

QTY:

Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

Maintain secure fastener connections with the Graco 106115 Hi‑Collar Lock Spring Washer, designed ...

$8.74

QTY:

Graco 107210 Screw

Item No: 14

Part Number: 107210

UPC Number: 633955258754

The Graco 107210 Screw is a high-strength socket head screw designed for secure fastening of pump an...

$8.86

QTY:

Graco 15C871 Leg Cap

Item No: 17

Part Number: 15C871

UPC Number: 633955031371

Protect your sprayer’s legs and ensure stable operation with this durable OEM leg cap. Fits 650...

$6.30

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 18

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

Graco 112746 Hexagonal Nut

Item No: 19

Part Number: 112746

UPC Number: 633955029361

The Graco 112746 Hexagonal Nut is a durable fastening component designed to secure assemblies and ma...

$6.30

QTY:

Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66

QTY:

Graco 110963 Cap Screw

Item No: 23

Part Number: 110963

UPC Number: 633955119956

The **Graco 110963 Cap Screw** is a genuine OEM fastener used for secure assembly of hose reels, whe...

$8.74

QTY:

Graco 112827 Snap Button

Item No: 28

Part Number: 112827

UPC Number: 633955658240

The Graco 112827 Snap Button provides secure and reliable panel and frame fastening for select Graco...

$6.30

QTY:

Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

The Graco 114699 Thrust Washer stabilizes rotating parts in Graco airless sprayers and proportioners...

$6.30

QTY:

Graco 118444 Hex Washer Head Machine Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

Secure critical components in select Graco sprayers with the 118444 Hex Washer Head Machine Screw, e...

$6.30

QTY:

Graco 116191 Thrust Washer

Item No: 36

Part Number: 116191

UPC Number: 633955980389

The Graco 116191 Thrust Washer ensures proper alignment and smooth operation of the pump assembly in...

$6.30

QTY:

Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

The Graco 100057 Screw is a genuine OEM hex head cap screw designed for secure fastening in Graco ai...

$8.74

QTY:

Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 41

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting ensures secure, leak-free connections in pumps and manifolds, maintainin...

$24.66

QTY:

Graco 176817 Retaining Spring

Item No: 43

Part Number: 176817

UPC Number: 633955053977

The Graco 176817 Retaining Spring securely holds the pump linkage pin in place, ensuring consistent ...

$7.51

QTY:

Graco 176818 Sprayer Straight Pin

Item No: 44

Part Number: 176818

UPC Number: 633955509962

The Graco 176818 Straight Pin is a genuine OEM attach pin designed to secure the piston or connectin...

$15.47

QTY:

Graco 189920 Inlet Strainer/Filter (Threaded)

Item No: 48

Part Number: 189920

UPC Number: 633955094086

Prevent debris from entering your pump and ensure smooth operation with the Graco 189920 Inlet Strai...

Retail Price: $32.20

You save: $12.24 (38.01%)

Our Price: $19.96

QTY:

Graco 287291 Drive Cover Repair Kit

Item No: 51

Part Number: 287291

UPC Number: 633955040632

Retail Price: $95.75

You save: $7.94 (8.29%)

Our Price: $87.81

QTY:

Graco 16C457 Pail Hanger

Item No: 55

Part Number: 16C457

UPC Number: 633955570030

The Graco 16C457 Pail Hanger is a genuine OEM part designed to securely hold your paint pail in plac...

Retail Price: $34.00

You save: $0.68 (2.00%)

Our Price: $33.32

QTY:

Graco 287282 Motor Shield Repair Kit

Item No: 58

Part Number: 287282

UPC Number: 633955035331

Retail Price: $83.25

You save: $6.9 (8.29%)

Our Price: $76.35

QTY:

Graco 248214 Intake Tube Repair Kit

Item No: 76

Part Number: 248214

UPC Number: 633955047457

Retail Price: $62.75

You save: $4.76 (7.59%)

Our Price: $57.99

QTY:

Graco 278204 Drain Line Clip

Item No: 77

Part Number: 278204

UPC Number: 633955570047

The Graco 278204 Drain Line Clip securely holds the drain or prime hose in place, ensuring safe rout...

$14.52

QTY:

Graco 240523 Bearing Housing Replacement Kit

Item No: 83

Part Number: 240523

UPC Number: 633955823778

Retail Price: $150.50

You save: $15.65 (10.40%)

Our Price: $134.85

QTY:

Graco 257186 Motor Repair Kit C104

Item No: 84

Part Number: 257186

UPC Number: 633955473256

Retail Price: $1525.00

You save: $244 (16.00%)

Our Price: $1281.00

QTY:

Graco 241008 Connecting Rod Replacement Kit

Item No: 85

Part Number: 241008

UPC Number: 633955866188

The Graco 241008 Connecting Rod Replacement Kit is a genuine OEM part designed to restore smooth pum...

Retail Price: $251.00

You save: $31.38 (12.50%)

Our Price: $219.62

QTY:

Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30

QTY:

Graco 287289 Gear Repair Kit for E20/EXP1 695/795

Item No: 89

Part Number: 287289

UPC Number: 633955039841

Graco 287289 Gear Repair Kit for 695/795 a OEM Replacement Graco 287289 Gear Repair Kit is a genuin...

Retail Price: $248.00

You save: $31 (12.50%)

Our Price: $217.00

QTY:

Graco 287284 Drive Housing Repair Kit

Item No: 90

Part Number: 287284

UPC Number: 633955036949

Retail Price: $400.00

You save: $55.6 (13.90%)

Our Price: $344.40

QTY:

Graco 107089 Race Thrust Washer

Item No: 90a

Part Number: 107089

UPC Number: 633955622951

Ensure smooth operation and reduce wear in your Graco airless sprayer with this precision-engineered...

$9.71

QTY:

Graco 248204 Pump Assembly for 695 and 795

Item No: 91

Part Number: 248204

UPC Number: 633955047310

The Graco 248204 Pump Assembly is a complete OEM fluid section designed for Ultra Max II and Ultimat...

Retail Price: $741.00

You save: $118.56 (16.00%)

Our Price: $622.44

QTY:

Graco 244240 Return Hose Assembly

Item No: 93

Part Number: 244240

UPC Number: 633955963597

Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...

Retail Price: $70.00

You save: $5.32 (7.60%)

Our Price: $64.68

QTY:

Graco 15D049 Coupled 1/4 in x 15-3/4 in Fluid Hose

Item No: 94

Part Number: 15D049

UPC Number: 633955044401

High Performance Graco 15D049 Coupled Hose for Industrial Spraying The Graco 15D049 Coupled Hose is...

Retail Price: $41.80

You save: $0.84 (2.01%)

Our Price: $40.96

QTY:

Graco 114000 Hex Washer Head Machine Screw

Item No: 95

Part Number: 114000

UPC Number: 633955140677

The Graco 114000 Hex Washer Head Machine Screw is a durable OEM fastener used to secure control and ...

$6.30

QTY:

Graco 287489 Hi-Cart Handle Assembly

Item No: 99

Part Number: 287489

UPC Number: 633955195936

Genuine Graco replacement part designed for easy maneuvering of Hi-Cart airless sprayers. Durable an...

Retail Price: $163.50

You save: $17 (10.40%)

Our Price: $146.50

QTY:

Graco 287253 Tool Box Accessory Kit

Item No: 103

Part Number: 287253

UPC Number: 633955046085

Retail Price: $46.70

You save: $2.57 (5.50%)

Our Price: $44.13

QTY:

Graco 118852 Thread Forming Hex Washer Head Screw

Item No: 104

Part Number: 118852

UPC Number: 633955030367

The Graco 118852 Screw is designed for high-pressure sprayer systems, ensuring secure fastening and ...

$6.30

QTY:

Graco 15D281 Cart Stand Hanger

Item No: 105

Part Number: 15D281

UPC Number: 633955031722

The Graco 15D281 Cart Stand Hanger provides sturdy support for Graco sprayer carts and stands, ensur...

$27.71

QTY:

Graco 15C982 Cart Camera

Item No: 106

Part Number: 15C982

UPC Number: 633955031524

The Graco 15C982 Cart Camera is an OEM mechanical cam component for Graco cart-style sprayers, ensur...

$11.37

QTY:

Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 107

Part Number: 114531

UPC Number: 633955801691

A durable OEM fastening screw for critical Graco assemblies: Part # 114531 – Hex‑Head Machi...

$6.30

QTY:

Graco 15C859 Airless Paint Sprayer Pump Rod Shield

Item No: 108

Part Number: 15C859

UPC Number: 633955038578

The Graco 15C859 Pump Rod Shield protects the connecting rod of airless sprayers from debris, paint ...

$8.92

QTY:

Graco 118494 Airless Sprayer Suction Hose Packing O-Ring

Item No: 109

Part Number: 118494

UPC Number: 633955032675

The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...

$6.30

QTY:

Graco 16D585 Ultra Premium Sides Label

Item No: 110

Part Number: 16D585

UPC Number: 633955623231

$9.35

QTY:

Graco 187436 Torque Label

Item No: 117

Part Number: 187436

UPC Number: 633955081246

$9.35

QTY:

Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$6.30

QTY:

Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

The Graco 119250 Shoulder Screw ensures precise alignment and reliable performance in Graco spray sy...

$6.30

QTY:

Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...

Retail Price: $35.00

You save: $0.7 (2.00%)

Our Price: $34.30

QTY:

Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$4.41

QTY:

Graco 222385 Med Alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00

QTY:

Graco 240794 BlueMax II Airless Hose

Item No: 129

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

Retail Price: $94.75

You save: $22.44 (23.68%)

Our Price: $72.31

QTY:

Graco 15Y118 Made in the USA Label

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

A Genuine OEM Replacement Part Graco 15Y118 Made in the USA Label is an authentic OEM decal used to...

$9.35

QTY:

Graco 124172 Nylon Retaining Washer 10-32

Item No: 161

Part Number: 124172

UPC Number: 633955591059

The Graco 124172 Retaining Nylon Washer ensures secure component placement and prevents leaks in Gra...

$6.30

QTY:

Graco 278075 Wire Bracket

Item No: 164

Part Number: 278075

UPC Number: 633955473188

$11.19

QTY:

Graco 24P666 Frame

Part Number: 24P666

UPC Number: 633955378728

Retail Price: $512.00

You save: $74.75 (14.60%)

Our Price: $437.25

QTY:

Keep Your Gear Running with Authentic Graco Ultra Max II 795 Hi-Boy Sprayer Parts List Replacements

When job-site uptime is non-negotiable, professionals rely on genuine Graco Ultra Max II 795 Hi-Boy Sprayer Parts List replacements from Sprayersandparts.com. Designed for contractors who demand precision, durability, and speed, our curated selection of OEM parts ensures your equipment keeps performing at its peak, day after day.

From major overhauls to minor fixes, we’ve got your back. Whether you’re troubleshooting a slow spray issue or replacing a worn-out gasket, our fast-shipping inventory covers everything from the Magnum LTS 17 paint sprayer manual to intricate Graco spray gun parts diagrams. That means one source, zero guesswork.

Why Choose Genuine Graco Ultra Max II 795 Hi-Boy Sprayer Parts?

1. Built to Exact Tolerances
OEM parts are manufactured to Graco's original specifications. That means seamless fit, reliable function, and optimized spray performance without the guesswork of knockoff alternatives.

2. Tested for Compatibility and Pressure Ratings
Graco parts undergo extensive chemical compatibility and high-pressure testing, ensuring every gasket, seal, and valve can withstand real-world demands. Copycat parts often fail under pressure literally.

3. Backed by Warranties
Every part is backed by Graco’s warranty at Sprayersandparts.com. You don’t just get a part you get peace of mind.

Key Features & Specs

At Sprayersandparts.com, every product listing includes:

Precise dimensions and material specs
Maximum pressure ratings
Interchangeability across models

Whether you’re installing Graco cordless paint sprayer parts or referencing parts used in Graco 7900 sprayers, you’ll have the confidence to pick and install with ease.

Popular components in our Ultra Max II 795 Hi-Boy inventory include:

Replacement pumps and motor assemblies
Piston repair kits and seal kits
Suction and intake tubes
Manifold filters and spray tips
Control boards and pressure sensors
Graco hoses, gun extensions, and fittings

Pro Tips for Long-Term Reliability

Log Your Service Intervals
Track usage and schedule preventive maintenance before wear leads to failure. Replacing parts proactively extends equipment life and protects your project timelines.
Pair Seal Kits with Fresh Lubricant
Never reuse old lubricants when installing new seal kits. Fresh lubricant prevents premature wear and ensures smoother operation.
Stock Critical Spares
Downtime is expensive. Stock spares like intake valves, O-rings, and Graco handheld sprayers so you’re ready when the unexpected happens.
Organize with Color-Coded Bins
Speed up maintenance with labeled, color-coded bins. Keep similar parts like Graco smoothing blades in Houston, Texas and Graco 395 sprayer parts separated for quick identification.

Ready to Boost Productivity?

Don’t wait for downtime to derail your next job. Equip your crew with genuine Graco Ultra Max II 795 Hi-Boy Sprayer Parts List replacements today. From trigger to tip, each part is engineered to deliver the performance you need with the reliability you trust.

Browse parts like:

Spray gun handles
Tip guards
Motor brushes
Electronic pressure controls
Prime valves

Add the essentials to your cart and feel the difference tomorrow.

Final Word: Performance You Can Count On

From the moment your sprayer starts until the last drop of paint is sprayed, Graco Ultra Max II 795 Hi-Boy parts from Sprayersandparts.com ensure you stay job-ready and project-focused.

Explore our catalog, take advantage of pro-level support, and enjoy fast, accurate fulfillment backed by unmatched Graco expertise. Keep your gear in top form because when quality matters, only the real deal will do.

Order now and experience the difference on your next job site.

Graco Ultra Max II 795 Hi-Boy Sprayer Parts List

Keep Your Gear Running with Authentic Graco Ultra Max II 795 Hi-Boy Sprayer Parts List Replacements

Why Choose Genuine Graco Ultra Max II 795 Hi-Boy Sprayer Parts?

Key Features & Specs

Pro Tips for Long-Term Reliability

Ready to Boost Productivity?

Final Word: Performance You Can Count On

ADDRESS

INFORMATION

YOUR ACCOUNT
