Graco 15C859 Airless Paint Sprayer Pump Rod Shield

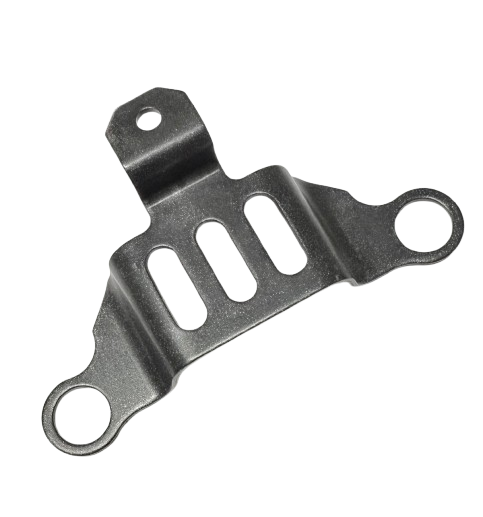

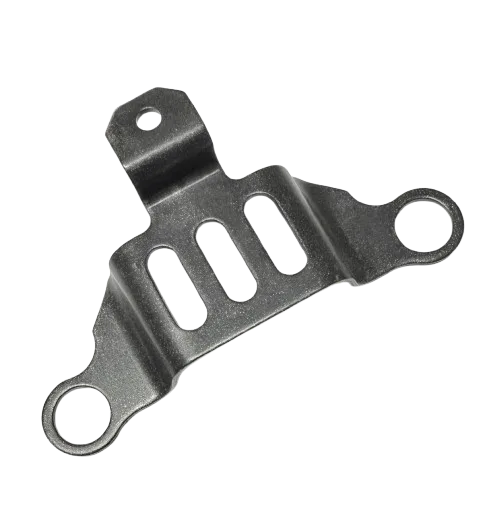

The Graco 15C859 Pump Rod Shield protects the connecting rod of airless sprayers from debris, paint splatter, and wear, ensuring smooth pump operation.

Fits Ultra Max II models (695, 795, 1095)
Durable construction for long-lasting protection
Prevents rod abrasion and alignment issues
Easy to install and replace

$8.92

Based on 0 reviews

Description

Graco 15C859 Pump Rod Shield – In‑Depth Overview

Purpose & Function

The Graco 15C859 Pump Rod Shield is a protective guard designed to encase the pump connecting rod on Graco airless sprayers. It helps shield the rod from debris, splatter, and mechanical wear, ensuring smoother, more reliable pump performance over time.

Key Features & Benefits

Prevents build-up of paint, dust, and other contaminants around the pump rod
Reduces risk of rod damage caused by accidental contact or abrasion
Helps maintain alignment and stability of the connecting rod during operation
OEM construction to match Graco’s standards for fit and durability

Technical Specifications

Specification	Details
Part Number	15C859
Description	Shield / Cover for Pump Rod
Typical Use	Airless sprayers (e.g., Ultra Max series) to protect the rod assembly
Material	Durable polymer or plastic suitable for jobsite environments
Weight	Approx. 0.105 lb (per supplier specification)

Applications & Use Cases

Used on Graco Ultra Max and similar high‑pressure airless sprayers to protect the pump rod
Helps prolong pump life by reducing abrasive wear on the connecting rod
Prevents paint and other materials from splashing onto the rod during operation
Improves safety by covering a moving part that might otherwise be exposed

Maintenance & Best Practices

Inspect the shield periodically for cracks or damage during routine maintenance
Clean off any paint or debris buildup to avoid interference with rod movement
Make sure the shield is correctly seated and secured to avoid rattling or loosening
Replace the shield if it becomes brittle or fails to protect the rod effectively

Frequently Asked Questions

It protects the connecting rod from paint splatter, dirt, and abrasion, helping to preserve the rod’s surface and maintain smooth pump operation.

Yes — this part is listed in Graco’s Ultra Max II parts manual, demonstrating compatibility with models like the 695, 795, and 1095. :contentReference[oaicite:0]{index=0}

The shield typically slides over the connecting rod and is secured in place; remove the old shield carefully, clean the rod, and then fit the new shield firmly to avoid misalignment.
