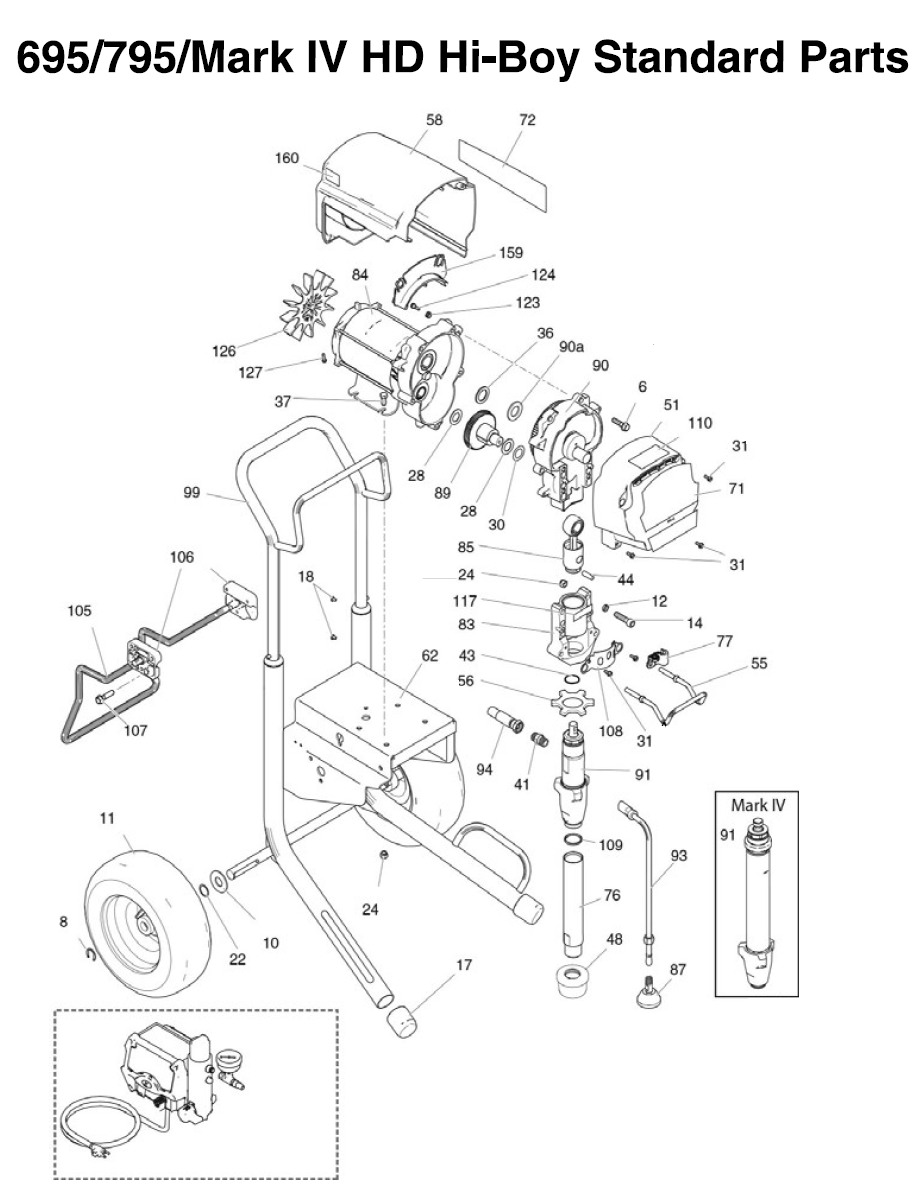

Graco 795 Hi-Boy Standard Parts List

Graco 253132 Tube Repair Kit 11 Inch

Item No: -

Part Number: 253132

UPC Number: 633955139916

$26.69

QTY:

Graco 15C753 Torx Hex Washer Head Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

The Graco 15C753 Torx Hex Washer Head Machine Screw is a durable fastener with a Torx drive and hex ...

$6.50

QTY:

Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...

$6.30

QTY:

Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77

QTY:

Graco 119420 Pneumatic Wheel

Item No: 11

Part Number: 119420

UPC Number: 633955036376

The Graco 119420 Pneumatic Wheel is a durable, air-filled replacement wheel designed for Graco Hi-Bo...

Retail Price: $80.25

You save: $6.65 (8.29%)

Our Price: $73.60

QTY:

Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

Maintain secure fastener connections with the Graco 106115 Hi‑Collar Lock Spring Washer, designed ...

$8.74

QTY:

Graco 17E788 Cap Screw

Item No: 14

Part Number: 17E788

UPC Number: 755652813491

$6.30

QTY:

Graco 15C871 Leg Cap

Item No: 17

Part Number: 15C871

UPC Number: 633955031371

Protect your sprayer’s legs and ensure stable operation with this durable OEM leg cap. Fits 650...

$6.30

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 18

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

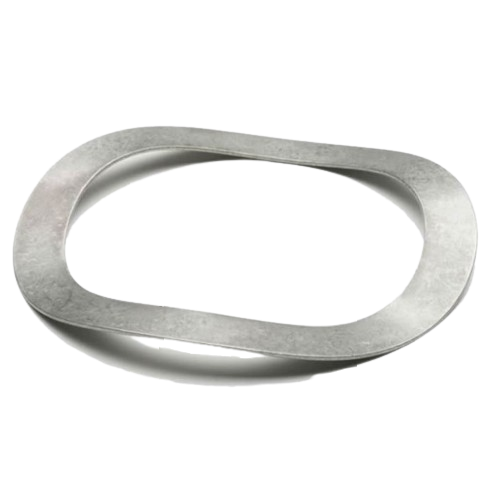

Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66

QTY:

Graco 111040 Nylock lock nut

Item No: 24

Part Number: 111040

UPC Number: 633955382473

The Graco 111040 Nylock Lock Nut is a genuine OEM fastener designed to prevent loosening from vibrat...

$9.79

QTY:

Graco 114672 Thrust Washer

Item No: 28

Part Number: 114672

UPC Number: 633955886070

The Graco 114672 Thrust Washer ensures smooth rotation and stabilizes critical components in Graco a...

$6.30

QTY:

Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

The Graco 114699 Thrust Washer stabilizes rotating parts in Graco airless sprayers and proportioners...

$6.30

QTY:

Graco 118444 Hex Washer Head Machine Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

Secure critical components in select Graco sprayers with the 118444 Hex Washer Head Machine Screw, e...

$6.30

QTY:

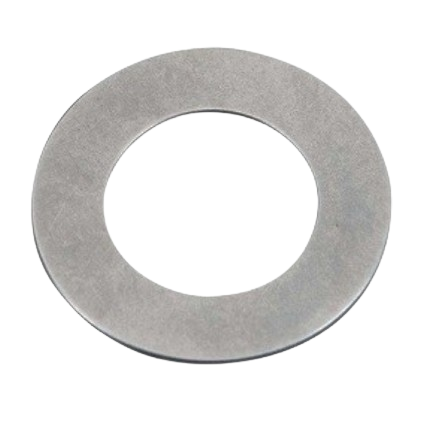

Graco 116191 Thrust Washer

Item No: 36

Part Number: 116191

UPC Number: 633955980389

The Graco 116191 Thrust Washer ensures proper alignment and smooth operation of the pump assembly in...

$6.30

QTY:

Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

The Graco 100057 Screw is a genuine OEM hex head cap screw designed for secure fastening in Graco ai...

$8.74

QTY:

Graco 196178 Nipple Adapter

Item No: 43

Part Number: 196178

UPC Number: 633955961678

The Graco 196178 Nipple Adapter is an OEM connector designed for reliable fluid connections in high-...

$9.04

QTY:

Graco 176817 Retaining Spring

Item No: 41

Part Number: 176817

UPC Number: 633955053977

The Graco 176817 Retaining Spring securely holds the pump linkage pin in place, ensuring consistent ...

$7.51

QTY:

Graco 176818 Sprayer Straight Pin

Item No: 44

Part Number: 176818

UPC Number: 633955509962

The Graco 176818 Straight Pin is a genuine OEM attach pin designed to secure the piston or connectin...

$15.47

QTY:

Graco 189920 Inlet Strainer/Filter (Threaded)

Item No: 48

Part Number: 189920

UPC Number: 633955094086

Prevent debris from entering your pump and ensure smooth operation with the Graco 189920 Inlet Strai...

Retail Price: $32.20

You save: $12.24 (38.01%)

Our Price: $19.96

QTY:

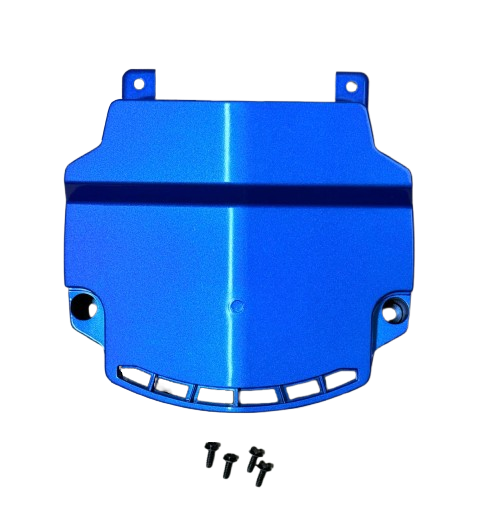

Graco 24V023 Cover Repair Kit

Item No: 51

Part Number: 24V023

UPC Number: 633955000766

Graco 24V023 Cover Repair Kit a OEM Front Cover for 695/795 Graco 24V023 Cover Repair Kit is a genu...

Retail Price: $41.20

You save: $0.82 (1.99%)

Our Price: $40.38

QTY:

Graco 16C457 Pail Hanger

Item No: 55

Part Number: 16C457

UPC Number: 633955570030

The Graco 16C457 Pail Hanger is a genuine OEM part designed to securely hold your paint pail in plac...

Retail Price: $34.00

You save: $0.68 (2.00%)

Our Price: $33.32

QTY:

Graco 17A257 Pump Jam Nut

Item No: 56

Part Number: 17A257

UPC Number: 633955483965

The Graco 17A257 Pump Jam Nut is a genuine OEM part that secures components in Graco pump assemblies...

$18.12

QTY:

Graco 287282 Motor Shield Repair Kit

Item No: 58

Part Number: 287282

UPC Number: 633955035331

Retail Price: $83.25

You save: $6.9 (8.29%)

Our Price: $76.35

QTY:

Graco 24Y429 Frame

Item No: 62

Part Number: 24Y429

UPC Number: 755652285021

Graco 24Y429 Frame, 695/795 Hi Boy

Retail Price: $496.00

You save: $72.42 (14.60%)

Our Price: $423.58

QTY:

Graco 17E738 Front Label

Item No: 71

Part Number: 17E738

UPC Number: 755652834267

Graco 17E738 Front Label

$17.03

QTY:

Graco 17E731 Ultramax II 795 Side Label

Item No: 72

Part Number: 17E731

UPC Number: 755652834236

Graco 17E731 Side Label Supersede Graco 15D069

$17.03

QTY:

Graco 248214 Intake Tube Repair Kit

Item No: 76

Part Number: 248214

UPC Number: 633955047457

Retail Price: $62.75

You save: $4.76 (7.59%)

Our Price: $57.99

QTY:

Graco 278204 Drain Line Clip

Item No: 77

Part Number: 278204

UPC Number: 633955570047

The Graco 278204 Drain Line Clip securely holds the drain or prime hose in place, ensuring safe rout...

$14.52

QTY:

Graco 24V026 Bearing Housing Repair Kit

Item No: 83

Part Number: 24V026

UPC Number: 633955394315

Restore the bearing housing assembly of your Graco sprayer for smooth operation and extended equipme...

Retail Price: $428.00

You save: $59.49 (13.90%)

Our Price: $368.51

QTY:

Graco 257186 Motor Repair Kit C104

Item No: 84

Part Number: 257186

UPC Number: 633955473256

Retail Price: $1525.00

You save: $244 (16.00%)

Our Price: $1281.00

QTY:

Graco 241008 Connecting Rod Replacement Kit

Item No: 85

Part Number: 241008

UPC Number: 633955866188

The Graco 241008 Connecting Rod Replacement Kit is a genuine OEM part designed to restore smooth pum...

Retail Price: $251.00

You save: $31.38 (12.50%)

Our Price: $219.62

QTY:

Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30

QTY:

Graco 287289 Gear Repair Kit for E20/EXP1 695/795

Item No: 89

Part Number: 287289

UPC Number: 633955039841

Graco 287289 Gear Repair Kit for 695/795 a OEM Replacement Graco 287289 Gear Repair Kit is a genuin...

Retail Price: $248.00

You save: $31 (12.50%)

Our Price: $217.00

QTY:

Graco 287284 Drive Housing Repair Kit

Item No: 90

Part Number: 287284

UPC Number: 633955036949

Retail Price: $400.00

You save: $55.6 (13.90%)

Our Price: $344.40

QTY:

Graco 107089 Race Thrust Washer

Item No: 90a

Part Number: 107089

UPC Number: 633955622951

Ensure smooth operation and reduce wear in your Graco airless sprayer with this precision-engineered...

$9.71

QTY:

Graco 16Y598 Endurance Chromex Piston pump

Item No: 91

Part Number: 16Y598

UPC Number: 633955423831

Upgrade or replace your Graco 3900 and Ultra Max II series pump with the 16Y598 Endurance Chromex Pi...

Retail Price: $756.00

You save: $120.96 (16.00%)

Our Price: $635.04

QTY:

Graco 244240 Return Hose Assembly

Item No: 93

Part Number: 244240

UPC Number: 633955963597

Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...

Retail Price: $70.00

You save: $5.32 (7.60%)

Our Price: $64.68

QTY:

Graco 16X904 3/8-Inch ID Coupled Hose

Item No: 94

Part Number: 16X904

UPC Number: 633955678835

The Graco 16X904 Coupled Hose is a durable 3/8-inch high-pressure hose designed for reliable materia...

Retail Price: $91.25

You save: $7.57 (8.30%)

Our Price: $83.68

QTY:

Graco 287489 Hi-Cart Handle Assembly

Item No: 99

Part Number: 287489

UPC Number: 633955195936

Genuine Graco replacement part designed for easy maneuvering of Hi-Cart airless sprayers. Durable an...

Retail Price: $163.50

You save: $17 (10.40%)

Our Price: $146.50

QTY:

Graco 16X695 Cart Hanger Stand

Item No: 105

Part Number: 16X695

UPC Number: 633955569195

The Graco 16X695 Cart Hanger Stand provides stable support and improved handling for compatible Grac...

Retail Price: $29.90

You save: $0.6 (2.01%)

Our Price: $29.30

QTY:

Graco 15C982 Cart Camera

Item No: 106

Part Number: 15C982

UPC Number: 633955031524

The Graco 15C982 Cart Camera is an OEM mechanical cam component for Graco cart-style sprayers, ensur...

$11.37

QTY:

Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 107

Part Number: 114531

UPC Number: 633955801691

A durable OEM fastening screw for critical Graco assemblies: Part # 114531 – Hex‑Head Machi...

$6.30

QTY:

Graco 16X770 Pump Rod Shield

Item No: 108

Part Number: 16X770

UPC Number: 633955676282

The Graco 16X770 Pump Rod Shield protects the pump rod from debris and wear, ensuring smoother perfo...

$7.76

QTY:

Graco 118494 Airless Sprayer Suction Hose Packing O-Ring

Item No: 109

Part Number: 118494

UPC Number: 633955032675

The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...

$6.30

QTY:

Graco 17E924 Ultra Standard Label

Item No: 110

Part Number: 17E924

UPC Number: 755652849780

$17.03

QTY:

Graco 187437 Torque Label

Item No: 117

Part Number: 187437

UPC Number: 633955997509

$9.35

QTY:

Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$6.30

QTY:

Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

The Graco 119250 Shoulder Screw ensures precise alignment and reliable performance in Graco spray sy...

$6.30

QTY:

Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...

Retail Price: $35.00

You save: $0.7 (2.00%)

Our Price: $34.30

QTY:

Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$4.41

QTY:

Graco 222385 Med Alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00

QTY:

Graco 278075 Wire Bracket

Item No: 159

Part Number: 278075

UPC Number: 633955473188

$11.19

QTY:

Graco 15Y118 Made in the USA Label

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

A Genuine OEM Replacement Part Graco 15Y118 Made in the USA Label is an authentic OEM decal used to...

$9.35

QTY:

Graco 795 Hi-Boy Standard Parts List: Your Roadmap to Peak Sprayer Performance

Graco Ultra Max II 795 Hi-Boy Standard airless sprayer is a favorite of repaint pros and midsize commercial crews because it marries an industrial-grade 2.2 hp brushless DC motor to a hard-hitting 1.1 gpm Endurance™ pump and tops out at 3,300 psi. That muscle lets you drive up to three guns—finishing everything from heavy elastomeric to fine-finish lacquer—without ditching the mobility of a roll-cage cart.

But even the toughest sprayer turns into expensive scrap if you don’t feed it genuine Graco Paint Sprayers Parts. That’s where SprayersAndParts steps in. Our shelves carry every Graco 795 Hi-Boy Standard Parts List component, from graco tip filters and graco paint sprayer filters to full pump rebuild kits and the toughest graco pump parts diagram challenges.

At-a-Glance Specifications

Motor: 2.2 hp MaxPower brushless DC (115 V)
Max working pressure: 3,300 psi / 22.8 MPa
Max flow rate: 1.1 gpm / 4.1 lpm
Max tip size (single gun): 0.033 in.
Max tip size (two guns): 0.025 in.
Supported hose length: up to 300 ft (91 m)
Dry weight: 95 lb (Hi-Boy cart, pump primed)

The above numbers translate into class-leading productivity on repaints, apartment blocks, light-industrial steel, and fireproofing touch-ups—jobs that used to demand gas powered paint sprayers before modern brushless platforms caught up.

Why Authentic 795 Parts Matter

Endurance™ Chromex Piston Rod components in 795 pump pair hardened steel with V-Max™ Blue packings for twice the life of commodity assemblies. Use a knock-off washer once and that investment evaporates; seal swell or a micro-pitted rod can trash a $1,400 pump in a weekend. Genuine parts also keep your three-year warranty intact.

Need proof? Field data shows crews that stick to OEM packings average 300–350 operating hours between tear-downs, versus 100–150 hours on imported rubber sets. That’s one extra month of spraying per rebuild cycle—enough to pay for OEM upgrades many times over.

Top-Selling 795 Hi-Boy Service Items

High-Pressure Inlet Strainer (246385) – 60-mesh stainless screen stops nibs from wrecking the packings.
BlueMax™ II Hose 1/4" × 50' (240798) – Lightweight hose rated to 3,300 psi for reduced wrist fatigue.
Endurance Pump 17Y042 – Drop-in replacement with installed Chromex rod; swap in minutes with ProConnect™.
Packing Repair Kit 248212 – Relines the pump throat with OEM leather and PTFE stacks for a fresh seal.
SmartControl™ Pressure Sensor 17E855 – Restores dead-accurate 0–3300 psi regulation.
Graco paint sprayer filters (60-mesh and 100-mesh) – Critical for fine-finish tips under 0.015 in.

Cross-Fleet Compatibility

Many contractors run mixed rigs. Good news: over 40 % of the 795 parts catalog slots neatly into smaller pumps like 390 PC and the Ultra Max II 695. Our product pages flag every crossover SKU so you can carve down shelf inventory. For instance, the 18B260 packing kit replaces the old 244194 bundle and is the exact same kit you’ll see labeled “graco 390 pc pump repair kit” online.

Maintenance Blueprint for the 795 Hi-Boy

Daily:: Flush with water or solvent using FastFlush for two minutes. Relieve pressure and grease the throat at the zerk fitting.
Weekly:: Check the pump rod for scoring, swap graco paint sprayer filters, and inspect gun swivel bearings.
200-Hour Interval:: Install a 248212 packing kit. Average tech time: 40 minutes. Log hours on the SmartControl digital meter so you never miss the date.
Annual:: Rebuild the pressure control and replace the drive belt. This keeps the brushless motor in spec for another 3,000 gallons.

Frequently Asked Questions

Can the 795 spray hot-solvent epoxies?: Yes—swap the standard Viton packings for PTFE/Leather hybrid stacks and keep fluid temps under 120 °F.
How big of a generator do I need?: Graco recommends a 5 kW unit minimum for full 3,300 psi output. A 6.5 kW inverter leaves headroom for work lights.
Is a gas powered paint sprayer still better for roofs?: Only if power is unavailable. The 795 now rivals early GMax units in flow rate while cutting noise and CO emissions to zero on interior repaints.

Ready to Build Your Perfect 795?

From the Gulf Coast humidity to Rocky Mountain altitudes, Graco 795 Hi-Boy Standard thrives when it’s armed with Graco Paint Sprayers Parts spec’d correctly. Add individual SKUs or our curated kits to your cart, choose express checkout, and relax—SprayersAndParts will Deliver.

Graco 795 Hi-Boy Standard Parts List

Graco 795 Hi-Boy Standard Parts List: Your Roadmap to Peak Sprayer Performance

At-a-Glance Specifications

Why Authentic 795 Parts Matter

Top-Selling 795 Hi-Boy Service Items

Cross-Fleet Compatibility

Maintenance Blueprint for the 795 Hi-Boy

Frequently Asked Questions

Ready to Build Your Perfect 795?

ADDRESS

INFORMATION

YOUR ACCOUNT
