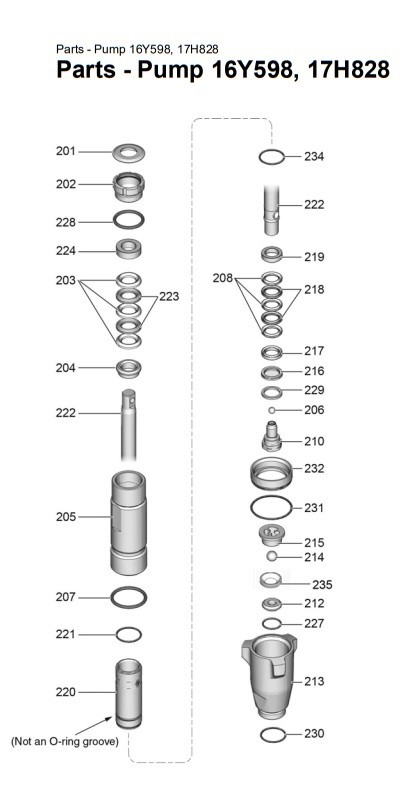

Graco 795 Pump Hi- Boy Parts (16Y598)

Explore Our Full Line of Professional-Grade Graco 795 Pump Hi-Boy Parts (16Y598)

Seasoned contractors know a project only pays when the sprayer runs.Graco 795 Hi-Boy is the workhorse of mid-range graco paint sprayers, coveted for its 2-horsepower brushless motor and SmartControl 4.0 pressure management. At the heart of every unit is the Endurance Chromex™ piston pump (16Y598)—a precision-machined assembly built to sustain 3300 psi while laying down everything from interior latex to 100-percent-solids elastomerics. Replacing a tired pump with a genuine 16Y598 unlocks factory-new output, crushes downtime, and protects your warranty.

Why Choose Genuine Graco 795 Pump Hi-Boy Parts (16Y598)?

• Chromex-Hardened Rod — field tests show 2× wear life vs. stainless imitators, so packings stay tight and film builds stay even.
• QuickChange ProConnect™ — swap a failed pump in under 60 seconds—no wrenches, no vise, no lost revenue.
• QuikPak™ Cartridge Seals — repack on site in minutes; your crew never misses a spray window.
• SmartControl & BlueLink Ready — the 16Y598 lower plugs straight into the 795’s digital brain, logging gallons, pressures, and maintenance hours to the cloud.
• Factory Warranty — honored by Graco.

Key Specifications at a Glance

Cross-Compatible Spray Rigs You Can Service from the Same Shelf

Graco designs families of lowers that slot across multiple frames. Stocking one 16Y598 keeps these rigs earning:

• Ultra Max II 795 Standard & ProContractor (2019-present)
• Ultra Max II 695 Hi-Boy (identical bolt pattern)
• GMAX II 3900 gas sprayers for remote sites
• GMAX 3400 first & second generation—ideal when you also stock graco 3400 parts for gun and filter swaps

The unified platform means one shelf of graco 7900 parts, graco spray tips, and 16Y598 pumps keeps crews spraying small interiors one day and 300-ft hose runs on tilt-wall exteriors the next.

Bundle OEM Accessories for a Turn-Key Upgrade

1. Contractor PC Gun or graco magnum x7 replacement spray gun—25 % lighter trigger pull reduces hand strain on 10-hour shifts.
2. BlueMax II Hose (50 & 100 ft)—rated 3300 psi; mates to graco spray tips up to 0.027″ without starving the pattern.
3. RAC X LP Tips—spray at 50 % lower pressure, cutting overspray and noise inside occupied spaces.
4. 1⁄4ʺ x 7 ft graco suction hose—oversized bore feeds high-build primers without cavitation.
5. Pump Armor™ & TSL™ maintenance fluids—protects your new Chromex rod and MaxLife seals from rust and dry start-ups.

Pro Tips for Zero-Downtime Maintenance

• Log Pump Hours — repack every 500 hours; tag each sprayer’s handle with next-service stickers to enforce discipline.
• Flush Daily with warm water or Pump Armor; rust in the manifold starves your graco suction hose and burns packings.
• Wet-Cup Discipline—top off TSL once per shift; a dry cup scores rods and halves seal life.
• Color-Code Consumables—blue for interior latex, red for elastomerics; your parts runner grabs the right kit without guesswork.
• Carry a Spare Lower—the 16Y598 pays for itself by avoiding a single half-day shutdown.

Frequently Asked Questions

Will 16Y598 fit a 2014 Ultra Max II 795?

Yes—bolt pattern is unchanged since 2013. If your rig still uses a first-gen ProConnect cradle, add retrofit kit 17C721 for perfect alignment.

Can I push roof coatings through a 0.031″ tip?

The 2 hp motor on the 795 sustains 3000 psi at a 0.031″ RAC X SwitchTip on 150 ft of hose—ideal for elastomerics.

How does Chromex compare to aftermarket steel rods?

Chromex rods show 0.0003″ wear after 120 hours vs. 0.0015″ on mild steel—five-fold longevity.

Do you stock parts for our fleet of graco 7900 line stripers?

Absolutely. Tip guards, filters, piston seals, and belt kits sit next to every 16Y598 on our shelf for one-ticket checkout.

Ready to Restore Factory Performance?

Your sprayer’s revenue stream runs through its pump—don’t risk it on copycats. Click Add to Cart, select express shipping, and mount your genuine Graco 795 Pump Hi-Boy Parts (16Y598) Delivered. When you partner with SprayersAndParts that only stock up genuine graco sprayers, productivity isn’t just promised; it’s delivered.
