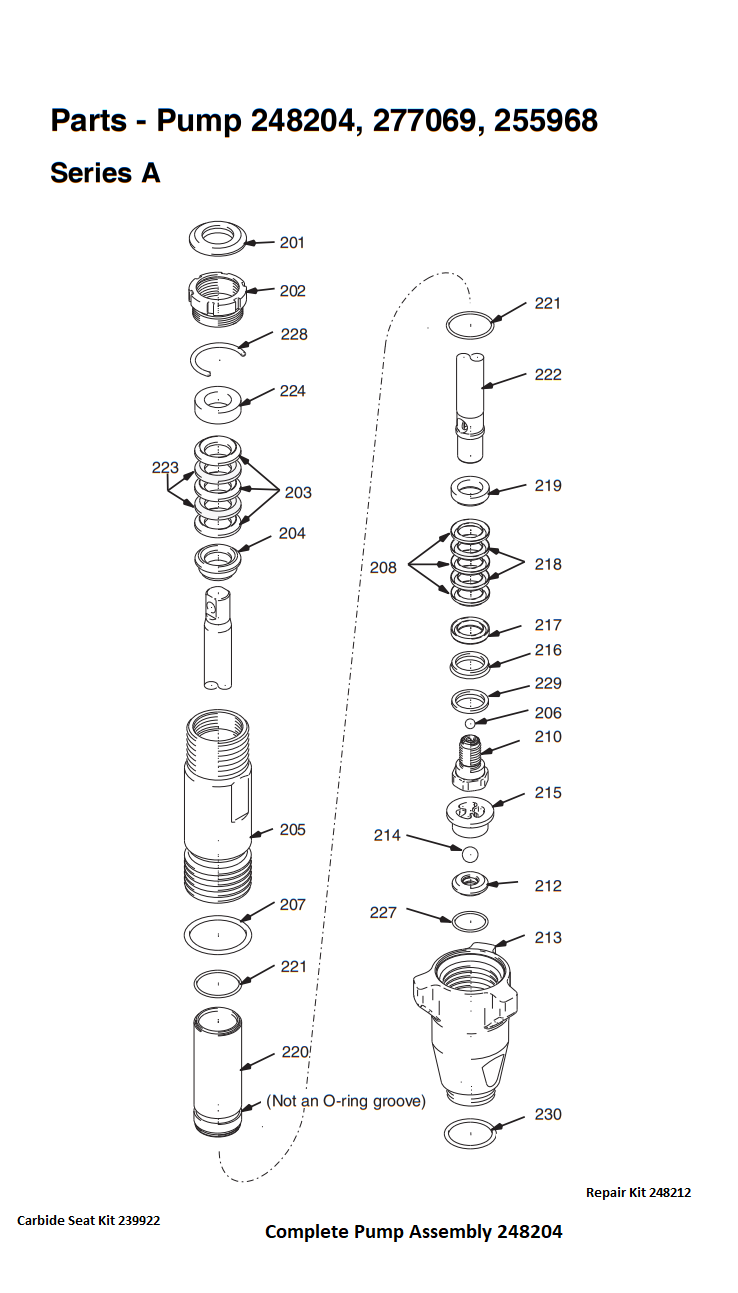

Graco Ultra Max II:795 Hi-Boy Pump (248204) Sprayer Model 249666 253419

Graco Ultra Max II:795 Hi-Boy Pump (248204) Sprayer Model 249666 253419
Product Image
Graco 248212 Pump Packing Repair Kit

Item No: 1

Part Number: 248212

UPC Number: 633955047426

The Graco 248212 Pump Packing Repair Kit restores pump performance and prevents leakage in professio...

List Price: $137.50
You save: $40.69 (29.59%)
Sale Price: $96.81
QTY:
Product Image
Graco 239922 Intake Valve Seat

Item No: 2

Part Number: 239922

UPC Number: 633955790650

The Graco 239922 Intake Valve Seat Kit restores proper suction and sealing performance for the inlet...

List Price: $99.50
You save: $8.26 (8.30%)
Sale Price: $91.24
QTY:
Product Image
Graco 248204 Pump Assembly for 695 and 795

Item No: 3

Part Number: 248204

UPC Number: 633955047310

The Graco 248204 Pump Assembly is a complete OEM fluid section designed for Ultra Max II and Ultimat...

List Price: $774.00
You save: $123.84 (16.00%)
Sale Price: $650.16
QTY:
Product Image
Graco 179810 Plug

Item No: 4

Part Number: 179810

UPC Number: 633955462502

The Graco 179810 Plug protects your Graco sprayer from leaks and contaminants while ensuring smooth ...

$6.20
QTY:
Product Image
Graco 193046 Upper Packing & Wet Cup Nut

Item No: 5

Part Number: 193046

UPC Number: 633955823273

The Graco 193046 Upper Packing Wet Cup Nut secures the upper packing wet cup assembly, ensuring prop...

List Price: $96.50
You save: $8.01 (8.30%)
Sale Price: $88.49
QTY:
Product Image
Graco 192692 Vee Throat Packing

Item No: 6

Part Number: 192692

UPC Number: 633955789975

The Graco 192692 Vee Packing Throat provides a reliable seal for pump fluid passages, preventing lea...

$11.70
QTY:
Product Image
Graco 15C987 Gland Packing

Item No: 7

Part Number: 15C987

UPC Number: 633955032620

The Graco 15C987 Gland Packing ensures a reliable seal at the pump throat, preventing leaks and main...

$6.00
QTY:
Product Image
Graco 243346 Pump Cylinder Repair Kit

Item No: 8

Part Number: 243346

UPC Number: 633955937017

Graco 243346 Pump Cylinder Repair Kit restores pump performance by replacing the worn cylinder in yo...

List Price: $371.00
You save: $99.43 (26.80%)
Sale Price: $271.57
QTY:
Product Image
Graco 105444 Ball

Item No: 9

Part Number: 105444

UPC Number: 633955478855

The Graco 105444 Ball is a durable stainless steel component designed for precision performance in G...

$5.90
QTY:
Product Image
Graco 114054 O-Ring Packing

Item No: 10

Part Number: 114054

UPC Number: 633955790001

The Graco 114054 O-Ring Packing provides a reliable seal for Graco spray guns and pumps, preventing ...

$9.95
QTY:
Product Image
Graco 192693 Vee Piston Packing Seal

Item No: 11

Part Number: 192693

UPC Number: 633955790094

Vee-shaped piston packing seal designed to maintain high-pressure sealing integrity and prevent flui...

$9.55
QTY:
Product Image
Graco 287877 Piston Valve Repair Kit

Item No: 12

Part Number: 287877

UPC Number: 633955133198

The Graco 287877 Piston Valve Repair Kit restores smooth pumping and sealing performance in your air...

List Price: $159.50
You save: $19.94 (12.50%)
Sale Price: $139.56
QTY:
Product Image
Graco 15C785 Intake Valve Housing

Item No: 13

Part Number: 15C785

UPC Number: 633955035379

The Graco 15C785 Intake Valve Housing houses the intake valve components, ensuring proper fluid entr...

List Price: $61.50
You save: $5.1 (8.29%)
Sale Price: $56.40
QTY:
Product Image
Graco 105445 Ball

Item No: 14

Part Number: 105445

UPC Number: 633955014640

The Graco 105445 Ball is a stainless steel precision part that ensures smooth fluid flow and efficie...

$6.20
QTY:
Product Image
Graco 192624 Ball Guide Cage

Item No: 15

Part Number: 192624

UPC Number: 633955790131

The Graco 192624 Ball Guide or Cage ensures smooth operation of internal ball mechanisms within Grac...

List Price: $49.90
You save: $3.79 (7.60%)
Sale Price: $46.11
QTY:
Product Image
Graco 118503 Piston Wiper

Item No: 16

Part Number: 118503

UPC Number: 633955048317

The Graco 118503 Piston Wiper ensures smooth fluid flow and protects your airless sprayer pump from ...

$10.90
QTY:
Product Image
Graco 178969 Female Gland Packing

Item No: 17

Part Number: 178969

UPC Number: 633955121386

Ensure reliable sealing and smooth operation with the Graco 178969 Female Gland Packing. Perfect for...

$23.40
QTY:
Product Image
Graco 178939 Vee Leather Packing

Item No: 18

Part Number: 178939

UPC Number: 633955525672

The Graco 178939 Vee Leather Packing ensures a reliable seal to prevent leaks and maintain consisten...

$15.50
QTY:
Product Image
Graco 196880 Male Gland Packing

Item No: 19

Part Number: 196880

UPC Number: 633955720985

The Graco 196880 Male Gland Packing provides leak-free sealing for high-pressure HVLP systems. Ge...

$5.60
QTY:
Product Image
Graco 248209 Stainless Steel Cylinder Sleeve

Item No: 20

Part Number: 248209

UPC Number: 633955047372

The Graco 248209 Stainless Steel Cylinder Sleeve provides a durable and corrosion-resistant pump cha...

List Price: $359.00
You save: $96.21 (26.80%)
Sale Price: $262.79
QTY:
Product Image
Graco 108526 O-Ring Packing

Item No: 21

Part Number: 108526

UPC Number: 633955078024

The Graco 108526 O-Ring Packing ensures leak-free operation and reliable sealing in airless sprayers...

$13.40
QTY:
Product Image
Graco 248206 Chrome Plated Piston Rod

Item No: 22

Part Number: 248206

UPC Number: 633955047334

Graco 248206 Chrome Plated Piston Rod is a genuine OEM rod repair kit designed for top performance i...

List Price: $487.00
You save: $130.52 (26.80%)
Sale Price: $356.48
QTY:
Product Image
Graco 178940 Vee Leather Packing

Item No: 23

Part Number: 178940

UPC Number: 633955134348

The Graco 178940 Vee Leather Packing provides a reliable seal to prevent leaks and maintain smooth f...

$14.70
QTY:
Product Image
Graco 15C988 Gland Packing

Item No: 24

Part Number: 15C988

UPC Number: 633955032668

The Graco 15C988 Gland Packing provides a reliable seal at the pump throat, preventing leaks and mai...

$6.00
QTY:
Product Image
Graco 107079 O-Ring Packing

Item No: 25

Part Number: 107079

UPC Number: 633955599291

Graco 107079 O-Ring Packing is a genuine OEM sealing ring designed to prevent leaks and maintain con...

$6.55
QTY:
Product Image
Graco 15C997 Backup Washer Piston Valve

Item No: 26

Part Number: 15C997

UPC Number: 633955033511

The Graco 15C997 Backup Washer provides secondary sealing in piston-valve assemblies, preventing lea...

$5.25
QTY:
Product Image
Graco 118494 Airless Sprayer Suction Hose Packing O-Ring

Item No: 27

Part Number: 118494

UPC Number: 633955032675

The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...

$5.25
QTY:









Graco Ultra Max II 795 Hi-Boy Pump (Part 248204) – OEM Fluid Section



Graco 248204 Pump Assembly is a complete OEM fluid section engineered for use with Ultra Max II 695 and 795 models, including the Hi-Boy configuration. It includes all essential components piston rod, cylinder, intake valve and ball, and fluid packings to ensure reliable output and consistent paint flow.



Compatibility & Model Fit



  • Ultra Max II 795 Standard and Premium Hi-Boy series (e.g. models 249666, 249648)
  • Ultra Max II 695 Lo-Boy/Hi-Boy units
  • Sherwin-Williams Ultimate MX 695/795 equivalents

Tip: Always confirm your unit’s series number in the manual before ordering.



Key Features & Benefits



  • Full OEM assembly – Includes piston, cylinder, and all packings
  • Quick swap design – Compatible with Graco’s ProConnect 2 system
  • Durability – Features Chromex rod and hardened stainless steel cylinder
  • Minimize downtime – Replace pump in under 30 minutes



Why OEM Matters for Pros



  • Precision fit: ±0.002 in tolerances for optimal SmartControl performance
  • Extended service life: Fewer leaks, less clogging
  • Warranty compliance: Retain Graco’s warranty when using OEM parts

Installation & Service Tips

  • Confirm your 795 Hi-Boy series (A, B, or C)
  • Use Graco’s ProConnect system—no special tools needed
  • Replace packings approximately every 500,000 cycles
  • Use FastFlush for quick and clean maintenance
Ideal Use Cases

This pump is ideal for:

  • ProContractors handling daily spray applications
  • Multi-gun setups requiring up to 1.1 GPM at 3,300 psi
  • Contractors who prioritize downtime recovery
  • Users committed to OEM quality and warranty coverage
