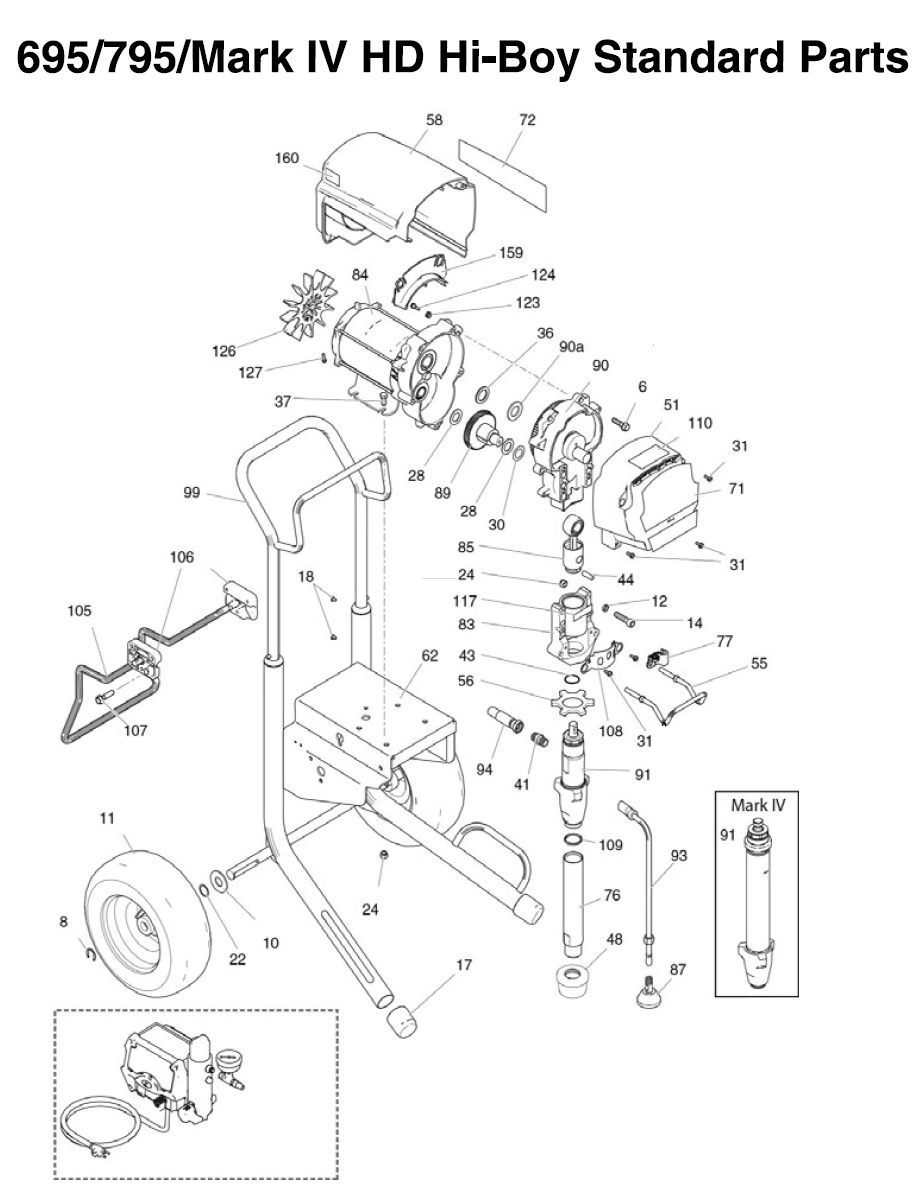

Graco 695 Hi-Boy Standard parts list

Graco 253132 Tube Repair Kit 11 Inch

Item No: -

Part Number: 253132

UPC Number: 633955139916

$26.69

QTY:

Graco 15C753 Torx Hex Washer Head Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

The Graco 15C753 Torx Hex Washer Head Machine Screw is a durable fastener with a Torx drive and hex ...

$6.50

QTY:

Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...

$6.30

QTY:

Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77

QTY:

Graco 119420 Pneumatic Wheel

Item No: 11

Part Number: 119420

UPC Number: 633955036376

The Graco 119420 Pneumatic Wheel is a durable, air-filled replacement wheel designed for Graco Hi-Bo...

Retail Price: $80.25

You save: $6.65 (8.29%)

Our Price: $73.60

QTY:

Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

Maintain secure fastener connections with the Graco 106115 Hi‑Collar Lock Spring Washer, designed ...

$8.74

QTY:

Graco 17E788 Cap Screw

Item No: 14

Part Number: 17E788

UPC Number: 755652813491

$6.30

QTY:

Graco 15C871 Leg Cap

Item No: 17

Part Number: 15C871

UPC Number: 633955031371

Protect your sprayer’s legs and ensure stable operation with this durable OEM leg cap. Fits 650...

$6.30

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 18

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66

QTY:

Graco 111040 Nylock lock nut

Item No: 24

Part Number: 111040

UPC Number: 633955382473

The Graco 111040 Nylock Lock Nut is a genuine OEM fastener designed to prevent loosening from vibrat...

$9.79

QTY:

Graco 114672 Thrust Washer

Item No: 28

Part Number: 114672

UPC Number: 633955886070

The Graco 114672 Thrust Washer ensures smooth rotation and stabilizes critical components in Graco a...

$6.30

QTY:

Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

The Graco 114699 Thrust Washer stabilizes rotating parts in Graco airless sprayers and proportioners...

$6.30

QTY:

Graco 118444 Hex Washer Head Machine Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

Secure critical components in select Graco sprayers with the 118444 Hex Washer Head Machine Screw, e...

$6.30

QTY:

Graco 116191 Thrust Washer

Item No: 36

Part Number: 116191

UPC Number: 633955980389

The Graco 116191 Thrust Washer ensures proper alignment and smooth operation of the pump assembly in...

$6.30

QTY:

Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

The Graco 100057 Screw is a genuine OEM hex head cap screw designed for secure fastening in Graco ai...

$8.74

QTY:

Graco 196178 Nipple Adapter

Item No: 41

Part Number: 196178

UPC Number: 633955961678

The Graco 196178 Nipple Adapter is an OEM connector designed for reliable fluid connections in high-...

$9.04

QTY:

Graco 176817 Retaining Spring

Item No: 43

Part Number: 176817

UPC Number: 633955053977

The Graco 176817 Retaining Spring securely holds the pump linkage pin in place, ensuring consistent ...

$7.51

QTY:

Graco 176818 Sprayer Straight Pin

Item No: 44

Part Number: 176818

UPC Number: 633955509962

The Graco 176818 Straight Pin is a genuine OEM attach pin designed to secure the piston or connectin...

$15.47

QTY:

Graco 189920 Inlet Strainer/Filter (Threaded)

Item No: 48

Part Number: 189920

UPC Number: 633955094086

Prevent debris from entering your pump and ensure smooth operation with the Graco 189920 Inlet Strai...

Retail Price: $32.20

You save: $12.24 (38.01%)

Our Price: $19.96

QTY:

Graco 24V023 Cover Repair Kit

Item No: 51

Part Number: 24V023

UPC Number: 633955000766

Graco 24V023 Cover Repair Kit a OEM Front Cover for 695/795 Graco 24V023 Cover Repair Kit is a genu...

Retail Price: $41.20

You save: $0.82 (1.99%)

Our Price: $40.38

QTY:

Graco 16C457 Pail Hanger

Item No: 55

Part Number: 16C457

UPC Number: 633955570030

The Graco 16C457 Pail Hanger is a genuine OEM part designed to securely hold your paint pail in plac...

Retail Price: $34.00

You save: $0.68 (2.00%)

Our Price: $33.32

QTY:

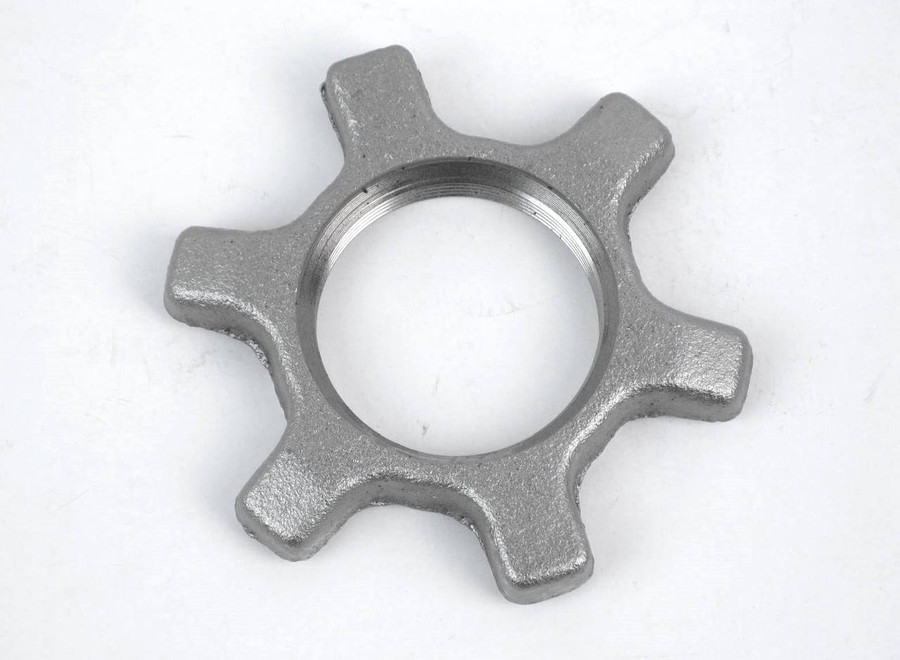

Graco 17A257 Pump Jam Nut

Item No: 56

Part Number: 17A257

UPC Number: 633955483965

The Graco 17A257 Pump Jam Nut is a genuine OEM part that secures components in Graco pump assemblies...

$18.12

QTY:

Graco 287281 Motor Shield Repair Kit

Item No: 58

Part Number: 287281

UPC Number: 633955035188

Retail Price: $83.25

You save: $6.9 (8.29%)

Our Price: $76.35

QTY:

Graco 24Y424 Frame for 695/795 Lo-Boy Sprayer

Item No: 62

Part Number: 24Y424

UPC Number: 755652284970

Retail Price: $561.00

You save: $81.91 (14.60%)

Our Price: $479.09

QTY:

Graco 17E730 UltraMax II 795 Front Label

Item No: 71

Part Number: 17E730

UPC Number: 755652834229

Graco 17E730 Front Label

$17.03

QTY:

Graco 17E731 Ultramax II 795 Side Label

Item No: 72

Part Number: 17E731

UPC Number: 755652834236

Graco 17E731 Side Label Supersede Graco 15D069

$17.03

QTY:

Graco 248214 Intake Tube Repair Kit

Item No: 76

Part Number: 248214

UPC Number: 633955047457

Retail Price: $62.75

You save: $4.76 (7.59%)

Our Price: $57.99

QTY:

Graco 278204 Drain Line Clip

Item No: 77

Part Number: 278204

UPC Number: 633955570047

The Graco 278204 Drain Line Clip securely holds the drain or prime hose in place, ensuring safe rout...

$14.52

QTY:

Graco 24V026 Bearing Housing Repair Kit

Item No: 83

Part Number: 24V026

UPC Number: 633955394315

Restore the bearing housing assembly of your Graco sprayer for smooth operation and extended equipme...

Retail Price: $428.00

You save: $59.49 (13.90%)

Our Price: $368.51

QTY:

Graco 257185 Motor Repair Kit C104

Item No: 84

Part Number: 257185

UPC Number: 633955473232

Retail Price: $1250.00

You save: $200 (16.00%)

Our Price: $1050.00

QTY:

Graco 241008 Connecting Rod Replacement Kit

Item No: 85

Part Number: 241008

UPC Number: 633955866188

The Graco 241008 Connecting Rod Replacement Kit is a genuine OEM part designed to restore smooth pum...

Retail Price: $251.00

You save: $31.38 (12.50%)

Our Price: $219.62

QTY:

Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30

QTY:

Graco 287289 Gear Repair Kit for E20/EXP1 695/795

Item No: 89

Part Number: 287289

UPC Number: 633955039841

Graco 287289 Gear Repair Kit for 695/795 a OEM Replacement Graco 287289 Gear Repair Kit is a genuin...

Retail Price: $248.00

You save: $31 (12.50%)

Our Price: $217.00

QTY:

Graco 287283 Drive Housing Repair Kit

Item No: 90

Part Number: 287283

UPC Number: 633955035430

Graco 287283 Drive Housing Repair Kit a Genuine OEM Replacement Graco 287283 Drive Housing Repair K...

Retail Price: $421.00

You save: $58.52 (13.90%)

Our Price: $362.48

QTY:

Graco 107089 Race Thrust Washer

Item No: 90a

Part Number: 107089

UPC Number: 633955622951

Ensure smooth operation and reduce wear in your Graco airless sprayer with this precision-engineered...

$9.71

QTY:

Graco 16Y598 Endurance Chromex Piston pump

Item No: 91

Part Number: 16Y598

UPC Number: 633955423831

Upgrade or replace your Graco 3900 and Ultra Max II series pump with the 16Y598 Endurance Chromex Pi...

Retail Price: $756.00

You save: $120.96 (16.00%)

Our Price: $635.04

QTY:

Graco 244240 Return Hose Assembly

Item No: 93

Part Number: 244240

UPC Number: 633955963597

Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...

Retail Price: $70.00

You save: $5.32 (7.60%)

Our Price: $64.68

QTY:

Graco 16X904 3/8-Inch ID Coupled Hose

Item No: 94

Part Number: 16X904

UPC Number: 633955678835

The Graco 16X904 Coupled Hose is a durable 3/8-inch high-pressure hose designed for reliable materia...

Retail Price: $91.25

You save: $7.57 (8.30%)

Our Price: $83.68

QTY:

Graco 287489 Hi-Cart Handle Assembly

Item No: 99

Part Number: 287489

UPC Number: 633955195936

Genuine Graco replacement part designed for easy maneuvering of Hi-Cart airless sprayers. Durable an...

Retail Price: $163.50

You save: $17 (10.40%)

Our Price: $146.50

QTY:

Graco 16X695 Cart Hanger Stand

Item No: 105

Part Number: 16X695

UPC Number: 633955569195

The Graco 16X695 Cart Hanger Stand provides stable support and improved handling for compatible Grac...

Retail Price: $29.90

You save: $0.6 (2.01%)

Our Price: $29.30

QTY:

Graco 15C982 Cart Camera

Item No: 106

Part Number: 15C982

UPC Number: 633955031524

The Graco 15C982 Cart Camera is an OEM mechanical cam component for Graco cart-style sprayers, ensur...

$11.37

QTY:

Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 107

Part Number: 114531

UPC Number: 633955801691

A durable OEM fastening screw for critical Graco assemblies: Part # 114531 – Hex‑Head Machi...

$6.30

QTY:

Graco 16X770 Pump Rod Shield

Item No: 108

Part Number: 16X770

UPC Number: 633955676282

The Graco 16X770 Pump Rod Shield protects the pump rod from debris and wear, ensuring smoother perfo...

$7.76

QTY:

Graco 118494 Airless Sprayer Suction Hose Packing O-Ring

Item No: 109

Part Number: 118494

UPC Number: 633955032675

The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...

$6.30

QTY:

Graco 17E924 Ultra Standard Label

Item No: 110

Part Number: 17E924

UPC Number: 755652849780

$17.03

QTY:

Graco 187437 Torque Label

Item No: 117

Part Number: 187437

UPC Number: 633955997509

$9.35

QTY:

Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$6.30

QTY:

Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

The Graco 119250 Shoulder Screw ensures precise alignment and reliable performance in Graco spray sy...

$6.30

QTY:

Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...

Retail Price: $35.00

You save: $0.7 (2.00%)

Our Price: $34.30

QTY:

Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$4.41

QTY:

Graco 222385 Med Alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00

QTY:

Graco 278075 Wire Bracket

Item No: 159

Part Number: 278075

UPC Number: 633955473188

$11.19

QTY:

Graco 15Y118 Made in the USA Label

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

A Genuine OEM Replacement Part Graco 15Y118 Made in the USA Label is an authentic OEM decal used to...

$9.35

QTY:

Graco 695 Hi-Boy Standard Parts List: The Complete OEM Blueprint

Graco Ultra Max II 695 Hi-Boy Standard electric airless sprayer occupies the "sweet-spot" for repaint and mid-size commercial crews: a brushless 2 hp motor coupled to a Chromex Endurance™ pump delivers 0.95 gpm at 3,300 psi, yet the Hi-Boy cart rolls through a 32-inch doorway and nests in a midsize van. SmartControl 4.0 with WatchDog™ pump protection lets crews coat a 25,000 sq ft big-box retail shell before lunch—using a standard 20-amp circuit.

Why Contractors Stick with Genuine Graco Parts Replacement

Micron-level tolerances on Chromex piston rods and V-Max™ Blue packings mean no shims, no pressure drift, and twice the pump life of copy-cat kits.
ProConnect™ drop-in pumps let one tech swap a failed lower in five minutes—saving two hours of idle labor on a hotel repaint.
Warranty integrity: Graco backs the drive train for OEM parts.

Core Specifications at a Glance

Motor: 2 hp MaxPower brushless DC
Flow rate: 0.95 gpm (3.6 lpm)
Max working pressure: 3,300 psi (228 bar)
Max tip (single gun): 0.031 in.
Max hose length: 300 ft (91 m)
Dry weight: 90 lb (41 kg)

Cross-Fleet Compatibility That Trims Inventory

Roughly 40 % of the 695 wear parts overlap with smaller classics and larger gas rigs. 248212 packing kit shows up in the catalog as the graco 390 pc pump repair kit, and its o-rings seal the graco drywall texture sprayer RTX 2000PI as well. Stock one kit, service three tools—goodbye dead money on the shelf with Graco Sprayer.

Integrating 690-Series Rigs with GH 230 and GMax 7900 Lines

Big jobs often pair 695 with hydraulic bruisers like graco 230 paint sprayer or gas-powered GMax 7900. Keep in mind:

RAC X™ tip guard, 60-mesh manifold filter, and gun repair kits move straight over from the 7900 family to the 695—one shelf label feeds two rigs.
Fuel-site crews love that the EH 230 HD and the 695 share identical BlueMax™ hose threads—swap hoses without cutting new whip lines.

Preventive Maintenance Blueprint

Daily: FastFlush™ 60 seconds, TSL throat lube, pressure relief.
Weekly: Swap suction strainer, inspect gun swivels, verify SmartControl reading.
Every 50 gallons: Replace 60-mesh or 100-mesh manifold filter depending on material.
200 hours: Install QuikPak™ cartridge or full packing kit, log hours via BlueLink.
Annual: Press in new drive belt, upgrade to MaxLife™ sleeve if spraying abrasive elastomerics.

Productivity Pack

695 Hi-Boy sprayer
50 ft BlueMax II hose
Contractor PC gun
Three LP tips (517, 621, 731)
60-mesh and 100-mesh filters

Downtime-Buster Pack

Endurance™ pump (17Y297)
QuikPak™ seal cartridge
WatchDog™ sensor
Graco Gun repair kit
Case of TSL throat lube

Texture Transition Kit

RTX 2000PI hopper o-rings
6 mm & 8 mm roughcast nozzles
24 in. ProSurface smoothing blade
Spare clutch belt

Frequently Asked Questions

Can the 695 spray stain at low pressure?: Yes—fit a 313 tip, enable SoftSpray mode, and drop to 1,200 psi for a 55 % overspray cut.
Is a gas sprayer faster outdoors?: Only where power is scarce. The 695 matches early GMax flow, weighs half as much, and eliminates exhaust fumes on scaffolds.
Which filter mesh for elastomerics?: 30-mesh inlet, 60-mesh manifold, and a 0.027 in. tip keep flow steady without premature pack-off.
Will 7900 piston rods fit the 695?: No. Thread pitch differs, but packing sets are identical—stocking graco 7900 parts still trims inventory.

Bottom Line: SprayersAndParts Is Your 695 Pit Crew

Downtime kills profit. By stocking the full Graco Paint Sprayers Parts catalog—plus cross-platform items like the graco 390 pc pump repair kit—SprayersAndParts turns a three-vendor scavenger hunt into a one-click checkout.

Graco 695 Hi-Boy Standard parts list

Graco 695 Hi-Boy Standard Parts List: The Complete OEM Blueprint

Why Contractors Stick with Genuine Graco Parts Replacement

Core Specifications at a Glance

Cross-Fleet Compatibility That Trims Inventory

Integrating 690-Series Rigs with GH 230 and GMax 7900 Lines

Preventive Maintenance Blueprint

Productivity Pack

Downtime-Buster Pack

Texture Transition Kit

Frequently Asked Questions

Bottom Line: SprayersAndParts Is Your 695 Pit Crew

ADDRESS

INFORMATION

YOUR ACCOUNT
