Graco Mark IV HD Pump Parts 17H832

Complete Selection of Factory-Approved Graco Mark IV HD ProContractor Pump Parts (17H832) in Stock

A blown piston rod on a texture job can cost thousands in lost footage and call-backs. Graco 17H832 Endurance Vortex MaxLife Pump puts your Mark IV HD ProContractor back on line in under five minutes, restoring the original 0.95 GPM (3.6 LPM) flow and 3300 PSI pressure that made the Mark IV the industry’s favorite “sweet-spot” sprayer. Built with a rotating Chromex rod that wears evenly around its circumference, this pump lasts up to two times longer in abrasive drywall mud than any standard chrome-plated rod. SprayersAndParts keeps it plus every seal, filter, tip and hose on the site so you can purchase, prime and spray before tomorrow’s crew call.

Why Genuine 17H832 Beats “Almost-Fits” Aftermarket Imports

Exact Tolerances ≫ CNC-cut ¾″ UN threads slide straight into Mark IV blocks and also fit Mark V HD and 650 Pro frames no adapters, no leaks.
Vortex Rotating Rod ≫ The rod spins gradually during operation so wear distributes 360°, doubling packing life versus static rods.
MaxLife Coatings ≫ Tungsten-carbide seats and a blue-PTFE/Leather packing stack shrug off silica-filled texture muds.
ProConnect Design ≫ One pin and a quarter-turn remove the lower field techs swap a pump in <60 s, slashing downtime.
Full Factory Warranty Backed by Graco.

Hard Numbers Contractors Count On

Spec	Value	Why It Matters
Max Flow	0.95 GPM (3.6 LPM)	Feeds up to a 0.033″ tip—ideal for Level-5 mud and acrylic primer.
Max Pressure	3300 PSI (228 bar)	Maintains pattern on 150 ft of ⅜″ hose—no tailing.
Cycles/Gallon	≈226	Lower RPM = cooler pump & longer Life.
Compatible Tips	0.013″-0.033″ RAC X / LP	Switch from fine-finish enamel to heavy block-fill with one pump.
Wetted Parts	Stainless, Ceramic, PTFE/Leather	Zero rust—even with aggressive latexes.

Which Machines Accept the 17H832 Pump?

The Graco engineering team standardized stroke length and inlet geometry across several mid-flow rigs, so one 17H832 order covers a mixed fleet:

Mark IV HD ProContractor & Standard (17E604, 17E603) – direct OEM fit.
Mark IV XT HD 3-in-1 sprayers – identical V-rod and coupler. :
Mark V HD after ¾″ suction adapter swap—boost flow on texture jobs.
Graco 650 Pro rigs looking for MaxLife durability.
Ultra Max II 695 / 795 when upgrading to Vortex technology via 248-425 kit.
TexSpray Mark IV & Mark V gas rigs—same lower, faster rebuild in the field.

Bundle Everything Your Crew Needs In One Cart

While you’re refreshing the pump lower, grab time-saving extras that share threads and seals:

Graco Pump Replacement Parts Packs – O-rings, seats, ball kits; keep one in every service van.
Graco Drywall Smoothing Blades – 24″-48″ blades feather Level-5 mud shot through a 531 tip.
Graco Spray Tips – LP 519 for low-overspray primer, 531 for orange-peel texture, 733 for elastomeric block-fill.
Graco Airless Spray Guns – Contractor PC gun cuts trigger force 50 %; perfect match to the Mark IV flow curve.
Graco Paint Sprayer Gun Parts – triggers, needles, springs; keep guns like new.
Graco Magnum XR7 Parts – unify spare-parts inventory if you run an XR7 for trim work.

Pro-Level Maintenance to Hit 10,000 Pump Hours

Log Hours Weekly and rebuild packings every 200-250 spray hours with kit 15C742.
Flush Daily using the mildest solvent that cleans your coating—heavy xylene destroys PTFE.
Rotate Tips 180° at first sign of tailing; new tips cost less than one back-roll hour.
Store Wet—run Pump Armor through till blue; corrosion risk drops 80 %.
Color-Code Bins: blue for graco airless spray guns, red for graco pump replacement parts, yellow for tips techs grab what they need in seconds.

Stop Paying Crews to Stand Around—Swap Your Pump Today

Click Add to Cart —so you’re spraying high-margin footage tomorrow morning.

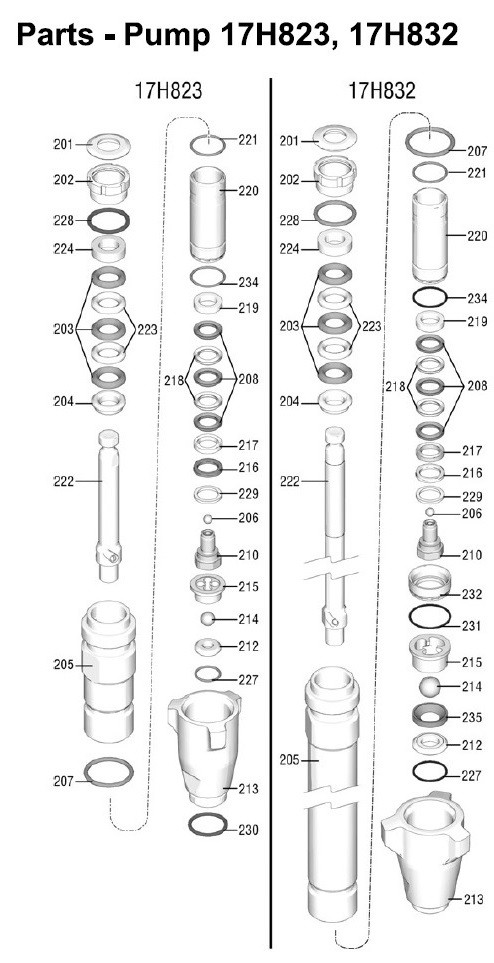

Graco Mark IV HD ProContractor Pump parts (17H832)
