Graco Mark VII Max Filter Assembly Sprayer Parts List

Keep Your Gear Running with Authentic Graco Mark VII Max Filter Assembly Sprayer Parts List Replacements

When the Graco Mark VII Max filter assembly sprayer parts list quality matters, professional contractors and sprayer technicians rely on Sprayersandparts.com. Our factory-authorized inventory features everything you need—from full filter housings to seal kits and pressure-rated components—available in one friction-free online portal. Whether you’re outfitting a fleet, stocking field spares, or rebuilding aging equipment, our OEM-grade parts guarantee the reliability and performance your Mark VII Max sprayer was built for.

Sprayersandparts.com empowers you to spec, source, and ship your Graco filter kits and accessories with confidence—backed by expert support and fast shipping to the jobsite or warehouse.

Why Choose Genuine Graco Mark VII Max Filter Assembly Parts?

When it comes to protecting your fluid path and maintaining spray quality, precision and reliability are non-negotiable. Here’s why professionals demand OEM Mark VII Max filter assembly components:

1. Built to Exact Tolerances
   Original parts are engineered to match Graco’s strict specifications—ensuring perfect fit, consistent pressure, and effective filtration.

2. Tested for Durability & Chemical Resistance
   Every filter component is pressure-rated (up to 3,300 PSI) and tested against the most abrasive coatings, solvents, and elastomeric materials.

3. Warranty & Technical Support
   OEM parts come with Graco’s manufacturer warranty and access to Sprayersandparts.com’s seasoned technical experts for installation guidance.

In a market flooded with generic alternatives, genuine parts ensure jobsite confidence, performance consistency, and long-term value.

What’s Included in the Mark VII Max Filter Assembly Parts List?

Our comprehensive inventory covers every part involved in the filter housing and assembly for the Mark VII Max series:

• Filter Housing Assemblies
  Rugged housings rated for high-pressure use with quick-access caps and sealing rings.

• Cartridge & Mesh Filter Elements
  Stainless 20–100 mesh or high-flow cartridges for painted coatings, primers, and stain systems.

• Retainer Rings & End Caps
  Precision-machined components that clamp filters securely and maintain proper flow dynamics.

• O-Rings & Seal Kits
  Chemical-resistant O-rings and seal kits for filter housing, pump suction tubes, and inlet valves.

• Mount Plates & Hardware Kits
  Includes bolting kits, hanger brackets, and replacement bronze bushings.

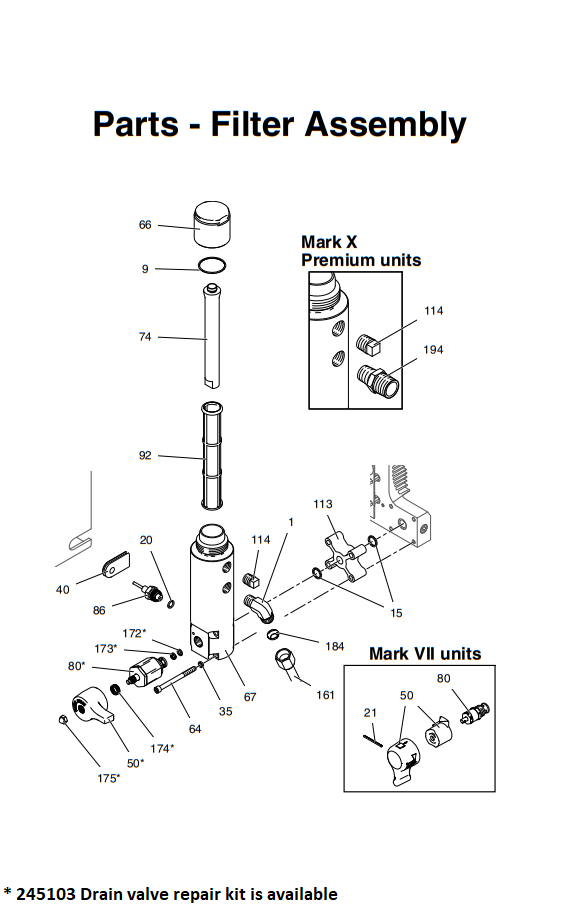

• Exploded Filter Assembly Diagram
  Visual breakdowns with part numbers for easy ordering and cross-reference.

Key Features & Specifications You Can Trust

Every product listing includes essential technical details:

• Pressure Ratings: All components tested and rated to a service pressure of 3,300 PSI or higher.

• Material Grades: Stainless steel internals, anodized aluminum caps, and Viton®/nitrile seals suitable for spray coatings.

• Flow Capacity: Filter sizes, mesh micron ratings, and flow rates to match your jobsite needs.

• Thread & Fitting Specs: NPT/NPSM threading, gasket types, and compatibility notes.

• Cross‑Model Compatibility: Indicates which parts can be used on related systems, like the Graco Magnum Project Painter Plus 257025, Graco 3900, Hunter X7, or the TrueCoat 360.

This data helps professionals order the right parts at the right time—no guessing required.

Rapid Dispatch & Best-in-Class Tech Support

Time is money—and we get it. That’s why we offer:

• Same-Day Shipping for orders placed before 12 PM Central (Terms & Conditions apply).

• Nationwide delivery to job sites, rental fleets, and contractor warehouses.

• Live technical assistance from real-world sprayer professionals.

• Verification Tools: Send in your old part number or a photo—our team verifies compatibility for you.

No more waiting for phone callbacks or guessing if parts will fit your system.

Pro Tips for Long-Term Filter Assembly Maintenance

Extend the life of your Mark VII Max with these expert insights:

1. Replace Filter Elements Regularly
   Maintain peak spray performance by replacing filters after heavy spray runs or sticky coatings.

2. Lubricate O-Rings at Each Service
   Use Graco TSL or silicone grease with every replacement to optimize seal longevity.

3. Stock Spare Filters & O-Rings On-Site
   Label parts clearly—e.g. “Mark VII Max Filter Kit” or “Graco Magnum X7 seals”—so techs don’t second-guess under pressure.

4. Flush and Inspect Post-Job
   Avoid residue build-up by flushing with compatible solvents and inspecting seals before storage.

5. Log Service Intervals
   Keep a simple tracker by coating loadout or gallonage to catch wear before it impacts performance.

Compatible Models and Cross‑Reference Guide

These CMSs and professionals should note that Mark VII Max filter kits can often cross-fit:

• Mark VII Max airless sprayers

• Mark X Max systems with shared coiled filter housing

• GMAX 7900 gas rigs

• Graco Magnum Magnum Project Painter Plus 257025

• Graco TrueCoat 360 Electric TrueAirless sprayer

Each listing shows which part numbers have been superseded or updated by Graco.

Why Contractors Choose Sprayersandparts.com

• Factory-Authorized Quality
  You get only Graco-certified, OEM-grade filter assembly components.

• Explore, Compare, and Shop Easily
  A single platform handles parts, diagrams, cross-refs, and fast shipping.

• Save Time & Avoid Confusion
  With tech support, detailed specs, and visual tools, you’ll order right the first time.

• Peace of Mind, Every Rebuild
  Risk-fail parts are eliminated. Performance, backed with warranty and expertise—is replaced.

Ready to Upgrade Your Filter Assembly?

Add genuine Graco Mark VII Max filter assembly parts to your cart now—including housings, filters, seals, and accessories—and experience:

• Smoother spray patterns

• Extended seal life

• Fewer emergency call-outs

• Cleaner, safer job sites

Your fleet, your crew, and your bottom line will thank you.
