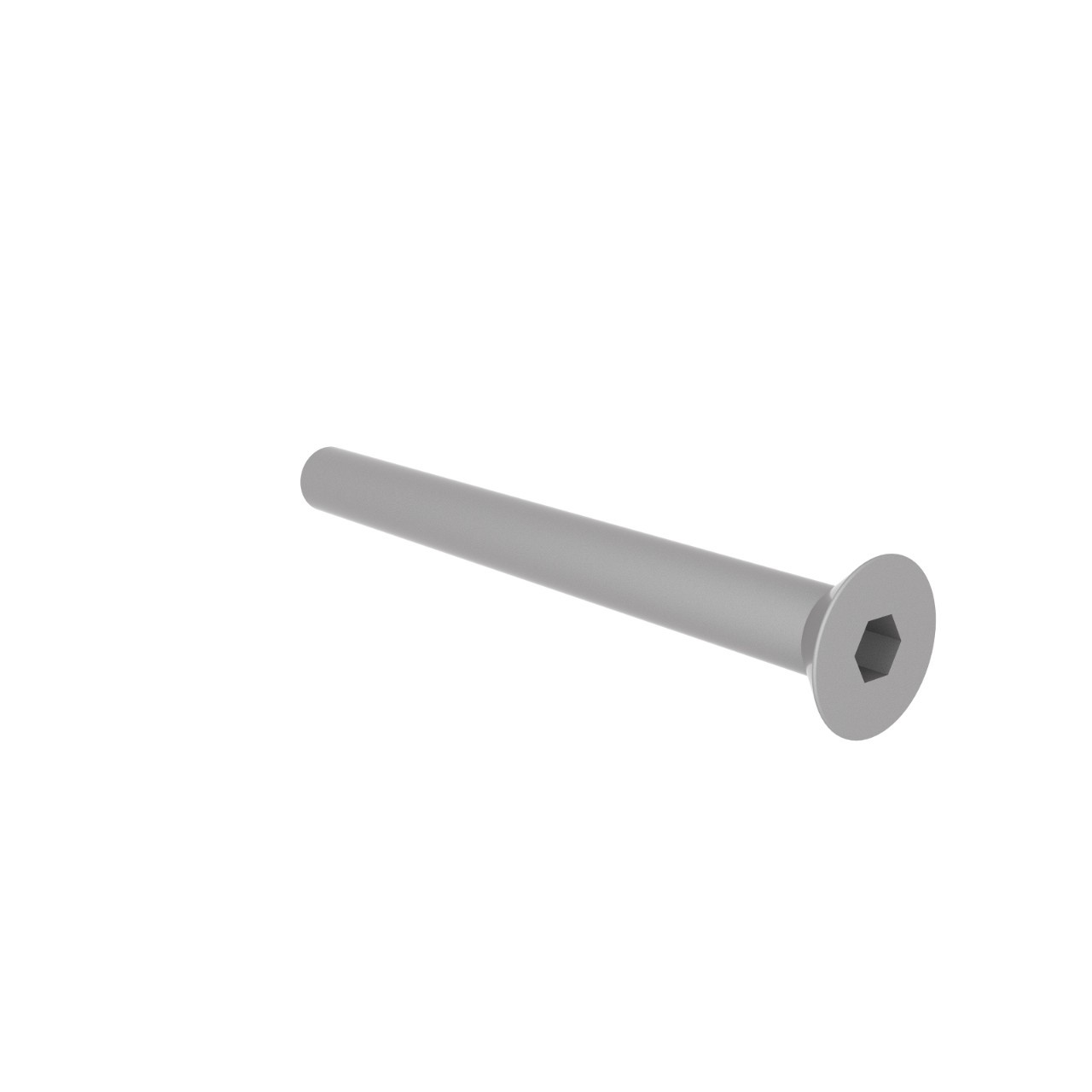

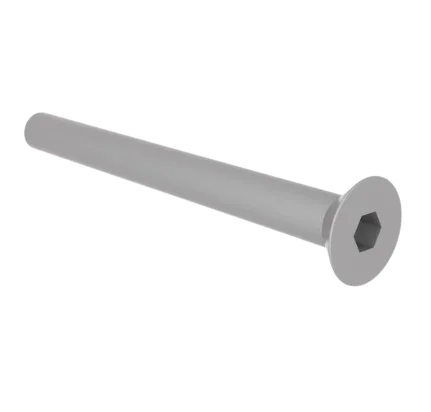

Graco 120223 Screw FHCS 10-24 x 2 — Product Overview
The Graco 120223 Screw FHCS 10-24 x 2 is a high-quality flat-head socket screw designed for secure assembly in Graco spray equipment. Engineered for durability, it ensures reliable fastening under high-pressure and vibration conditions.
Compatible Machines
- Graco GH 130 — used in pump assemblies and manifold mounting
- Graco GH 200 — secures valve bodies and pump modules
- Graco GH 230 — used in various internal connections
- Graco GH 300 — ensures stable assembly of high-pressure components
Key Features & Benefits
- Durable construction: Heat-treated steel resists stripping and corrosion
- OEM fit: Precisely designed to meet Graco specifications for exact fit
- Flat-head design: Flush mounting for smooth assembly and compact installation
- Reliable fastening: Maintains assembly integrity under pressure and vibration
Applications
Used primarily in Graco pump assemblies, valve bodies, and manifold connections, this screw ensures that all components remain securely fastened during operation, reducing the risk of leaks or misalignment.
Installation & Maintenance Tips
- Use the correct hex wrench to prevent stripping.
- Do not overtighten; follow Graco torque specifications.
- Inspect screws periodically for wear or corrosion and replace as needed.
Frequently Asked Questions
No, it is intended for specific models such as GH 130, GH 200, GH 230, and GH 300. Always verify compatibility with your equipment manual.
Reuse is possible if the threads are undamaged. Replace if there is any stripping, corrosion, or deformation to maintain safe operation.
