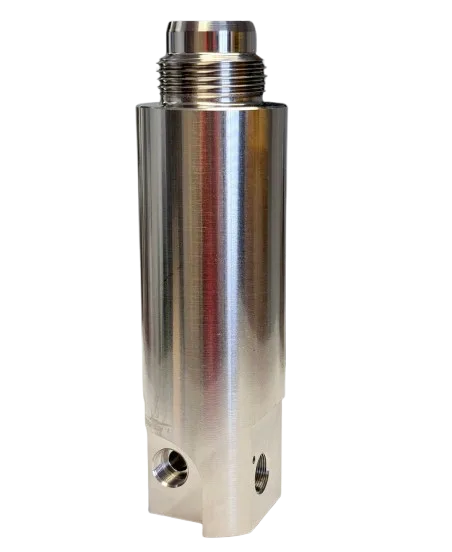

Graco 15C838 Filter Base

Graco 15C838 Filter Base – In-Depth Overview

Compatible Machines

• Graco Ultra Max II 695
• Graco Ultra Max II 795
• Graco Ultra Max II 1095
• Graco Ultra Max II 1595

Product Description

The Graco 15C838 Filter Base is a high‑performance manifold that supports the filter assembly of your Ultra Max II sprayer. It ensures reliable fluid flow while filtering out particulates that could damage the pump. Built to withstand the demanding conditions of professional painting, this base helps to maintain consistent spray quality and extends component life.

Key Features & Benefits

• Durable aluminum‑alloy construction for strength with light weight
• Precision‑machined flow passages minimize turbulence and pressure drop
• Integrated filter housing reduces dead space and simplifies maintenance
• Viton O‑rings or compatible seals ensure long-lasting, chemical‑resistant sealing

Technical Specifications

Applications & Use Cases

• Serves as the mounting base for filter elements in high-pressure sprayers
• Helps to protect internal pump components by filtering out debris
• Reduces fluid waste and dead volume with its low-profile, efficient design
• Facilitates routine maintenance with easy access to the filter bowl

Maintenance and Best Practices

• Inspect the filter base during each maintenance cycle to check for wear or damage.
• Replace O‑rings periodically to maintain a leak‑free seal, especially when using harsh solvents.
• Flush the filter bowl when changing coatings to avoid cross-contamination.
• Use the correct torque on mounting fasteners to avoid deformation or misalignment.
