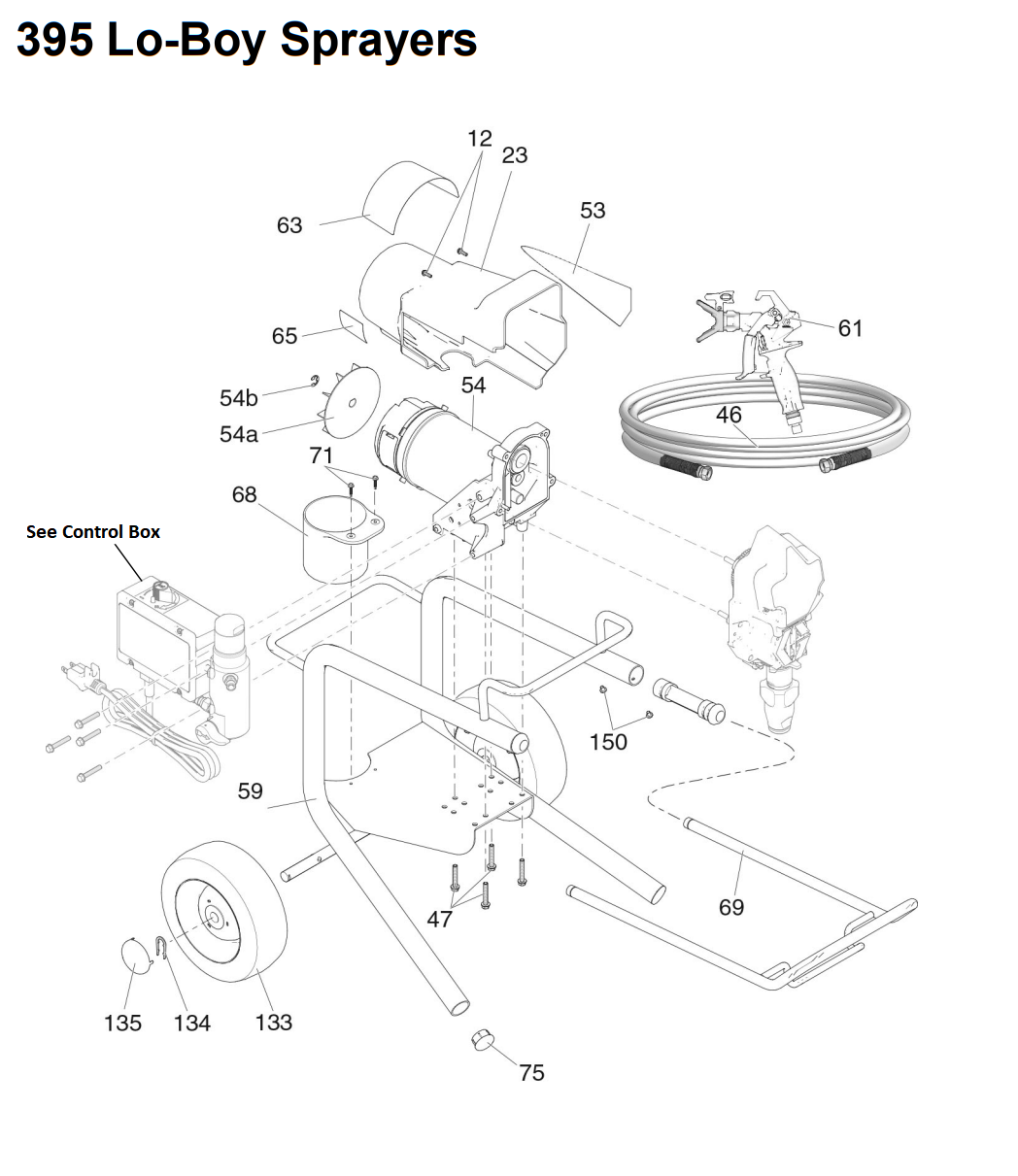

Graco 395 PC Lo-Boy Sprayer Parts (PART 1)

Complete Selection of Factory-Approved Graco 395 PC Lo-Boy Sprayer Parts

Graco 395 PC Lo-Boy is the entry point to Graco’s professional Ultra™ platform, yet it punches far above its weight. Thanks to a 7⁄8 hp TEFC DC motor, it delivers up to 0.54 gpm and supports 0.023″ tips all day long—perfect for residential repaints, light commercial interiors and cabinet factories where portability is king.The low-slung “Lo-Boy” chassis straddles a 19-litre pail, trimming setup time and keeping the centre of gravity low for stair work. Each 395 ships with a Chromex-plated piston, V-Max Blue™ packings and a lifetime-warranted Advantage Drive™ gear set—components that routinely outlast bargain imports by two spray seasons.

Why Choose Genuine Graco 395 PC Lo-Boy Parts?

• Endurance™ Chromex Pump — lab-tested to run two times longer than aftermarket steel rods before repack.
• ProConnect™ 1-Minute Pump Swap — swap a seized lower on-site without tools or a bench vise.
• SmartControl 1.0 keeps fan width within ±1 % so your cut-in lines stay razor-straight.
• Easy-Out™ Filter flushes from the inside-out, cutting solvent use up to 46 %.
• Lifetime Advantage Drive — hardened steel gears run whisper-quiet and are warrantied.

Key Performance Specs

One Parts Shelf, Multiple Money-Makers

Graco designs its Small Electric family around shared seals, graco tips and filters. Stocking 395 parts also keeps these rigs pumping:

• Graco 695 PC — identical Easy-Out filters and RAC X guards; our graco 695 parts kits drop into the same manifold.
• Graco 3400 Line Striper — shares piston seals, suction set and BlueMax™ hoses. Ideal when you stripe parking bays after repainting curb stops.
• Graco TrueCoat 360VSP Electric TrueAirless Sprayer — RAC X LTX tips interchange, simplifying tip inventory across handheld and cart rigs.
• Graco handheld sprayers like the Ultra Cordless — same gun filters and tip guards for rapid colour swaps.

Top-Moving OEM Parts & Upgrade Kits

1. 17C487 Endurance Pump Lower — Chromex rod + MaxLife™ packings.
2. 24Y472 Repair Kit — seats, balls, glands; fixes slow priming in 30 min.
3. 246215 RAC X LP Tips & Guards — spray 50 % lower pressure, 35 % less overspray.
4. 17Y297 Contractor PC Gun — 25 % lighter trigger force, adjustable finger positions.
5. SmartStart™ Pressure Monitor — logs gallons and sends maintenance alerts to the BlueLink™ app.

Pro Tips for Lifetime Reliability

• Daily — Power-Flush for 60 s, then add three drops of TSL™ to the wet-cup.
• Every 50 h — Inspect the Easy-Out filter; swap 50-mesh for latex, 100-mesh for stains.
• Every 200 h — Replace piston packings with the QuikPak cartridge (10 min, no vise).
• Quarterly — Grease Advantage Drive gears; a dry gear screams before it fails.
• Annually — Rebuild suction set, drain line and swap the graco paint sprayer attachments that see solvent.

Frequently Asked Questions

Will Lo-Boy parts fit a 395 Stand or Hi-Boy frame?

Absolutely. Pump, motor and electronics are identical; only the frame differs. Confirm you have ProConnect to swap lowers.

How long can I run a 0.023″ tip on 100 ft of hose?

The 395 maintains 2900 psi at the gun with ⅜″ main + ¼″ whip. Beyond 100 ft step up to a 695 for consistent pattern.

Can I spray elastomeric roof coatings?

Stay within 0.021″ tip and keep viscosity under 110 KU. Thick elastomerics belong on a 695 PC or 833 King.

Do you carry parts for my graco 3400 line striper?

Yes—filters, tips, suction tubes and gun repair kits share SKU strings with the 395, so one cart covers both rigs.

Ready to Keep Your 395 Printing Profit?

Click Add to Cart to lock in OEM durability, and the industry’s fastest fulfilment once you have a qualified order. Your next job doesn’t pause for parts—neither do we.
