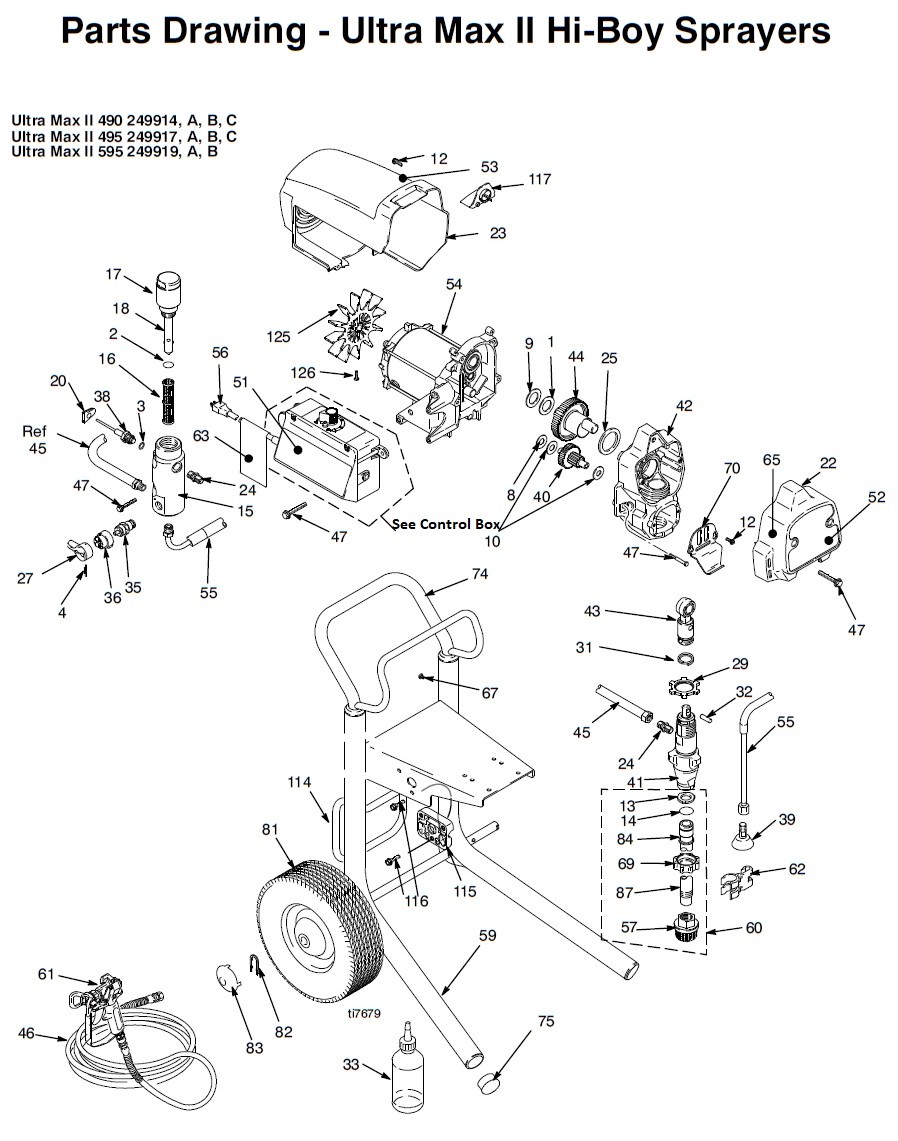

Graco Ultra Max II 495 Hi-Boy Sprayer

Graco 246382 | Easy Out Short Pump Manifold Filter (100 Mesh Blue)

Item No: -

Part Number: 246382

UPC Number: 633955921504

Graco 246382 is an Easy Out short pump manifold filter with 100-mesh (Blue) screening - ideal for pr...

$14.04

QTY:

Graco 246383 Tall Manifold 200 Mesh Filter (Red)

Item No: --

Part Number: 246383

UPC Number: 633955921511

Graco 246383 is a 200-mesh (Red) Easy Out manifold filter for fine materials (stains, lacquers, seal...

Retail Price: $21.60

You save: $6.91 (31.99%)

Our Price: $14.69

QTY:

Graco 246425 Short Manifold 30 Mesh Filter (Gray)

Item No: ---

Part Number: 246425

UPC Number: 633955921573

OEM Graco 246425 Short Manifold 30-Mesh (Gray) filter for reliable debris capture and smoother spray...

Retail Price: $11.80

You save: $3.3 (27.97%)

Our Price: $8.50

QTY:

Graco 107434 Thrust Bearing

Item No: 1

Part Number: 107434

UPC Number: 633955430051

Graco 107434 Thrust Bearing—OEM axial bearing for the drive/crank assembly. Stabilizes end-load, r...

$6.93

QTY:

Graco 117828 Encapsulated O-Ring Packing Kit

Item No: 2

Part Number: 117828

UPC Number: 633955020344

Graco 117828 Encapsulated O-Ring Packing Kit seals the joint between the manifold filter and manifol...

$23.22

QTY:

Graco 111457 Packing O-Ring

Item No: 3

Part Number: 111457

UPC Number: 633955460584

Graco 111457 Packing O-Ring is a durable PTFE seal designed to maintain consistent pressure and prev...

$19.76

QTY:

Graco 111600 Grooved Pin

Item No: 4

Part Number: 111600

UPC Number: 633955582996

Graco 111600 Grooved Pin is a genuine OEM part designed to secure the handle in the Prime/Drain Valv...

$6.30

QTY:

Graco 116073 E-10HP Thrust Washer

Item No: 8

Part Number: 116073

UPC Number: 633955980341

Graco 116073 E-10HP Thrust Washer reduces friction and maintains proper alignment in Graco airless s...

$6.30

QTY:

Graco 116074 Thrust Washer

Item No: 9

Part Number: 116074

UPC Number: 633955980358

Graco 116074 Thrust Washer helps reduce friction and maintain alignment in the drive mechanism of Gr...

$6.30

QTY:

Graco 116079 Thrust Bearing

Item No: 10

Part Number: 116079

UPC Number: 633955980365

Graco 116079 Thrust Bearing maintains proper alignment and reduces friction in the drive mechanism o...

$6.30

QTY:

Graco 117501 Slotted Hexagonal Washer Head Machine Screw

Item No: 12

Part Number: 117501

UPC Number: 633955017160

Graco 117501 Hexagonal Head Slotted Washer Machine Screw provides secure fastening for Graco airless...

$6.30

QTY:

Graco 115099 Garden Hose Washer Inlet Seal

Item No: 13

Part Number: 115099

UPC Number: 633955930162

Graco 115099 Garden Hose Washer Inlet Seal prevents leaks at the garden hose connection, ensuring pr...

$0.42

QTY:

Graco 103413 O-Ring Packing

Item No: 14

Part Number: 103413

UPC Number: 633955142169

Graco 103413 O-Ring Packing ensures a leak-free seal and consistent pressure in your Graco airless s...

$6.30

QTY:

Graco 15G455 Fluid Manifold

Item No: 15

Part Number: 15G455

UPC Number: 633955113602

Graco 15G455 Fluid Manifold ensures precise control and distribution of fluid in Graco airless spray...

Retail Price: $114.00

You save: $9.46 (8.30%)

Our Price: $104.54

QTY:

Graco 246384 Tall Manifold 60 Mesh Filter (Black)

Item No: 16

Part Number: 246384

UPC Number: 633955921528

Graco 246384 Tall Manifold 60 Mesh Filter (Black) protects your sprayer pump from debris, ensuring c...

Retail Price: $11.80

You save: $3.25 (27.54%)

Our Price: $8.55

QTY:

Graco 287902 Tall Manifold Filter Cap

Item No: 17

Part Number: 287902

UPC Number: 633955146747

Retail Price: $90.75

You save: $7.53 (8.30%)

Our Price: $83.22

QTY:

Graco 15B120 Transducer Grommet

Item No: 20

Part Number: 15B120

UPC Number: 633955017351

Graco 15B120 Transducer Grommet securely mounts the pressure transducer in your sprayer, protecting ...

$6.30

QTY:

Graco 287901 Front Cover

Item No: 22

Part Number: 287901

UPC Number: 633955146730

Retail Price: $56.75

You save: $3.11 (5.48%)

Our Price: $53.64

QTY:

Graco 287900 Painted Motor Cover

Item No: 23

Part Number: 287900

UPC Number: 633955146716

A Genuine OEM Replacement Part Graco 287900 Painted Motor Cover is a genuine OEM component designed...

Retail Price: $83.25

You save: $6.9 (8.29%)

Our Price: $76.35

QTY:

Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 24

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting ensures secure, leak-free connections in pumps and manifolds, maintainin...

$24.66

QTY:

Graco 180131 Thrust Bearing

Item No: 25

Part Number: 180131

UPC Number: 633955624924

Graco 180131 Thrust Bearing ensures smooth operation of your sprayer pump by supporting axial loads ...

$11.19

QTY:

Graco 187625 Drain Valve Handle

Item No: 27

Part Number: 187625

UPC Number: 633955588868

Graco 187625 Drain Valve Handle is a genuine OEM replacement part designed for precise control of th...

$9.83

QTY:

Graco 195150 Pump Jam Nut

Item No: 29

Part Number: 195150

UPC Number: 633955930902

Graco 195150 Pump Jam Nut is a critical component that secures the pump assembly, ensuring reliable ...

$9.47

QTY:

Graco 196750 Retaining Spring

Item No: 31

Part Number: 196750

UPC Number: 633955980518

Graco 196750 Retaining Spring is a durable component that keeps internal parts aligned for smooth, r...

$6.30

QTY:

Graco 196762 Straight Pin

Item No: 32

Part Number: 196762

UPC Number: 633955980532

Ensure secure and reliable operation of your Graco sprayer with the 196762 Straight Pin. Perfect for...

$8.44

QTY:

Graco 206994 Throat Seal Liquid

Item No: 33

Part Number: 206994

UPC Number: 633955309692

Maintain your sprayer’s performance with the Graco 206994 Throat Seal Liquid (TSL) - designed to p...

Retail Price: $15.60

You save: $0.28 (1.79%)

Our Price: $15.32

QTY:

Graco 222385 Med Alert Safety Label

Item No: 34

Part Number: 222385

UPC Number: 633955309135

$5.00

QTY:

Graco 239914 Drain Valve Kit

Item No: 35

Part Number: 239914

UPC Number: 633955787483

The Graco 239914 Drain Valve Kit replaces worn or leaking prime/drain valves to restore smooth primi...

Retail Price: $117.50

You save: $9.75 (8.30%)

Our Price: $107.75

QTY:

Graco 224807 Prime Valve Base

Item No: 36

Part Number: 224807

UPC Number: 633955364264

Ensure smooth priming and reliable operation of your Graco airless sprayer with the 224807 Prime Val...

$8.26

QTY:

Graco 243222 Pressure Transducer

Item No: 38

Part Number: 243222

UPC Number: 633955920880

Maintain precise pressure control and consistent spray performance with the 243222 Pressure Transduc...

Retail Price: $162.00

You save: $16.85 (10.40%)

Our Price: $145.15

QTY:

Graco 241920 Threaded Deflector

Item No: 39

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30

QTY:

Graco 244242 Combination Gear Repair Kit

Item No: 40

Part Number: 244242

UPC Number: 633955963375

Graco 244242 Combination Gear Repair Kit restores smooth gear function and prolongs the lifespan of ...

Retail Price: $147.00

You save: $15.29 (10.40%)

Our Price: $131.71

QTY:

Graco 246428 Endurance Pump

Item No: 41

Part Number: 246428

UPC Number: 633955950078

Durable Graco 246428 Endurance Chromex Pump designed for long life and smooth performance. Perfect O...

Retail Price: $388.00

You save: $53.93 (13.90%)

Our Price: $334.07

QTY:

Graco 287899 Drive Housing Repair Kit

Item No: 42

Part Number: 287899

UPC Number: 633955146693

Retail Price: $265.50

You save: $33.19 (12.50%)

Our Price: $232.31

QTY:

Graco 287053 Connecting Rod Kit

Item No: 43

Part Number: 287053

UPC Number: 633955922327

Graco 287053 Connecting Rod Kit keeps your sprayer running smoothly by transferring power from the m...

Retail Price: $95.75

You save: $7.94 (8.29%)

Our Price: $87.81

QTY:

Graco 287054 Crankshaft Repair Kit

Item No: 44

Part Number: 287054

UPC Number: 633955922334

Graco 287054 Crankshaft Repair Kit is a genuine OEM replacement designed to restore power and smooth...

Retail Price: $99.50

You save: $8.26 (8.30%)

Our Price: $91.24

QTY:

Graco 287003 Pressure Return Hose Coupled

Item No: 45

Part Number: 287003

UPC Number: 633955018365

Graco 287003 Pressure Return Hose Coupled is a durable OEM replacement hose designed for reliable fl...

Retail Price: $32.50

You save: $0.65 (2.00%)

Our Price: $31.85

QTY:

Graco 240794 BlueMax II Airless Hose

Item No: 46

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

Retail Price: $94.75

You save: $22.44 (23.68%)

Our Price: $72.31

QTY:

Graco 117493 Hexagonal Head Washer Machine Screw

Item No: 47

Part Number: 117493

UPC Number: 633955017146

Graco 117493 Hexagonal Head Washer Machine Screw is a durable OEM fastener designed for precise fit ...

$6.30

QTY:

Graco 244240 Return Hose Assembly

Item No: 55

Part Number: 244240

UPC Number: 633955963597

Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...

Retail Price: $70.00

You save: $5.32 (7.60%)

Our Price: $64.68

QTY:

Graco 253367 Power Cord

Item No: 56

Part Number: 253367

UPC Number: 633955034815

Retail Price: $93.00

You save: $7.72 (8.30%)

Our Price: $85.28

QTY:

Graco 246385 Inlet Strainer 7/8

Item No: 57

Part Number: 246385

UPC Number: 633955921535

Graco 246385 Inlet Strainer (7/8") keeps debris from entering your sprayer pump, helping maintain pe...

Retail Price: $15.80

You save: $5.06 (32.03%)

Our Price: $10.74

QTY:

Graco 246387 Stinger Tube Repair Kit

Item No: 60

Part Number: 246387

UPC Number: 633955921559

The Graco 246387 Stinger Tube Repair Kit is an OEM replacement kit designed to restore the outlet fl...

Retail Price: $48.00

You save: $2.64 (5.50%)

Our Price: $45.36

QTY:

Graco 288420 Contractor Airless Spray Gun

Item No: 61

Part Number: 288420

UPC Number: 633955215764

Graco 288420 Contractor Airless Spray Gun is built for professional painters who need precision, com...

Retail Price: $450.00

You save: $173.25 (38.50%)

Our Price: $276.75

QTY:

Graco 276888 Drain Line Clip

Item No: 62

Part Number: 276888

UPC Number: 633955018358

Graco 276888 Drain Line Clip securely holds the drain/prime hose and suction tube in place, preventi...

$6.30

QTY:

Graco 15H085 Warning Label

Item No: 63

Part Number: 15H085

UPC Number: 633955151116

$5.00

QTY:

Graco 195793 Warning Label

Item No: 65

Part Number: 195793

UPC Number: 633955918580

A Genuine OEM Safety Label Graco 195793 Warning Label is an important safety component that ensures...

$5.00

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 67

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

Graco 15E813 Jam Nut

Item No: 69

Part Number: 15E813

UPC Number: 633955088719

Graco 15E813 Jam Nut is a small yet essential part that locks the siphon hose securely to the fluid ...

$6.30

QTY:

Graco 15C146 Pail Hook Bracket

Item No: 70

Part Number: 15C146

UPC Number: 633955007178

Graco 15C146 Pail Hook Bracket is a durable OEM hook that keeps your paint pail stable on hi-boy spr...

$13.09

QTY:

Graco 287489 Hi-Cart Handle Assembly

Item No: 74

Part Number: 287489

UPC Number: 633955195936

Genuine Graco replacement part designed for easy maneuvering of Hi-Cart airless sprayers. Durable an...

Retail Price: $163.50

You save: $17 (10.40%)

Our Price: $146.50

QTY:

Graco 108691 Tubing Plug

Item No: 75

Part Number: 108691

UPC Number: 633955500181

Graco 108691 Tubing Plug is a genuine OEM end cap that seals open tubing on Graco Hi-Boy and Lo-Boy ...

$7.51

QTY:

Graco 106062 Semi Pneumatic Wheel

Item No: 81

Part Number: 106062

UPC Number: 633955571334

Graco 106062 Semi-Pneumatic Wheel is a durable, low-maintenance OEM replacement for Graco Hi-Boy spr...

Retail Price: $72.00

You save: $5.47 (7.60%)

Our Price: $66.53

QTY:

Graco 15B999 Retaining Clip

Item No: 82

Part Number: 15B999

UPC Number: 633955018181

Graco 15B999 Retaining Clip is a genuine OEM part designed to securely hold components in place with...

$6.30

QTY:

Graco 104811 Hub Cap

Item No: 83

Part Number: 104811

UPC Number: 633955129023

The Graco 104811 Hub Cap is a genuine OEM component designed to protect and secure the wheel hub are...

$10.05

QTY:

Graco 15B652 Suction Swivel Washer

Item No: 84

Part Number: 15B652

UPC Number: 633955017795

Graco 15B652 Suction Swivel Washer is an OEM sealing washer designed to prevent leaks and maintain p...

$6.30

QTY:

Graco 15B506 Intake Suction Tube

Item No: 87

Part Number: 15B506

UPC Number: 633955017689

Graco 15B506 Intake / Suction Tube is an OEM replacement that ensures smooth and reliable paint flow...

Retail Price: $39.70

You save: $0.79000000000001 (1.99%)

Our Price: $38.91

QTY:

Graco 15D281 Cart Stand Hanger

Item No: 114

Part Number: 15D281

UPC Number: 633955031722

The Graco 15D281 Cart Stand Hanger provides sturdy support for Graco sprayer carts and stands, ensur...

$27.71

QTY:

Graco 15C982 Cart Camera

Item No: 115

Part Number: 15C982

UPC Number: 633955031524

The Graco 15C982 Cart Camera is an OEM mechanical cam component for Graco cart-style sprayers, ensur...

$11.37

QTY:

Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 116

Part Number: 114531

UPC Number: 633955801691

A durable OEM fastening screw for critical Graco assemblies: Part # 114531 – Hex‑Head Machi...

$6.30

QTY:

Graco 15G447 Shield Plug

Item No: 117

Part Number: 15G447

UPC Number: 633955113640

The **Graco 15G447 Plug Shield** is an OEM protective plug that seals and shields unused ports on Gr...

$15.84

QTY:

Graco 15D088 Motor Fan

Item No: 125

Part Number: 15D088

UPC Number: 633955031562

The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...

Retail Price: $35.00

You save: $0.7 (2.00%)

Our Price: $34.30

QTY:

Graco 115477 Pan Head Torx Screw

Item No: 126

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$4.41

QTY:

Unlock Maximum Uptime with Quality Graco Ultra Max II 495 Hi-Boy Sprayer Spares

When Graco Ultra Max II 495 Hi-Boy Sprayer performance and reliability matter, professional painters and contractors turn to SprayersandParts.com. We offer a factory-authorized selection of genuine Graco airless paint sprayer parts, from the high-output Ultra Max II 695 ProContractor Series Electric Airless Sprayer to precision-engineered nozzles, hoses, pumps, and valves.

Whether you’re managing a jobsite full of seasoned rigs or replacing critical wear parts, our intuitive site makes it easy to spec, source, and ship—all in one friction-free stop.

Why Choose Genuine Graco Ultra Max II 495 Hi-Boy Sprayer Parts?

The Graco Ultra Max II 495 Hi-Boy is built for high-volume output, spraying up to 0.54 gallons per minute, supporting a maximum tip size of .023 inches, and operating with SmartControl 3.0 digital pressure management. It’s a proven performer on commercial interiors, residential exteriors, and high-efficiency coatings.

To protect that performance, you need OEM-grade parts—not third-party imitations.

✅ Built to Exact Tolerances for Maximum Profitability

Every Graco part is engineered to integrate seamlessly with factory systems. That means less guesswork, faster repairs, and tighter quality control—resulting in fewer callbacks and higher productivity.

✅ Tested for Material Compatibility & PSI Ratings

All Ultra Max II 495 components are pressure-tested and solvent-compatible. Whether you’re spraying latex, acrylics, elastomerics, or oil-based primers, OEM parts hold up to jobsite rigors that generic brands often can’t.

✅ Backed by Manufacturer Warranties & Expert Support

Every item in our catalog is Graco-authorized and supported by our own hands-on technical expertise. No matter how complex the assembly, we can help you source the right part fast—and ensure it works exactly as intended.

Key Features & In-Depth Specs for Confident Ordering

At SprayersandParts.com, we go beyond part numbers. Every listing includes essential product data to help you make smart buying decisions:

Precise Dimensions – Avoid costly fitment errors with verified measurements.
Material Grades – Know whether you're working with Viton, Teflon, urethane, or leather seals for full chemical compatibility.
Pressure Limits – Match up with the sprayer’s operational PSI to prevent failures.
Interchange Charts – See cross-compatibility with other units like the Graco Magnum X7, 650 Pro, or 3400 FieldLazer.

Whether you’re replacing a worn-out piston, upgrading a spray gun, or rebuilding the full pump assembly, we make it easy to locate the right parts with zero guesswork.

Our Most Popular Ultra Max II 495 Hi-Boy Sprayer Spares

We stock thousands of Graco Ultra Max II 495 Hi-Boy sprayer spares ready for immediate shipment. Here are some of the most requested parts:

Graco Pump Repair Kits

Restore your pump to like-new performance with complete rod, piston, O-ring, and packing kits.

Motor & Drive Components

Keep your sprayer running at peak power with OEM motor brushes, fan kits, and gearboxes.

Prime Valve Assemblies

Essential for every daily spray cycle—our factory-built assemblies provide a leak-free seal.

Pressure Control Boards

Replace worn digital displays and regulators to regain smooth pressure control.

Graco Filters & Strainers

Prevent tip clogs and finish flaws with high-efficiency inline and manifold filters.

Spray Guns & Hoses

Select from contractor-favorite spray guns, whip hoses, and high-pressure main lines.

Use our Graco paint sprayer parts diagram or exploded views to identify exact fitment in seconds.

Fast Shipping & Contractor-Grade Service

At SprayersandParts.com, speed matters. Orders confirmed by 12 PM Central Time qualify for same-day shipping directly from the Graco warehouse (Terms & Conditions apply). That means minimal downtime—even on urgent jobs.

Need Help Sizing or Troubleshooting?

Our team of veteran sprayer techs is ready to assist. Whether you're decoding pressure loss, diagnosing motor stall, or searching for a superseded part number, we provide pro-level insight that online-only sellers simply can't match.

Pro Tips to Extend the Life of Your Graco Ultra Max II 495

The Ultra Max II 495 is a durable rig—but every sprayer performs better with planned maintenance. Here’s how to extend your sprayer’s life and boost jobsite uptime:

Log Regular Maintenance

Use a whiteboard, app, or calendar to track pump hours, filter changes, and seal kit swaps. Staying ahead of wear keeps repairs quick and predictable.

Replace Lubricant with Every Seal Kit

Pair new seal kits with fresh throat seal lubricant (TSL) to protect your rod and packings. A small investment extends internal longevity.

Keep Spares On Hand

Avoid scrambling during a critical project—stock essentials like:

Graco airless paint sprayer accessories
Extra Graco filters
Spray tips and guards
Trigger repair kits

Organize with Color-Coded Storage

Separate similar small parts like Graco 3400 components, Magnum X7 gun parts, and spray guards using color-coded bins. It’s a small step that saves big time in the field.

Order Genuine Graco Ultra Max II 495 Hi-Boy Sprayer Spares Today

Don't risk downtime with off-brand alternatives. Trust SprayersandParts.com for authentic Graco Ultra Max II 495 Hi-Boy replacement parts that keep your operations on schedule and your reputation intact.

Verified OEM Fitment
Expert Support from Sprayer Pros
Fast, Nationwide Shipping
Detailed Specs, Images & Diagrams

Ready to restore uptime and reduce jobsite stress? Add the Ultra Max II 495 Hi-Boy spares to your cart now and feel the Graco difference on tomorrow’s project.

Graco Ultra Max II 495 Hi-Boy Sprayer

Unlock Maximum Uptime with Quality Graco Ultra Max II 495 Hi-Boy Sprayer Spares

Why Choose Genuine Graco Ultra Max II 495 Hi-Boy Sprayer Parts?

✅ Built to Exact Tolerances for Maximum Profitability

✅ Tested for Material Compatibility & PSI Ratings

✅ Backed by Manufacturer Warranties & Expert Support

Key Features & In-Depth Specs for Confident Ordering

Our Most Popular Ultra Max II 495 Hi-Boy Sprayer Spares

Graco Pump Repair Kits

Motor & Drive Components

Prime Valve Assemblies

Pressure Control Boards

Graco Filters & Strainers

Spray Guns & Hoses

Fast Shipping & Contractor-Grade Service

Need Help Sizing or Troubleshooting?

Pro Tips to Extend the Life of Your Graco Ultra Max II 495

Log Regular Maintenance

Replace Lubricant with Every Seal Kit

Keep Spares On Hand

Organize with Color-Coded Storage

Order Genuine Graco Ultra Max II 495 Hi-Boy Sprayer Spares Today

ADDRESS

INFORMATION

YOUR ACCOUNT
