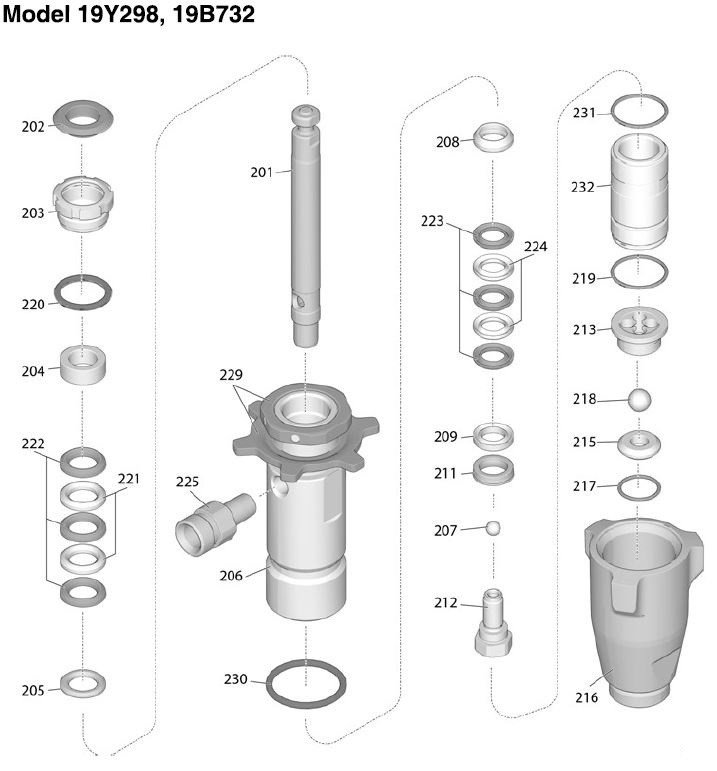

Graco 650 XT Hi-Boy pump parts Breakdown Electric Airless Sprayer

Graco 650 XT Hi-Boy Pump Parts—Factory Fresh & Field-Proven

Graco 650 XT Hi-Boy electric airless sprayer is the productivity bridge between a trim-friendly 495 PC and a muscle-heavy GMax 7900. Powered by a 3.2 HP brushless Xtreme-Torque™ motor, this sprayer moves 1.9 gpm at 3300 psi through tips to .039 in, yet fits through a 32-inch doorway. That versatility is why it’s found on commercial interiors, tilt-up façades, and high-build drywall skim jobs everywhere. When a chromed rod scars or a 60-mesh manifold filter plugs, uptime gets expensive fast. Contractors trust SprayersAndParts.com for factory-serialized Graco Sprayer Parts that bolt in, prime up, and get revenue flowing again. Our digital exploded view pins every screw—from the SmartControl® 3.0 board to the stainless ball seat. One click checks real-time stock and drops parts into a single cart—no juggling vendors, no partial shipments.

Why Stay Genuine?

• Chromex® + Vortex longevity. OEM rods wear a nickel-diffusion Chromium layer and vortex lube ports, lasting twice the hours of flash-chrome clones.
• Exact SmartControl firmware. Boards arrive pre-flashed and hold ±1 % pressure from 400 psi fine finish to full block-fill blast.
• 3300 psi burst assurance. Manifold blocks and hoses are hydro-tested at 150 % rating—critical during heavy elastomeric recirculation.
• Lifetime Advantage Drive™ protected. Mix in non-OEM gears and you void coverage—stay genuine, keep resale value.

Key Technical Snapshot

Cross-Fleet Compatibility—One Bin, Many Rigs

Graco’s modular design means your 650 XT stock keeps more than one sprayer in the fight:

• GMax 5900 Gas Sprayer—shares 60-mesh filter, tip guard, and Chromex rod; perfect for mixed electric-gas fleets.
• Ultra Max II 795 PC Pro—identical board algorithm; pump lower swaps with only a pin length change.
• Magnum XR7 & Pro X19—same RAC X guard and manifold filter via adapter kit—ideal for rental yards balancing DIY and pro rigs.
• 395 & 495 PC Electric—filter, guard, and many Graco O-rings match, helpful when stocking parts for graco 395 paint sprayer.
• TrueCoat 360 VSP—LP tips keep fan geometry consistent, so trim touch-ups match the 650 finish.

Smart Accessory Bundles that Stretch Pump Life

1. Endurance™ Pump Lower. Pre-primed swap-out in under 60 s—no bench vise, just two pins.
2. BlueMax II Hose Kit. 50 ft × ¼ in main + 3 ft whip dampen pulsation, adding 20 % seal life.
3. RAC X LP & FFLP Tip Set. Twelve patterns cut overspray by half and reduce amp draw.
4. Pump Armor® Winter Pack. Anti-rust fluid, cam-lock, storage plug—wake up spring-ready.

Pro Maintenance Blueprint—Five Habits for 2 000-Hour Pumps

1 • Track gallons & hours. Swap packings every 1 000 L latex / 500 L oil.
2 • Flush warm. 40 °C water dissolves acrylic twice as fast; half-pressure back-flush keeps grit off the transducer.
3 • TSL™ every break. Two drops keep Chromex rods mirror-bright.
4 • Monthly torque. Crankcase bolts 20 N·m; loose bolts hammer gears.
5 • Stock redundancy. One $75 filter + $220 pump kit beat a $5 000 delay.

Add to Cart—Get Back to Spraying

Open the live parts list, tick your pump kit, filter, rod and guard, then hit Add to Cart. One freight fee, one tracking link, one bullet-proof fix—see you on tomorrow’s jobsite.
