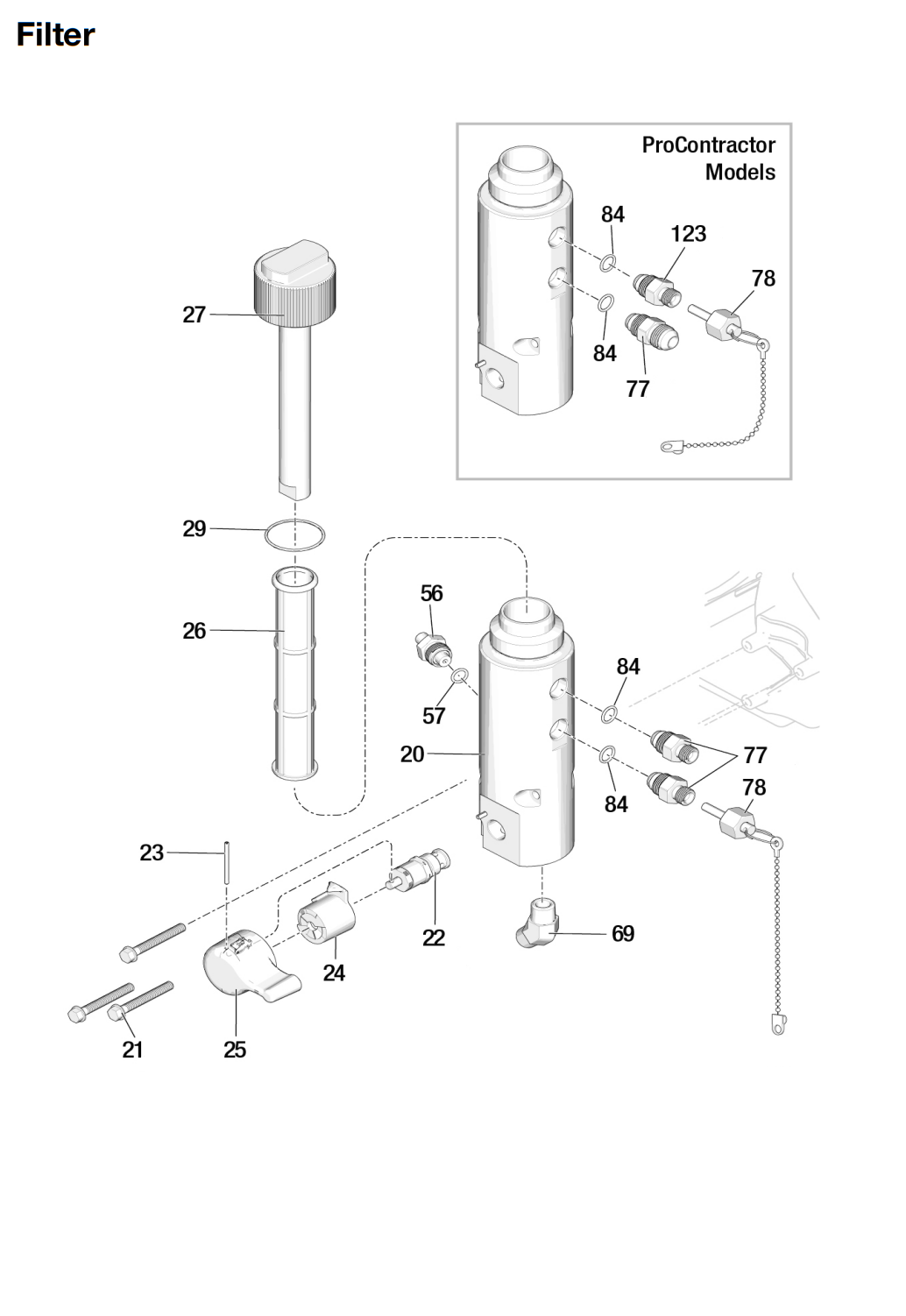

Graco 695 XT Standard Pro Hi‑Boy Filter Breakdown Electric Sprayer Parts

When high-performance matters on your commercial or residential painting job, pros reach for the Graco 695 XT Standard Pro Hi-Boy Filter Breakdown Electric Airless Sprayers—and when it’s time for maintenance or upgrades, they turn to Sprayersandparts.com. Whether you’re searching for Graco 695 XT filters, OEM replacement parts, or performance-enhancing accessories, we make it easy to spec, source, and ship with zero friction and total confidence.

Designed for serious contractors who demand speed, reliability, and precision, the Graco 695 XT Hi-Boy model handles large-scale jobs with ease. But even the toughest machine needs proper care—and that’s where our premium-grade parts and filter breakdown essentials come in.

Why Choose Genuine Graco 695 XT Standard Pro Hi-Boy Filter Breakdown Electric Airless Sprayers Parts?

With dozens of lookalike components flooding the market, it’s tempting to go aftermarket. But smart contractors know: only genuine Graco parts are engineered for the precision, longevity, and compatibility needed to get professional results, job after job.

✔️ Built to Exact Tolerances for Maximum Profitability

Graco OEM parts are CNC-machined and lab-tested to ensure perfect fit, flow rate, and material compatibility. That means fewer call-backs, less downtime, and more money in your pocket.

✔️ Engineered for Chemical Compatibility & Pressure Performance

From elastomer seals to stainless steel filters, every Graco component is designed to withstand intense pressures and the harsh solvents common in today’s coatings.

✔️ Supported by Manufacturer Warranties & Expert Tech Support

Get peace of mind knowing your parts are backed by both Graco’s warranty and Sprayersandparts.com’s in-house expertise. If you’ve got questions about fit, compatibility, or installation, our team is just a call or click away.

Whether you’re troubleshooting a filter clog, upgrading your gun assembly, or stocking up on gaskets and seals for your Graco 695 XT Standard sprayer, we’re your one-stop solution.

Explore the Graco 695 XT Filter Breakdown & Essential Replacement Parts

The Graco 695 XT Standard Pro Hi-Boy is a powerful electric airless sprayer built to handle large commercial interiors, exteriors, and high-volume coating jobs. Its advanced filtration system ensures smooth flow and clean spray patterns, but like any hard-working tool, it needs periodic maintenance.

Here’s a breakdown of essential filter-related and functional parts that should be in every contractor’s toolkit:

1. Manifold Filters (Pump Filters)

Keep debris out of the spray system and prevent tip clogging. Available in 30-mesh (for heavier coatings) and 60-mesh (for lighter materials), these in-line manifold filters are among the most commonly replaced components.

2. Gun Filters

Installed in the spray gun handle, gun filters work in tandem with manifold filters to provide final-stage filtration. Replace frequently to ensure tip life and spray consistency.

3. Inlet Strainers (Suction Filters)

These are your first line of defense against contaminants in the paint bucket. Replace worn or clogged strainers to maintain priming efficiency and protect the pump.

4. Filter Housing Kits

These ensure your filters sit securely without leaks or flow disruption. If you’ve got leaks or broken threads, a filter housing kit is a smart upgrade.

5. Drain Valves & Prime Valves

A vital part of the pressure control system, these valves direct paint back to the bucket during priming. Keeping them clean and leak-free maintains consistent pressure and reduces startup time.

Key Features & Specs That Matter

Each product listing on Sprayersandparts.com includes:

Filter Mesh Ratings: Know the exact filtration level (20, 30, 60, or 100 mesh) for each use case.
Thread Types & Diameters: Ensure your replacements screw in correctly—metric vs SAE threads can cause issues.
Material Specifications: From stainless steel filter cores to high-density polypropylene end caps, we highlight what goes into each part.
Pressure Ratings: Verify your components can handle the 3300 PSI max output of your Graco 695 XT sprayer.

Have a fleet with mixed models? Whether you're cross-referencing with a Graco 230 Paint Sprayer, Ultra Max 695, or even legacy units like the Graco 7900, our compatibility charts ensure you buy with confidence.

Fast Shipping and Pro-Level Support

At Sprayersandparts.com, we know every minute counts when your rig is down. That’s why:

Orders confirmed by 12 PM Central ship same-day (Terms & Conditions apply)
Nationwide delivery in 24–72 hours
Dedicated product experts available for live support

Need help matching a part number? Unsure whether to go with a 60-mesh or 100-mesh filter? Our team of experienced technicians is here to guide you before you click “Buy.”

Pro Tips for Long-Term Performance and Uptime

To get the most out of your Graco 695 XT Hi-Boy sprayer, follow these pro tips and habits used by seasoned contractors:

Log Your Service Intervals

Use a maintenance log to track filter replacements, pump rebuilds, and valve checks. Staying ahead of wear prevents costly breakdowns on big jobs.

Pair Seal Kits with Lubricant

Always use Graco TSL (Throat Seal Liquid) when installing new packings or seal kits. It extends life and prevents dry starts.

Stock Common OEM Parts

Keep spares like gun filters, seals, and pressure control switches on hand. That way, you can swap and go without waiting for shipping.

Use Color-Coded Bins for Organization

Store small parts—like Graco 695 filters, spray tips, and gaskets—in labeled bins to reduce time wasted on-site hunting for the right piece.

Ready to Boost Uptime and Finish Jobs Faster?

Add genuine Graco 695 XT Standard Pro Hi-Boy Filter Breakdown Electric Airless Sprayer parts to your cart today and start your next job with the confidence only OEM components provide. Whether you're tackling a large office repaint, a textured ceiling coating, or a multi-room remodel, quality parts make all the difference.

Don’t forget to explore related essentials like:

✅ Graco Cordless Sprayer Parts
✅ Graco Paint Sprayer Guards
✅ Spray Tips and Tip Extensions
✅ Pump Repair Kits and Inlet Valves
✅ Graco 695 XT power cords and switches

The Bottom Line

With professional-grade filtration, unmatched engineering quality, and expert-level support, the Graco 695 XT Standard Pro Hi-Boy remains a favorite among high-volume painters across the country. And when it’s time for maintenance or replacement, Sprayersandparts.com delivers the speed, precision, and expertise you need to find, fit, and finish faster.

Get started now—shop Graco 695 XT filter and sprayer parts today and keep your jobsite running at full throttle tomorrow.
