695 XT Standard Pro Hi-Boy turns blank walls into billable square footage fast. A 2.0 HP brushless Xtreme-Torque™ motor and Endurance™ MAXLIFE pump push 0.95 gpm (3.6 L min-1) at 3 300 psi, eating up block-filler or elastomeric with a .031-in tip all day long. When a rod scar, seized piston, or clogged graco filters stalls production, every minute chews profit. That’s why pros turn to SprayersAndParts.com—the only supplier that stocks every serialized Graco Sprayer Parts you need. Our online exploded diagram drills from the SmartControl® board down to the piston back-up ring. Click and drop the SKU into a single cart. Need a magnum LTS 17 paint sprayer manual for the rental crew or a matched ultra max ii 695 procontractor series electric airless sprayer board?

Why Insist on Genuine 695 XT Parts?

Chromex® rods run 2× longer. A diffusion-bonded chrome layer resists silica fillers far better than flash-chrome clones.
V-Max Blue™ packings hold seal at 120 °F. Imitation leather seats flatten fast, scar rods and leak—multiplying cleanup and callbacks.
3 300 psi safety margin. OEM manifolds, BlueMax™ hoses and RAC X™ guards survive 4 950 psi hydro-tests, crucial during reverse-flow tip cleaning.
Pressure accuracy ±1 %. Pre-flashed SmartControl® boards track 400 psi fine-finish fans just as tightly as full-tilt roof primer runs.
Warranty stays intact. Non-OEM seals void Graco’s Lifetime Advantage Drive™ coverage—stay genuine, protect resale value.

Core Specs & Top-Mover Kits

Max Working Pressure	3 300 psi / 227 bar
Max Flow	0.95 gpm / 3.6 L min-1
Motor	2.0 HP brushless Xtreme-Torque™
Packing Kit	19B195 V-Max Blue™ (rod, seats, seals)
Piston Rod	19B201 Chromex® stainless
Manifold Filter	181072 60-mesh Easy-Out™
Guard / Tips	RAC X™ blue—fits all graco spray tips and guards

Cross-Fleet Compatibility — One Parts Bin Covers Many Rigs

Graco’s modular DNA means stocking 695 XT parts keeps multiple sprayers billable:

Ultra Max II 695 ProContractor. Identical piston rod, filter core and tip guard; board re-flashes in minutes.
GMAX 5900 Gas. Shares RAC X guard, inlet strainer and many O-rings—ideal for mixed electric-gas fleets.
Magnum Project Painter Plus. Tip guard and manifold filter match via nylon adapter—keep graco project painter plus parts alongside 695 spares.
Classic 490 PC Pro. Chromex rod and 60-mesh filter interchange, streamlining crews that bounce between trim and block-fill.
Fine-Finish HVLP & Guns. LP tips preserve fan geometry so graco fine finish guns match 695 wall passes without haloing.

Smart Accessory Bundles—ROI in One Click

Endurance™ Pump Lower. Pre-primed swap-out in 60 s—no bench vise, just two pins.
BlueMax II Hose Kit. 50 ft × ¼ in main + 3 ft whip dampens pulsation, adding 20 % seal life.
LP & FFLP Tip Box. Twelve patterns slash overspray 50 % and reduce amp-draw—perfect for generator nights.
Pump Armor® Winter Pack. Anti-rust fluid + cam-lock plug—wake up spring-ready.
20–40 in Telescoping Pole. A best-selling Graco sprayer accessories trio: pole, 45° swivel and inline filter—fast ceiling cut-ins.

Maintenance Blueprint — Five Habits for 2 000-Hour Pumps

• Log gallons & hours. Packings every 1 000 L latex / 500 L elastomeric.
• Flush warm. 40 °C rinse dissolves acrylic twice as fast; half-pressure back-flush protects the transducer.
• TSL™ every break. Two drops keep Chromex rods mirror-bright.
• Monthly torque. Crankcase bolts 20 N·m; loose bolts pulverize gears.

Add to Cart → Track → Spray Tomorrow

Open the live parts list, tick your pump kit, filter, rod, hoses and tips, then smash Add to Cart. One freight fee, one tracking link, one bullet-proof fix—see you on tomorrow’s jobsite.

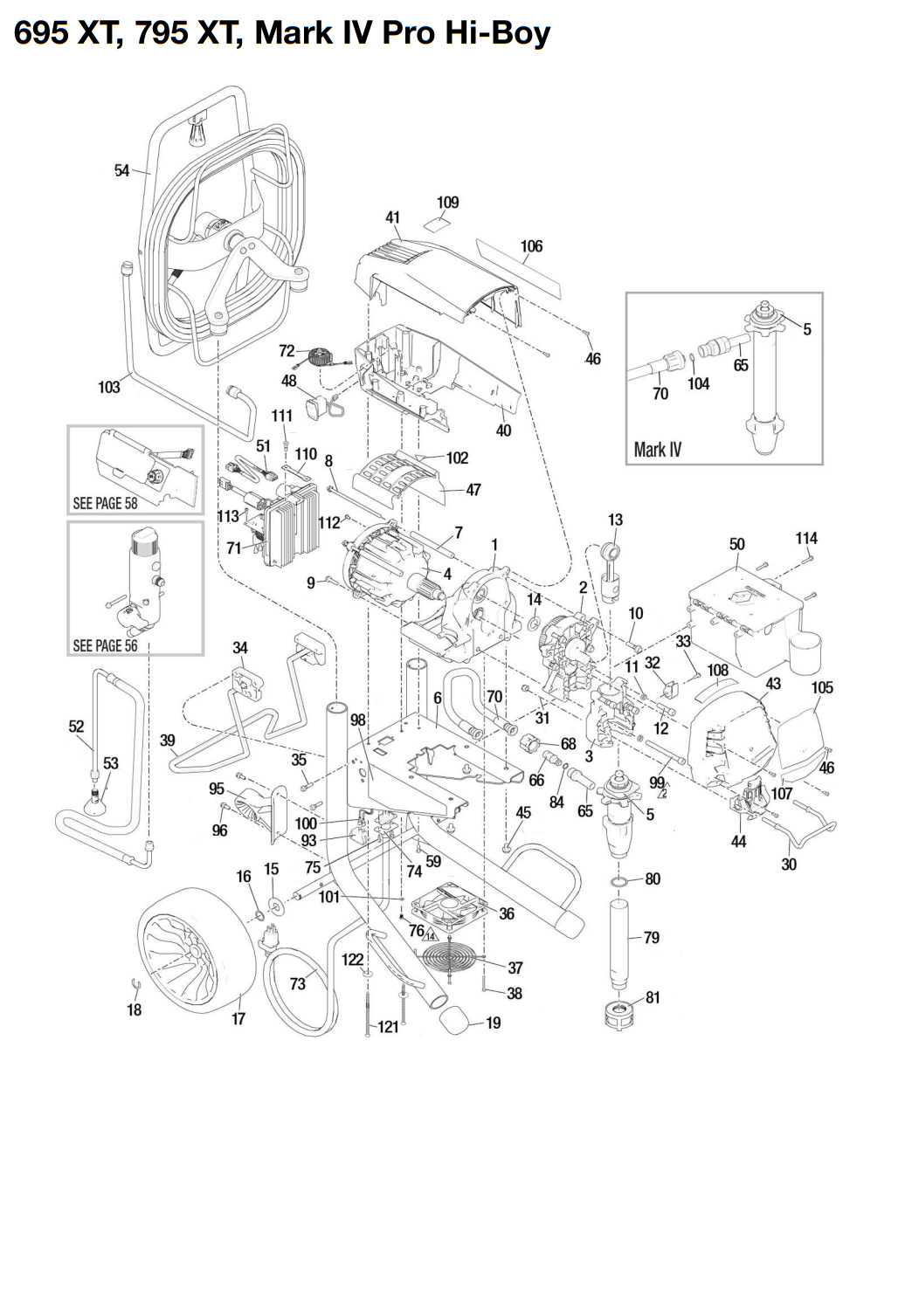

Graco 695 XT Standard Pro Hi-Boy Electric Airless Sprayers
