When seconds of downtime can cost hundreds of dollars, professional decorators, drywall finishers, and industrial contractors reach for Graco Ultra Max 695 displacement pump (OEM #239769). This factory-original fluid section restores the legendary 3000 psi / 21 MPa spraying performance baked into every Ultra Max 695 Series A rig — your key to laying down uniform texture, fireproofing, latex, elastomeric and solvent-borne coatings shift after shift.
Five Reasons Pros Trust the 239769 Pump
- Chromex™-hardened piston rod resists scoring, doubling life versus aftermarket chrome plating.

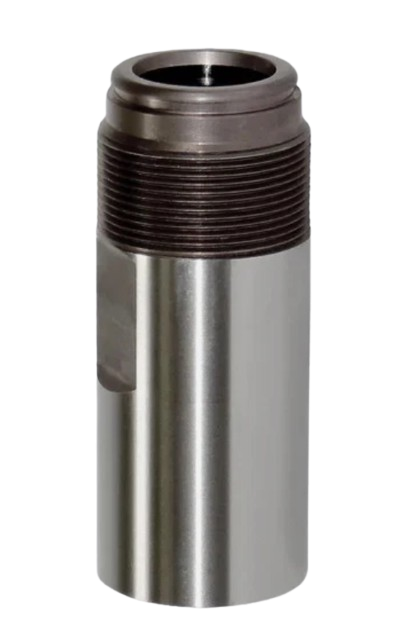

- Stainless-steel cylinder & carbide seat tolerate abrasive fillers used with graco texture guns while maintaining a factory 0.95 GPM flow at 3300 psi on modern 695 ProContractor frames.
- Vortex MaxLife™ packings slash seal wear, pushing service intervals beyond 6,000 litres of material.
- ProConnect™ swap-out design lets you slide out the old pump and click in the new in under one minute — no drivetrain teardown required, saving an average of 45 minutes of job-site labour.
- Factory engineering & warranty ensure chemical compatibility and 1-for-1 fit on every approved chassis, something copycat imports can’t promise.
Compatible Graco Sprayers & Texture Rigs
The 239769 pump ships pre-assembled and pressure-tested for every Ultra Max 695 Series A configuration listed in Graco service manual 308852: Hi-Boy, Lo-Boy, 120 V, 230 V and 100 V variants (Model 232134, 232135, 232136, 232137 & 232138). In addition, contractors routinely install it on:
- Ultimate Mx 695 rigs sharing the same fluid section geometry.
- Ultra Plus 750 Hi-Boy / Lo-Boy sprayers that pre-date the ProConnect series.
- Legacy Ultra Max II 695 Standard and ProContractor frames when upgraded from Chromex to Vortex internals.
Productivity Boost You Can Measure
Pair the 2.0 HP Ultra Max 695 drive with a 0.031" RAC X tip and you’ll spray up to 0.95 GPM of acrylic exterior paint — more than enough for two guns on residential repaints. Switching to 239769 also increases prime-and-spray pressure stability, so you waste less material purging lines or fighting pulsation lines on high-build elastomerics. Contractors juggling gas paint sprayers for exteriors and portable electrics indoors appreciate that the 239769 shares common graco filters and strainers, lance seals, and graco project painter plus parts. That means one service kit covers your Ultra Max fleet and your crew’s graco paint sprayer 495, reducing the number of SKUs you need to stock.
Pro-Level Maintenance Tips
- Log spray hours in BlueLink™ or a phone note. Replace packings every 200 hours if you run abrasive joint compound.
- Flush with compatible solvent before switching from oil-based primers to waterborne top-coats to protect the stainless sleeve.
- Stock colour-coded bins — red for suction tubing, blue for graco filters and strainers, green for gun rebuild kits — so foremen can grab consumables without rummaging.
- Keep a spare pump on every two-gun rig. Swapping in under a minute beats a two-hour round trip to the shop.
Ready to Slash Downtime?
Upgrade your sprayer, secure more bids, and finish jobs faster — starting now.
