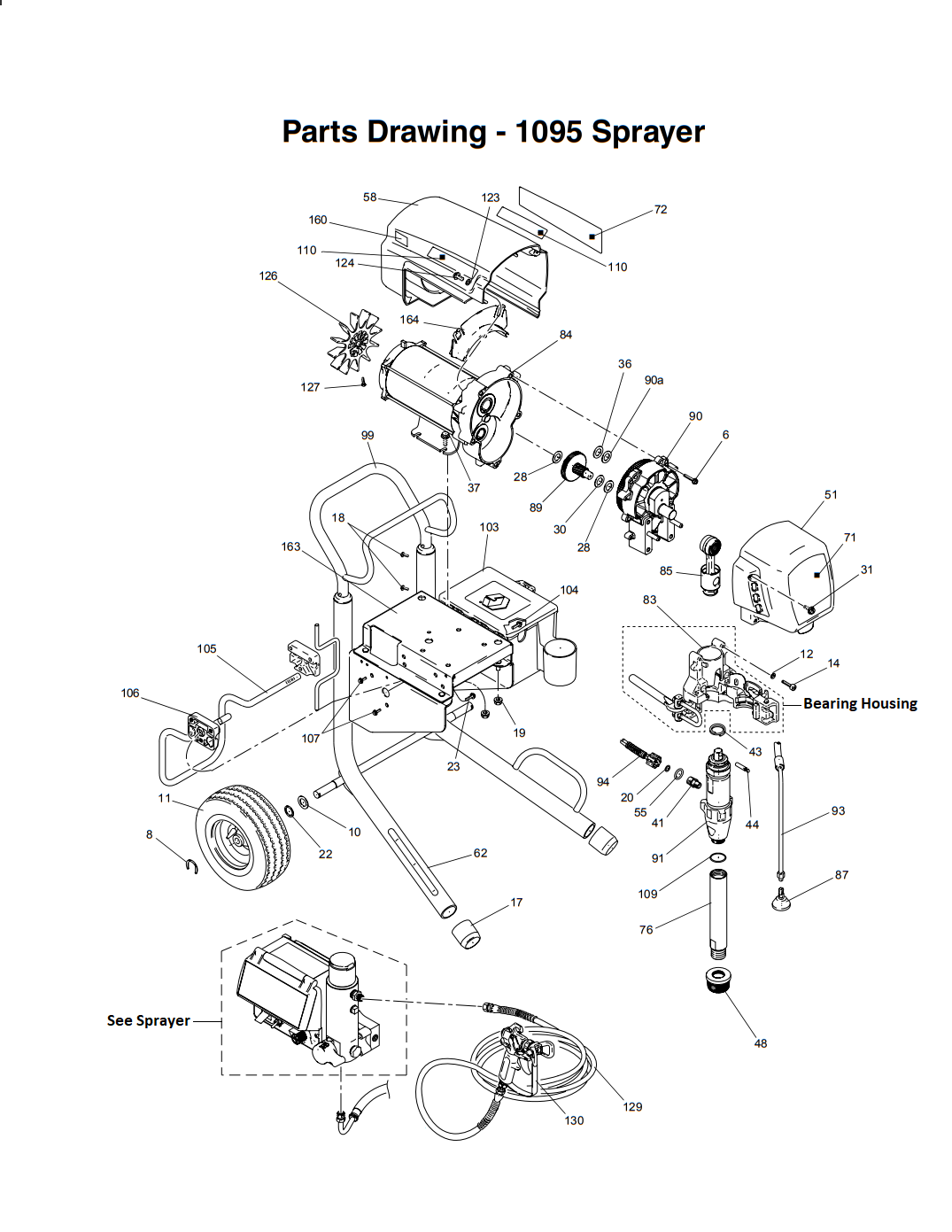

Graco Ultra Max II 1095 Sprayer Part List

Graco Ultra Max II 1095 Sprayer Part List
Product Image
Graco 253131 13-Inch Tube Repair Kit

Item No: -

Part Number: 253131

UPC Number: 633955139909

Retail Price: $34.20
You save: $0.68 (1.99%)
Our Price: $33.52
QTY:
Product Image
Graco 15C753 Torx Hex Washer Head Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

The Graco 15C753 Torx Hex Washer Head Machine Screw is a durable fastener with a Torx drive and hex ...

$6.50
QTY:
Product Image
Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...

$6.30
QTY:
Product Image
Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77
QTY:
Product Image
Graco 119509 Pneumatic Wheel

Item No: 11

Part Number: 119509

UPC Number: 633955036499

Ensure smooth movement and reliable performance with this high-quality pneumatic wheel, designed for...

Retail Price: $94.25
You save: $7.82 (8.30%)
Our Price: $86.43
QTY:
Product Image
Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

Maintain secure fastener connections with the Graco 106115 Hi‑Collar Lock Spring Washer, designed ...

$8.74
QTY:
Product Image
Graco 114666 Socket Head Cap Screw

Item No: 14

Part Number: 114666

UPC Number: 633955887787

OEM socket‑head cap screw for your Graco equipment. Part number: 114666. Thread size: 2.25 �...

$6.30
QTY:
Product Image
Graco 101354 Pin

Item No: 16

Part Number: 101354

UPC Number: 633955257016

The Graco 101354 Pin is a genuine OEM spring straight pin used to secure frame and linkage component...

$8.60
QTY:
Product Image
Graco 276974 Leg Cap

Item No: 17

Part Number: 276974

UPC Number: 633955044432

Graco 276974 Leg Cap is a plastic cap that goes on the leg of  some  Graco sprayer models like 109...

$6.30
QTY:
Product Image
Graco 108795 Pan Head Machined Screw

Item No: 18

Part Number: 108795

UPC Number: 633955512788

The Graco 108795 Pan Head Machined Screw is a genuine OEM fastener designed for durability and preci...

$40.35
QTY:
Product Image
Graco 112746 Hexagonal Nut

Item No: 19

Part Number: 112746

UPC Number: 633955029361

The Graco 112746 Hexagonal Nut is a durable fastening component designed to secure assemblies and ma...

$6.30
QTY:
Product Image
Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66
QTY:
Product Image
Graco 110963 Cap Screw

Item No: 23

Part Number: 110963

UPC Number: 633955119956

The **Graco 110963 Cap Screw** is a genuine OEM fastener used for secure assembly of hose reels, whe...

$8.74
QTY:
Product Image
Graco 112827 Snap Button

Item No: 25

Part Number: 112827

UPC Number: 633955658240

The Graco 112827 Snap Button provides secure and reliable panel and frame fastening for select Graco...

$6.30
QTY:
Product Image
Graco 114672 Thrust Washer

Item No: 28

Part Number: 114672

UPC Number: 633955886070

The Graco 114672 Thrust Washer ensures smooth rotation and stabilizes critical components in Graco a...

$6.30
QTY:
Product Image
Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

The Graco 114699 Thrust Washer stabilizes rotating parts in Graco airless sprayers and proportioners...

$6.30
QTY:
Product Image
Graco 118444 Hex Washer Head Machine Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

Secure critical components in select Graco sprayers with the 118444 Hex Washer Head Machine Screw, e...

$6.30
QTY:
Product Image
Graco 116192 Thrust Washer

Item No: 36

Part Number: 116192

UPC Number: 633955698307

OEM Graco thrust washer (Part #116192) — crucial load‑bearing washer for gear/drive assemblies i...

$6.30
QTY:
Product Image
Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

The Graco 100057 Screw is a genuine OEM hex head cap screw designed for secure fastening in Graco ai...

$8.74
QTY:
Product Image
Graco 15E802 Pump Fitting Quick Disconnect

Item No: 41

Part Number: 15E802

UPC Number: 633955093805

The Graco 15E802 Pump Fitting Quick Disconnect provides fast and secure fluid connections in Graco p...

Retail Price: $60.25
You save: $4.57 (7.59%)
Our Price: $55.68
QTY:
Product Image
Graco 119778 Retaining Spring

Item No: 43

Part Number: 119778

UPC Number: 633955024014

The Graco 119778 Retaining Spring ensures secure component alignment and consistent pump performance...

$8.44
QTY:
Product Image
Graco 15F110 Pump Pin

Item No: 44

Part Number: 15F110

UPC Number: 633955092136

The Graco 15F110 Pump Pin is an internal component that maintains alignment and structural integrity...

$23.85
QTY:
Product Image
Graco 183350 Washer

Item No: 46

Part Number: 183350

UPC Number: 633955196964

Optimize Industrial Equipment with the Graco 183350 Washer Maintain peak performance in demanding in...

$7.51
QTY:
Product Image
Graco 189920 Inlet Strainer/Filter (Threaded)

Item No: 48

Part Number: 189920

UPC Number: 633955094086

Prevent debris from entering your pump and ensure smooth operation with the Graco 189920 Inlet Strai...

Retail Price: $32.20
You save: $12.24 (38.01%)
Our Price: $19.96
QTY:
Product Image
Graco 287292 Plastic Drive Cover

Item No: 51

Part Number: 287292

UPC Number: 633955040809

Gr

Retail Price: $106.00
You save: $8.8 (8.30%)
Our Price: $97.20
QTY:
Product Image
Graco 119790 O-Ring Packing

Item No: 55

Part Number: 119790

UPC Number: 633955050686

Graco 119790 O-Ring Packing — genuine OEM seal designed for maintaining pressure and preventing fl...

$6.30
QTY:
Product Image
Graco 287282 Motor Shield Repair Kit

Item No: 58

Part Number: 287282

UPC Number: 633955035331

Retail Price: $83.25
You save: $6.9 (8.29%)
Our Price: $76.35
QTY:
Product Image
Graco 24P667 1095/Mark X Hi Boy Frame

Item No: 62

Part Number: 24P667

UPC Number: 633955010390

Retail Price: $787.00
You save: $125.92 (16.00%)
Our Price: $661.08
QTY:
Product Image
Graco 15D071 Ultra Max II 1095 Front Label

Item No: 71

Part Number: 15D071

UPC Number: 633955051522

$9.35
QTY:
Product Image
Graco 15D072 Ultra Max II 1095 Side Label

Item No: 72

Part Number: 15D072

UPC Number: 633955051546

$9.35
QTY:
Product Image
Graco 248215 Intake Tube

Item No: 76

Part Number: 248215

UPC Number: 633955047495

Graco 248215 Intake Tube is a tube designed to draw paint from the container into the pump. Graco 24...

Retail Price: $64.75
You save: $4.91 (7.58%)
Our Price: $59.84
QTY:
Product Image

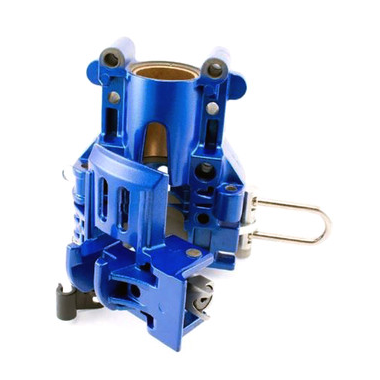

Graco 287933 Bearing Housing Kit

Item No: 83

Part Number: 287933

UPC Number: 633955138315

Graco 287376 Pinion Housing is a part used in Graco GMax II 5900 ProConnect airless paint sprayers ...

Retail Price: $867.00
You save: $138.72 (16.00%)
Our Price: $728.28
QTY:
Product Image
Graco 257187 C104 Motor Repair Kit

Item No: 84

Part Number: 257187

UPC Number: 633955473287

Retail Price: $1645.00
You save: $263.2 (16.00%)
Our Price: $1381.80
QTY:
Product Image
Graco 287472 Connecting Rod Repair Kit

Item No: 85

Part Number: 287472

UPC Number: 633955089891

Retail Price: $373.00
You save: $51.85 (13.90%)
Our Price: $321.15
QTY:
Product Image
Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30
QTY:
Product Image
Graco 287290 Combination Gear

Item No: 89

Part Number: 287290

UPC Number: 633955040090

Retail Price: $266.50
You save: $33.31 (12.50%)
Our Price: $233.19
QTY:
Product Image
Graco 287294 Drive Housing Repair Kit

Item No: 90

Part Number: 287294

UPC Number: 633955041592

Retail Price: $450.00
You save: $65.7 (14.60%)
Our Price: $384.30
QTY:
Product Image
Graco 114671 Thrust Washer

Item No: 90a

Part Number: 114671

UPC Number: 633955100084

OEM thrust washer designed to maintain proper axial spacing and alignment in your Graco equipment. ...

$6.30
QTY:
Product Image
Graco 287513 Displacement Pump

Item No: 91

Part Number: 287513

UPC Number: 633955095731

The Graco 287513 Displacement Pump is a complete genuine fluid section designed for heavy-duty Ultra...

Retail Price: $1050.00
You save: $168 (16.00%)
Our Price: $882.00
QTY:
Product Image
Graco 287952 Drain Hose

Item No: 93

Part Number: 287952

UPC Number: 633955139374

Retail Price: $77.50
You save: $6.43 (8.30%)
Our Price: $71.07
QTY:
Product Image
Graco 287253 Tool Box Accessory Kit

Item No: 103

Part Number: 287253

UPC Number: 633955046085

Retail Price: $46.70
You save: $2.57 (5.50%)
Our Price: $44.13
QTY:
Product Image
Graco 118852 Thread Forming Hex Washer Head Screw

Item No: 104

Part Number: 118852

UPC Number: 633955030367

The Graco 118852 Screw is designed for high-pressure sprayer systems, ensuring secure fastening and ...

$6.30
QTY:
Product Image
Graco 15C858 Cart Stand Hanger

Item No: 105

Part Number: 15C858

UPC Number: 633955052239

Graco 15C858 Cart Stand Hanger a Strong and Reliable Storage Solution Graco 15C858 Cart Stand Hange...

$27.10
QTY:
Product Image
Graco 15C982 Cart Camera

Item No: 106

Part Number: 15C982

UPC Number: 633955031524

The Graco 15C982 Cart Camera is an OEM mechanical cam component for Graco cart-style sprayers, ensur...

$11.37
QTY:
Product Image
Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 107

Part Number: 114531

UPC Number: 633955801691

A durable OEM fastening screw for critical Graco assemblies: Part # 114531 – Hex‑Head Machi...

$6.30
QTY:
Product Image
Graco 118494 Airless Sprayer Suction Hose Packing O-Ring

Item No: 109

Part Number: 118494

UPC Number: 633955032675

The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...

$6.30
QTY:
Product Image
Graco 16D585 Ultra Premium Sides Label

Item No: 110

Part Number: 16D585

UPC Number: 633955623231

$9.35
QTY:
Product Image
Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$6.30
QTY:
Product Image
Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

The Graco 119250 Shoulder Screw ensures precise alignment and reliable performance in Graco spray sy...

$6.30
QTY:
Product Image
Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...

Retail Price: $35.00
You save: $0.7 (2.00%)
Our Price: $34.30
QTY:
Product Image
Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$4.41
QTY:
Product Image
Graco 222385 Med Alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00
QTY:
Product Image
Graco 240794 BlueMax II Airless Hose

Item No: 129

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

Retail Price: $94.75
You save: $22.44 (23.68%)
Our Price: $72.31
QTY:
Product Image
Graco 15Y118 Made in the USA Label

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

A Genuine OEM Replacement Part Graco 15Y118 Made in the USA Label is an authentic OEM decal used to...

$9.35
QTY:
Product Image
Graco 238358 BlueMax II Airless Whip Hose

Item No: 164

Part Number: 238358

UPC Number: 633955707092

The Graco 238358 BlueMax II Airless Whip Hose is a 3 ft, 3/16 in hose that provides flexibility and ...

Retail Price: $36.90
You save: $5.9 (15.99%)
Our Price: $31.00
QTY:

Graco Ultra Max II 1095 Sprayer Parts List

Graco Ultra Max II 1095 is a workhorse electric airless sprayer engineered for high-volume commercial paint jobs. Because it runs at up to 3300 PSI and 1.2 GPM from a 2.4 HP brushless DC motor, every seal, rod, and electronic sensor must be precisely matched to factory tolerances. This in-depth description walks through the full Ultra Max II 1095 sprayer parts list, explains why OEM components protect your investment, and gives you maintenance tips that can triple service life.

What Makes the 1095 a Category Leader?

Graco positions the 1095 at the top end of its Standard-Series line. Chromex™ piston pump delivers twice the rod life of chrome-plated steel; SmartControl 4.0 eliminates fan-pattern fluctuations by holding pressure within ±1 PSI; and BlueLink™ telematics track gallons sprayed, location, and maintenance alerts from any phone. hi-boy cart ships with semi-pneumatic wheels so crews can roll 148 lb of hardware across rough slabs without a dolly.

Core Systems and Key Part Numbers

  • Pump & Fluid Section — Endurance displacement pump, Chromex rod, upper & lower packing kit. These parts see the highest wear and are the first line of defense against coating-laden water and solvents.
  • Prime & Drain — Heavy-duty dump valve plus seat gasket keep lines clear during color changes and daily shutdowns.
  • Filtration — Easy-Out filter housing with stainless screens from 30-mesh (heavy latex) to 200-mesh (fine lacquer). Swap when the transducer sees a 300 PSI spike.
  • Motor & Drive Train — Brushless motor assembly , Advantage drive gears , and cooling fan. These parts are covered by Graco’s Lifetime Drive Train warranty when OEM replacements are used.
  • Pressure Control — Potentiometer knob, rocker switch, and 3300-PSI transducer talk to SmartControl 4.0 for rock-steady output.
  • Cart & Frame — Welded steel tubing, hose rack, kickstand rod, and semi-pneumatic wheels. Field techs report fewer bearing failures versus aftermarket wheel kits.
  • Graco Gun & Hose — Contractor PC gun paired with BlueMax II 1/4″ × 50 ft hose supports tips to 0.035″, or dual-gun rigs at 0.027″ per gun.

Generational Differences & Cross-References

The 1095 has evolved through three major families:

  1. 1st Generation (2003–2009) — Part numbers 248034/248039; analog SmartControl 2.5 board. Packing kits and gear sets are generation-specific.
  2. 3rd Generation (2010–2014) — Part numbers 258727/258728; 287513 pump upgrade; many service kits end in.
  3. Current Standard-Series (2015–present) — Part number 17E583; SmartControl 4.0; BlueLink hardware baked in. Chromex pump rod and Advantage gears retrofit only forward, not backward.

Always match the first six digits of your sprayer’s serial number to the correct parts manual (e.g., 17E583) before ordering.

Identifying Your Ultra Max II 1095

Look for the silver data plate riveted to the drive housing. It shows:

  • Model ID (e.g., “Ultra Max II 1095 Standard Series 17E583”).
  • Build Date — YYMM format (2411 = November 2024).
  • Maximum Pressure — 22.8 MPa / 3300 PSI.
  • Serial Number — needed for warranty and BlueLink activation.

If the plate is missing, match your pump-rod diameter (7/8″ vs 1″) and gear-box casting marks to the diagrams in manual 309953E to pinpoint the correct generation.

Why Genuine Graco Parts Outperform Copycats

Third-party rods often use induction-hardened chrome instead of Graco’s proprietary Chromex™ alloy, reducing rod life by about 40 percent in abrasion tests. Non-OEM packings may swell in hot solvents, accelerating weep-hole leaks and motor contamination. Using unauthorized parts can void the Lifetime Drive Train and MaxPower motor warranties, leaving you on the hook for a costly gear-box rebuild.

Maintenance Intervals for 3× Service Life

Task Interval Part No.
Flush with pump conditioner Daily LiquidShield TSL 206994
Rebuild packing kit 150 000 cycles 248213
Change Easy-Out filter When ΔP > 300 PSI 244067–244071
Inspect drive gears Every 500 hours 287290
Grease wheel bearings Yearly 179811 kit

Frequently Replaced Parts (Top Five)

  1. Packing Kit 248213 — Solvent exposure, high PSI.
  2. Transducer 243222 — Clogged filters, pressure spikes.
  3. Dump Valve 235014 — Paint debris, dry storage.
  4. Rod 241279 — Abrasive fillers in block-fill coatings.
  5. Wheel Set 179811 — Curb impact, rough terrain.

Stocking these items reduces average downtime from 1.6 days to under four hours, according to distributor service logs.

Final Word

Graco Ultra Max II 1095 sprayer parts list is more than a catalogue—it is the blueprint for keeping one of the industry’s most reliable high-output sprayers performing like new. By sticking with genuine Chromex rods, SmartControl sensors, and OEM packings, contractors protect pressure stability, extend pump life, and keep warranties intact. Whether you spray 200 gallons a week on big-box tilt-ups or only break the 1095 out for arena seating decks, mastering the parts list ensures every pull of the trigger is profitable.

Subscribe to our newsletter to get exclusive discounts and new theme launches right in your inbox.

You may unsubscribe at any moment. For that purpose, please find our contact info in the legal notice.

Payment Method   Payment Method   Payment Method   Payment Method

ADDRESS
