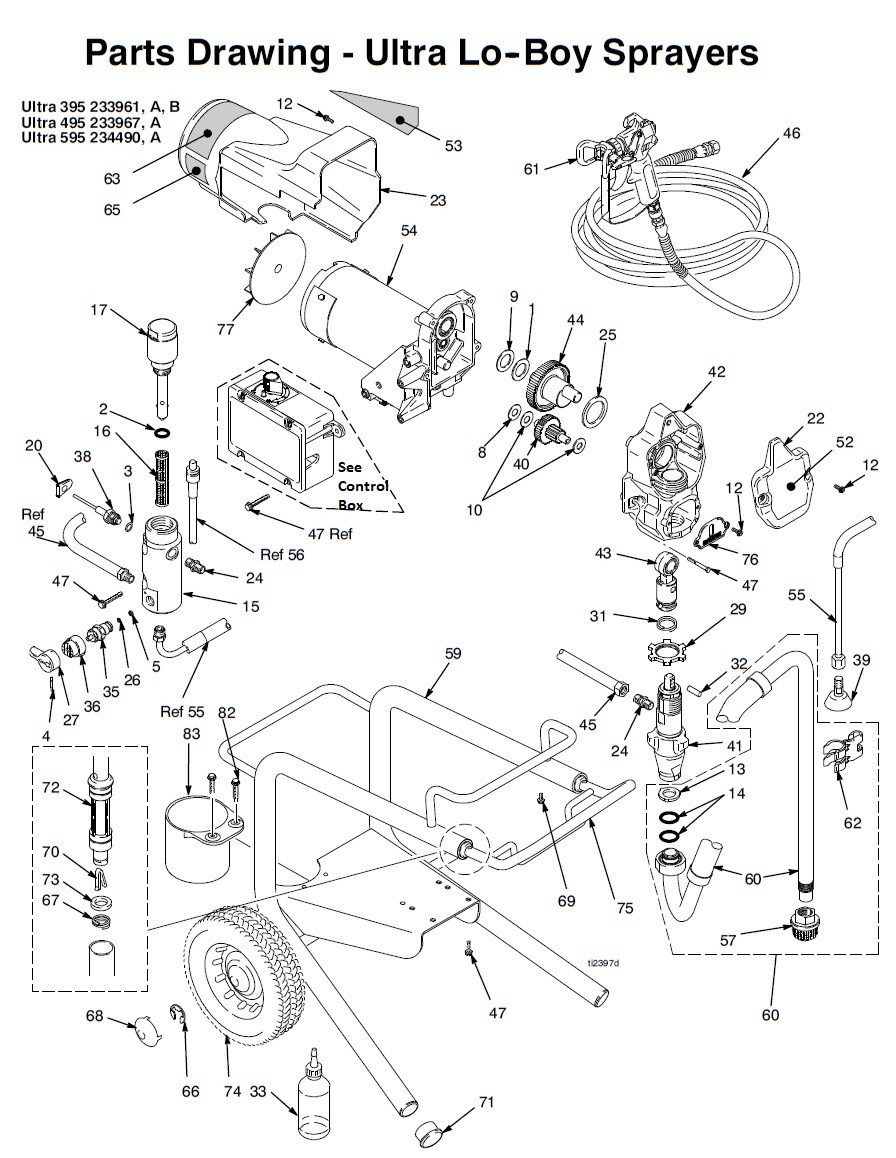

Graco Ultra 595 Lo-Boy Electric Airless Sprayer

Graco 287735 Brush Repair Kit

Item No: -

Part Number: 287735

UPC Number: 633955088788

Graco 287735 Brush Kit is the OEM motor carbon brush set that restores RPM and stops sparking on pop...

Retail Price: $262.00

You save: $32.75 (12.50%)

Our Price: $229.25

QTY:

Graco 246382 | Easy Out Short Pump Manifold Filter (100 Mesh Blue)

Item No: --

Part Number: 246382

UPC Number: 633955921504

Graco 246382 is an Easy Out short pump manifold filter with 100-mesh (Blue) screening - ideal for pr...

$14.04

QTY:

Graco 246383 Tall Manifold 200 Mesh Filter (Red)

Item No: ---

Part Number: 246383

UPC Number: 633955921511

Graco 246383 is a 200-mesh (Red) Easy Out manifold filter for fine materials (stains, lacquers, seal...

Retail Price: $21.60

You save: $6.91 (31.99%)

Our Price: $14.69

QTY:

Graco 246425 Short Manifold 30 Mesh Filter (Gray)

Item No: ----

Part Number: 246425

UPC Number: 633955921573

OEM Graco 246425 Short Manifold 30-Mesh (Gray) filter for reliable debris capture and smoother spray...

Retail Price: $11.80

You save: $3.3 (27.97%)

Our Price: $8.50

QTY:

Graco 107434 Thrust Bearing

Item No: 1

Part Number: 107434

UPC Number: 633955430051

Graco 107434 Thrust Bearing—OEM axial bearing for the drive/crank assembly. Stabilizes end-load, r...

$6.93

QTY:

Graco 117828 Encapsulated O-Ring Packing Kit

Item No: 2

Part Number: 117828

UPC Number: 633955020344

Graco 117828 Encapsulated O-Ring Packing Kit seals the joint between the manifold filter and manifol...

$23.22

QTY:

Graco 111457 Packing O-Ring

Item No: 3

Part Number: 111457

UPC Number: 633955460584

Graco 111457 Packing O-Ring is a durable PTFE seal designed to maintain consistent pressure and prev...

$19.76

QTY:

Graco 111600 Grooved Pin

Item No: 4

Part Number: 111600

UPC Number: 633955582996

Graco 111600 Grooved Pin is a genuine OEM part designed to secure the handle in the Prime/Drain Valv...

$6.30

QTY:

Graco 111699 Valve Seat

Item No: 5

Part Number: 111699

UPC Number: 633955135529

The Graco 111699 Valve Seat ensures consistent spray performance and reliable flow in Graco airless ...

$6.41

QTY:

Graco 116073 E-10HP Thrust Washer

Item No: 8

Part Number: 116073

UPC Number: 633955980341

Graco 116073 E-10HP Thrust Washer reduces friction and maintains proper alignment in Graco airless s...

$6.30

QTY:

Graco 116074 Thrust Washer

Item No: 9

Part Number: 116074

UPC Number: 633955980358

Graco 116074 Thrust Washer helps reduce friction and maintain alignment in the drive mechanism of Gr...

$6.30

QTY:

Graco 116079 Thrust Bearing

Item No: 10

Part Number: 116079

UPC Number: 633955980365

Graco 116079 Thrust Bearing maintains proper alignment and reduces friction in the drive mechanism o...

$6.30

QTY:

Graco 117501 Slotted Hexagonal Washer Head Machine Screw

Item No: 12

Part Number: 117501

UPC Number: 633955017160

Graco 117501 Hexagonal Head Slotted Washer Machine Screw provides secure fastening for Graco airless...

$6.30

QTY:

Graco 115099 Garden Hose Washer Inlet Seal

Item No: 13

Part Number: 115099

UPC Number: 633955930162

Graco 115099 Garden Hose Washer Inlet Seal prevents leaks at the garden hose connection, ensuring pr...

$0.42

QTY:

Graco 117559 O-Ring

Item No: 14

Part Number: 117559

UPC Number: 633955017177

Ensure a tight seal in your Graco airless sprayer’s suction or inlet area. Prevent leaks and maint...

$7.13

QTY:

Graco 15G455 Fluid Manifold

Item No: 15

Part Number: 15G455

UPC Number: 633955113602

Graco 15G455 Fluid Manifold ensures precise control and distribution of fluid in Graco airless spray...

Retail Price: $114.00

You save: $9.46 (8.30%)

Our Price: $104.54

QTY:

Graco 246384 Tall Manifold 60 Mesh Filter (Black)

Item No: 16

Part Number: 246384

UPC Number: 633955921528

Graco 246384 Tall Manifold 60 Mesh Filter (Black) protects your sprayer pump from debris, ensuring c...

Retail Price: $11.80

You save: $3.25 (27.54%)

Our Price: $8.55

QTY:

Graco 287167 Manifold Filter Cap Repair Kit

Item No: 17

Part Number: 287167

UPC Number: 633955018464

Graco 287167 Filter Cap Repair Kit secures the manifold filter and protects your sprayer pump from d...

Retail Price: $72.00

You save: $5.47 (7.60%)

Our Price: $66.53

QTY:

Graco 15B120 Transducer Grommet

Item No: 20

Part Number: 15B120

UPC Number: 633955017351

Graco 15B120 Transducer Grommet securely mounts the pressure transducer in your sprayer, protecting ...

$6.30

QTY:

Graco 287058 Front Cover Repair Kit

Item No: 22

Part Number: 287058

UPC Number: 633955923089

Graco 287058 Front Cover Repair Kit restores the protective front cover of your sprayer, ensuring in...

$119.00

QTY:

Graco 287056 Motor Shield Repair Kit

Item No: 23

Part Number: 287056

UPC Number: 633955922914

Graco 287056 Motor Shield Repair Kit protects your sprayer's motor from debris and environmental dam...

Retail Price: $83.25

You save: $6.9 (8.29%)

Our Price: $76.35

QTY:

Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 24

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting ensures secure, leak-free connections in pumps and manifolds, maintainin...

$24.66

QTY:

Graco 180131 Thrust Bearing

Item No: 25

Part Number: 180131

UPC Number: 633955624924

Graco 180131 Thrust Bearing ensures smooth operation of your sprayer pump by supporting axial loads ...

$11.19

QTY:

Graco 15E022 Prime Valve Seat

Item No: 26

Part Number: 15E022

UPC Number: 633955083844

Ensure your Graco sprayer runs smoothly with the 15E022 Prime Valve Seat. Maintains a secure seal an...

$15.95

QTY:

Graco 187625 Drain Valve Handle

Item No: 27

Part Number: 187625

UPC Number: 633955588868

Graco 187625 Drain Valve Handle is a genuine OEM replacement part designed for precise control of th...

$9.83

QTY:

Graco 195150 Pump Jam Nut

Item No: 29

Part Number: 195150

UPC Number: 633955930902

Graco 195150 Pump Jam Nut is a critical component that secures the pump assembly, ensuring reliable ...

$9.47

QTY:

Graco 196750 Retaining Spring

Item No: 31

Part Number: 196750

UPC Number: 633955980518

Graco 196750 Retaining Spring is a durable component that keeps internal parts aligned for smooth, r...

$6.30

QTY:

Graco 196762 Straight Pin

Item No: 32

Part Number: 196762

UPC Number: 633955980532

Ensure secure and reliable operation of your Graco sprayer with the 196762 Straight Pin. Perfect for...

$8.44

QTY:

Graco 206994 Throat Seal Liquid

Item No: 33

Part Number: 206994

UPC Number: 633955309692

Maintain your sprayer’s performance with the Graco 206994 Throat Seal Liquid (TSL) - designed to p...

Retail Price: $15.60

You save: $0.28 (1.79%)

Our Price: $15.32

QTY:

Graco 235014 Prime Drain Valve Spray Kit

Item No: 35

Part Number: 235014

UPC Number: 633955349100

Maintain your Graco airless sprayer with the 235014 Prime Drain Valve Spray Kit. Ensures smooth prim...

Retail Price: $116.00

You save: $24.82 (21.40%)

Our Price: $91.18

QTY:

Graco 224807 Prime Valve Base

Item No: 36

Part Number: 224807

UPC Number: 633955364264

Ensure smooth priming and reliable operation of your Graco airless sprayer with the 224807 Prime Val...

$8.26

QTY:

Graco 243222 Pressure Transducer

Item No: 38

Part Number: 243222

UPC Number: 633955920880

Maintain precise pressure control and consistent spray performance with the 243222 Pressure Transduc...

Retail Price: $162.00

You save: $16.85 (10.40%)

Our Price: $145.15

QTY:

Graco 241920 Threaded Deflector

Item No: 39

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30

QTY:

Graco 244242 Combination Gear Repair Kit

Item No: 40

Part Number: 244242

UPC Number: 633955963375

Graco 244242 Combination Gear Repair Kit restores smooth gear function and prolongs the lifespan of ...

Retail Price: $147.00

You save: $15.29 (10.40%)

Our Price: $131.71

QTY:

Graco 246428 Endurance Pump

Item No: 41

Part Number: 246428

UPC Number: 633955950078

Durable Graco 246428 Endurance Chromex Pump designed for long life and smooth performance. Perfect O...

Retail Price: $388.00

You save: $53.93 (13.90%)

Our Price: $334.07

QTY:

Graco 287055 Drive Housing Repair Kit

Item No: 42

Part Number: 287055

UPC Number: 633955922419

Graco 287055 Drive Housing Repair Kit restores your sprayer’s drive system to peak performance. De...

Retail Price: $180.50

You save: $18.77 (10.40%)

Our Price: $161.73

QTY:

Graco 287053 Connecting Rod Kit

Item No: 43

Part Number: 287053

UPC Number: 633955922327

Graco 287053 Connecting Rod Kit keeps your sprayer running smoothly by transferring power from the m...

Retail Price: $95.75

You save: $7.94 (8.29%)

Our Price: $87.81

QTY:

Graco 248231 Crankshaft Repair Kit

Item No: 44

Part Number: 248231

UPC Number: 633955048614

Retail Price: $173.00

You save: $17.99 (10.40%)

Our Price: $155.01

QTY:

Graco 287003 Pressure Return Hose Coupled

Item No: 45

Part Number: 287003

UPC Number: 633955018365

Graco 287003 Pressure Return Hose Coupled is a durable OEM replacement hose designed for reliable fl...

Retail Price: $32.50

You save: $0.65 (2.00%)

Our Price: $31.85

QTY:

Graco 240794 BlueMax II Airless Hose

Item No: 46

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

Retail Price: $94.75

You save: $22.44 (23.68%)

Our Price: $72.31

QTY:

Graco 117493 Hexagonal Head Washer Machine Screw

Item No: 47

Part Number: 117493

UPC Number: 633955017146

Graco 117493 Hexagonal Head Washer Machine Screw is a durable OEM fastener designed for precise fit ...

$6.30

QTY:

Graco 15K395 Front Label

Item No: 52

Part Number: 15K395

UPC Number: 633955224575

Graco 15K395 Front Label is a genuine OEM decal for restoring the front identification of Ultra 395 ...

$9.35

QTY:

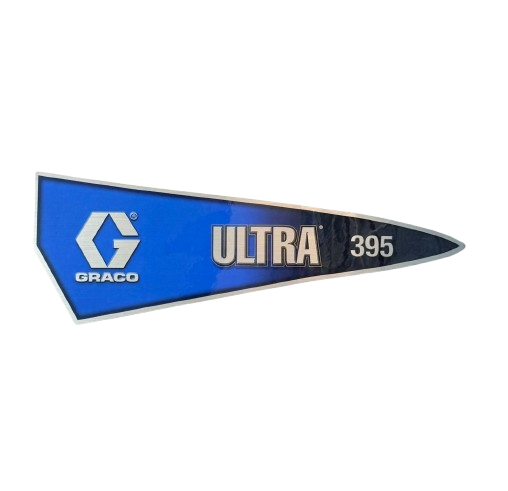

Graco 15K392 Side Label

Item No: 53

Part Number: 15K392

UPC Number: 633955224155

Graco 15K392 Side Label is the genuine OEM side decal used on Ultra 395 sprayers. Perfect for restor...

$9.35

QTY:

Graco 287015 Motor 120V

Item No: 54

Part Number: 287015

UPC Number: 633955924291

Graco 287015 Motor (120V) is a genuine replacement motor designed for the Ultra 495 sprayer series. ...

Retail Price: $581.00

You save: $84.83 (14.60%)

Our Price: $496.17

QTY:

Graco 246381 Drain Line Repair Kit

Item No: 55

Part Number: 246381

UPC Number: 633955921498

Retail Price: $46.70

You save: $2.57 (5.50%)

Our Price: $44.13

QTY:

Graco 246385 Inlet Strainer 7/8

Item No: 57

Part Number: 246385

UPC Number: 633955921535

Graco 246385 Inlet Strainer (7/8") keeps debris from entering your sprayer pump, helping maintain pe...

Retail Price: $15.80

You save: $5.06 (32.03%)

Our Price: $10.74

QTY:

Graco 246250 Lo Boy Cart Frame

Item No: 59

Part Number: 246250

UPC Number: 633955018273

Retail Price: $237.00

You save: $29.62 (12.50%)

Our Price: $207.38

QTY:

Graco 246386 Suction Set Hose Assembly

Item No: 60

Part Number: 246386

UPC Number: 633955921542

The Graco 246386 Suction Set Hose Assembly is a genuine OEM part designed to ensure smooth, consiste...

Retail Price: $158.00

You save: $16.43 (10.40%)

Our Price: $141.57

QTY:

Graco 288420 Contractor Airless Spray Gun

Item No: 61

Part Number: 288420

UPC Number: 633955215764

Graco 288420 Contractor Airless Spray Gun is built for professional painters who need precision, com...

Retail Price: $450.00

You save: $173.25 (38.50%)

Our Price: $276.75

QTY:

Graco 276888 Drain Line Clip

Item No: 62

Part Number: 276888

UPC Number: 633955018358

Graco 276888 Drain Line Clip securely holds the drain/prime hose and suction tube in place, preventi...

$6.30

QTY:

Graco 15B516 Fire Explosion Warning Label

Item No: 63

Part Number: 15B516

UPC Number: 633955017702

Graco 15B516 Fire/Explosion Warning Label is a genuine OEM safety decal used on various Graco spraye...

$5.00

QTY:

Graco 15B999 Retaining Clip

Item No: 66

Part Number: 15B999

UPC Number: 633955018181

Graco 15B999 Retaining Clip is a genuine OEM part designed to securely hold components in place with...

$6.30

QTY:

Graco 104811 Hub Cap

Item No: 68

Part Number: 104811

UPC Number: 633955129023

The Graco 104811 Hub Cap is a genuine OEM component designed to protect and secure the wheel hub are...

$10.05

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 69

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

Graco 107310 Tubing Plug

Item No: 71

Part Number: 107310

UPC Number: 633955365681

The Graco 107310 Tubing Plug securely seals tubing connections in Graco airless spray systems, preve...

$6.93

QTY:

Graco 195766 Semi Pneumatic Wheel

Item No: 74

Part Number: 195766

UPC Number: 633955916975

Retail Price: $48.60

You save: $2.67 (5.49%)

Our Price: $45.93

QTY:

Graco 287488 Lo-Cart Handle Assembly

Item No: 75

Part Number: 287488

UPC Number: 633955195929

Retail Price: $118.50

You save: $9.84 (8.30%)

Our Price: $108.66

QTY:

Graco 15B589 Pump Rod Cover

Item No: 76

Part Number: 15B589

UPC Number: 633955017726

The Graco 15B589 Pump Rod Cover is an OEM protective sleeve that shields the pump rod and linkages f...

$6.30

QTY:

Graco 248189 Fan Motor Repair Kit

Item No: 77

Part Number: 248189

UPC Number: 633955048591

Graco 248189 Fan Motor Repair Kit keeps your sprayer’s motor cool and running efficiently by repla...

Retail Price: $32.20

You save: $0.64 (1.99%)

Our Price: $31.56

QTY:

Graco 122667 Hexagonal Head Washer Drill Screw

Item No: 82

Part Number: 122667

UPC Number: 633955516670

The Graco 122667 Hexagonal Head Washer Drill Screw provides reliable fastening and load distribution...

$2.74

QTY:

Graco 15B870 Suction Drain Cup

Item No: 83

Part Number: 15B870

UPC Number: 633955018112

The Graco 15B870 Suction Drain Cup is an OEM part designed to manage fluid suction and drainage in G...

$15.79

QTY:

Discover the Power of the Graco Ultra 595 Lo-Boy Electric Airless Sprayer

When job-site uptime and finish quality are non-negotiable, professionals reach for Graco Ultra 595 Lo-Boy Electric Airless Sprayer. At SprayersAndParts.com, we stock every OEM seal, rod, and board you’ll ever need Our manufacturer-approved lineup ranges from replacement pumps for the rugged 695 Graco paint sprayer to specialty Graco spray gun accessories, giving you a single, friction-free source for specification, purchase, and shipping.

Six Reasons to Demand Genuine Graco 595 Parts

Factory tolerances you can trust. Every piston rod and V-pack meets ±0.001-in standards, preserving the 595’s 3,300 psi rating and 0.70 gpm flow.
Chromex™ Endurance Pump. Hardened stainless steel components last up to 2× longer than copy-cat pumps, reducing mid-season rebuilds.
SmartControl 3.0 electronics. The brushless motor automatically adjusts speed to maintain pressure—essential for switching between latex and elastomers without swapping tips.
One-minute pump swaps. ProConnect™ design lets techs drop in a fresh lower without tools—perfect when deadlines loom.
Warranty support. OEM parts keep you covered by Graco’s 12-month pump, motor, and drive guarantees.
Pro resale value. Machines serviced with genuine kits fetch higher prices on the secondary market—good news for fleet managers.

Core Performance Specifications

Maximum working pressure: 3,300 psi / 228 bar
Maximum tip size (single gun): 0.027 in
Maximum flow rate: 0.70 gpm (2.65 l min-1)
Motor: 1.6 hp brushless DC—maintenance-free with lifetime warranty
Recommended production: 50–100 gal per week—ideal for commercial repaints and midsize new-builds.

Cross-Compatible Machines You Can Service with the Same Shelf Stock

Graco’s modular architecture means a single parts drawer can maintain multiple rigs:

Ultra Max II 695—shares Chromex pumps, SmartControl boards, and RAC X guards; delivers 0.95 gpm at 3,300 psi for heavier coatings.
Ultra Max II 495—uses the same PC lower (short-stroke) and 60-mesh manifold filters, making it easy to stock one kit for both sprayers.
Graco 395 Sprayer—compact job-site standby that accepts LP 515/517 tips and shares the Contractor PC gun cartridge.
GMax II 7900 Gas Sprayer—RAC X tips, BlueMax II hoses, and Easy-Out filters interchange, letting crews switch from electric to gas rigs seamlessly.
Graco TrueCoat 360 Handhelds—same low-pressure LP tips; keep a spare 0.015 orifice on the truck for furniture touch-ups.
Magnum Project Painter Plus 257025—entry-level unit that uses identical tip guards; our parts list speeds DIY repairs during warranty calls.

Field-Proven Features the 595 Lo-Boy Brings to Every Job

Long-stroke pump design. The Lo-Boy frame houses an extended lower that boosts pack life by reducing cycles at any given flow rate—perfect for crews spraying high-build acrylics. FastFlush™ clean-out. Flip one switch and the pump purges in under a minute, cutting cleanup water usage by 50 %. Kick-back cart design. The low-profile chassis slides easily into a van while its kickstand lets one person swap buckets without wrestling 5-gallon pails.

Pro Tips for 10,000-Hour Reliability

Log hours, not guesses. Reset the digital counter after every overhaul; at 1,500 hours schedule a complete pump lower rebuild.
Lube smart. Wet new packings with Graco Blue Ice™ or TSL before first pressurization—tests show 30 % lower startup friction.
Color-code small parts. Store graco spray gun accessories in red bins and graco 395 sprayer wear parts in blue so crews grab the right kit instantly.
Keep a loaner lower. Stash a 17C992 ProConnect™ pump in your service truck. A five-minute swap on site beats a two-day rental bill.
Ground every hose. Whether it’s a graco paint sprayer 495 or your 595, connect the static wire before spraying flammables to avoid flashovers.

Frequently Asked Buyer Questions

Is the Lo-Boy as powerful as the Hi-Boy?: Both share the same 1.6 hp motor, 0.70 gpm pump, and 3,300 psi rating; frame height is the only difference.
Can one kit rebuild both the 595 and 695 Graco paint sprayer?: Yes—order the 17C992 Express Pump Lower; it drops into 495, 595, 695, and 795 models without tools.
Will TrueCoat 360 tips fit the 595 gun?: Low-pressure tips share the same RAC X guard thread, so 0.015–0.017 orifices designed for 360 handhelds pop right in.

Upgrade Your Fleet—Order OEM 595 Parts Today

Ready to eliminate downtime and protect your investment? Add genuine Graco Ultra 595 Lo-Boy Electric Airless Sprayer kits—plus consumables for your graco gmax 7900, 695 graco paint sprayer, or Buy Graco Magnum Project Painter Plus 257025 Parts List—to your cart now, SprayersAndParts keeps your crew productive and profitable on every single job.

Graco Ultra 595 Lo-Boy Electric Airless Sprayer

Discover the Power of the Graco Ultra 595 Lo-Boy Electric Airless Sprayer

Six Reasons to Demand Genuine Graco 595 Parts

Core Performance Specifications

Cross-Compatible Machines You Can Service with the Same Shelf Stock

Field-Proven Features the 595 Lo-Boy Brings to Every Job

Pro Tips for 10,000-Hour Reliability

Frequently Asked Buyer Questions

Upgrade Your Fleet—Order OEM 595 Parts Today

ADDRESS

INFORMATION

YOUR ACCOUNT
