Graco 495st ProB Stand (232946) Airless Paint Sprayers

Graco 495 ST Pro Stand Electric Airless Paint Sprayer (Model 232946): Specs, Maintenance & Parts

The Graco 495 ST Pro electric airless paint sprayer (stand version) is a reliable contractor-grade system designed for constant performance. Rated up to 0.6 gpm at 3,000 psi, the 495 ST Pro features a rugged displacement pump, brushless MaxPower motor, and premium ergonomics for prolonged jobsite use.

At SprayersandParts.com, we support this platform with full coverage of paint sprayer parts, accessories, and maintenance kits—everything needed to keep your rig spraying day after day.

Key Features & Build Highlights

High‑Power Electric Performance

Equipped with a rugged MaxPower brushless DC motor, the 495 ST Pro delivers consistent power with no brushes to wear out and minimal maintenance. Enclosed design prevents dust or overspray infiltration.

Durable Displacement Pump

The core is a strong displacement pump assembly (13 243183) with a hardened crankshaft, precision connecting rod, and drive housing engineered for up to 3,000 psi. Ideal for coating materials like latex, elastomerics, primers, and stains.

Contractor FTx Spray Gun Included

Ships with a solid FTx contractor gun and 515 RAC V tip, ensuring controlled fan pattern and long-term durability. Easy to access internal filters reduce stoppage and wear.

Robust Stand Design

Weighing roughly 16.6 kg (~36 lb), the stand offers stability and portability. Semi-pneumatic wheels and a compact base (361 × 483 × 356 mm) make it ideal for tight jobsites.

Why OEM Parts & Accessories Matter

Using genuine Graco paint sprayer parts is crucial for consistent performance:

• Pump integrity: OEM displacement pump parts preserve flow and pressure; aftermarket seals and components lead to leaks or premature wear.

• Filter housing & valves: The standard 60‑mesh fluid screen (243080) and filter cap assemblies prevent debris from jamming valves or damaging the pump.

• Reliable spray guns: The FTx gun included is engineered for seamless integration; OEM internal parts ensure lasting compatibility with graco spray tips.

• Accessory compatibility: Components like fluid hoses, filters, and tip extensions align across models, allowing for simplified inventory management.

Parts You Can Order & Service Kits

Here’s a breakdown of key parts and configurations available:

• Motor (120 VAC) part 242012, combination gear 243219, crankshaft 243218, pump 243183

• High‑pressure hose 241926 coupled to stand (use BlueMax II hose for best durability)

• Filter housing and 60‑mesh filter assembly: 195157 housing, 243080 filter, 195139 cap

• Drain valve kit, seat gasket, and handle: parts 235014, 111699, 187615, 187625

• Suction hose and strainer for pickup tube (part 241937 and 235004)

• Contractor FTx gun kit with RAC V tip (243285) and OEM guard

• Standard kit items: TSL fluid 8‑oz bottle, internal rod wiper, safety labels, suction tube holders, handle grip, shroud assembly

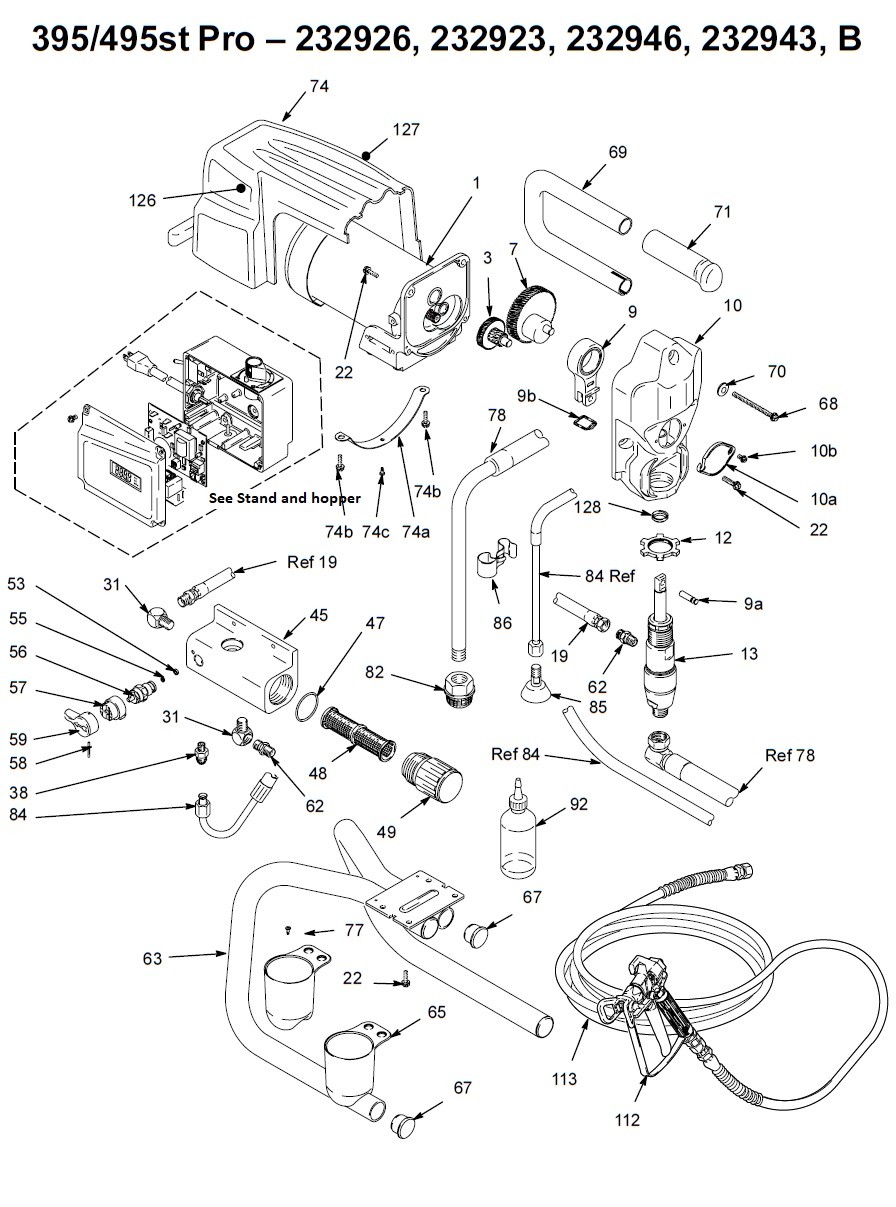

• Full schematics and guide available in Graco’s OEM manual 206M636.

Alongside these, we stock graco magnum x7 parts, compatible hose assemblies, additional spray tips and guards, and graco airless sprayer accessories to outfit your entire fleet.

Compatibility & Fleet Integration

This Stand version integrates with other popular Graco models and accessories:

• Graco Electric Paint Sprayer Models: Shared tip/guard standards make switching between the 495 ST Pro and tools like the Magnum X7, Ultra Max II, or fine finish sprayer models seamless.

• Graco Magnum X7 Parts: Guards, hoses, and tips from X7 often cross-fit the 495 rigid fluid circuits, enabling you to standardize graco spray tips and guards across sprayers.

• Supports graco fine finish sprayers workflow—swap to lower-pressure mode and finer fan tips like FFLP or WA for trim, staining, and cabinetry.

Organizing paint sprayer parts across compatible models reduces training overhead and speeds repairs.

Technical Specs at a Glance

• Max Flow Rate: 0.5–0.6 gpm (approx. 2.0 L/min)

• Operating Pressure: Up to 3,000 psi (207 bar)

• Power Source: 120 VAC MaxPower brushless motor

• Pump Assembly: Part #243183 displacement pump

• Includes: Contractor FTx gun with 515 RAC V tip, coupled 1/4″ × 50 ft hose (or upgrade to BlueMax II)

• Filter: 60‑mesh fluid filter standard (100 or 200 mesh optional)

• Weight & Dimensions: ~16.6 kg; compact stand footprint.

Maintenance & Pro Tips

1. Flush thoroughly after each job to avoid dried paint in valves and transducer.

2. Regularly replace packings and filters—kit includes gasket and seat valve replacements.

3. Use TSL lubricant around rods and seals between shifts to reduce friction and cut pack-out risk.

4. Stock common spares: extra FTx gun seals, filter inserts, suction tubes, and tip guard sets.

5. Organize cross-compatible items—tips, spare hose sections, gun handles, filter caps—to cover multiple product lines.

6. For serious issues like pump failure or electronics problem, search graco airless sprayer accessories and compatible spares, or contact a local service center via graco pump repair near me.

Frequently Asked Questions

Q: Is this sprayer ideal for fine finish work?
A: Yes—by pairing with graco fine finish sprayers tips and lowering spray pressure, the SmartControl system maintains a smooth, consistent fan for trim or stain jobs.

Q: Can Magnum X7 accessories fit this unit?
A: Many components like RAC X tip guards, suction tubes, and hose fittings are interchangeable. Having a bin of graco magnum x7 parts on-site gives flexibility for small mixed-use tasks.

Q: What if I need to switch tip sizes mid-job?
A: The 515 RAC V tip can be easily changed to other certified graco spray tips like LP 517 or FFLP without tools, giving you full control over finish patterns.

Summary and Why OEM Focus Matters

The Graco 495 ST Pro Stand Sprayer is a robust, contractor-grade electric sprayer suited for daily use with mid-level coatings. Keeping it functional depends on reliable paint sprayer parts—filters, pump kits, gun internals, hoses, and guards—that meet OEM specs. Complement your maintenance with cross-compatible items from graco airless sprayer accessories, magnum x7 parts, and fine finish sprayer systems for versatile deployment.
