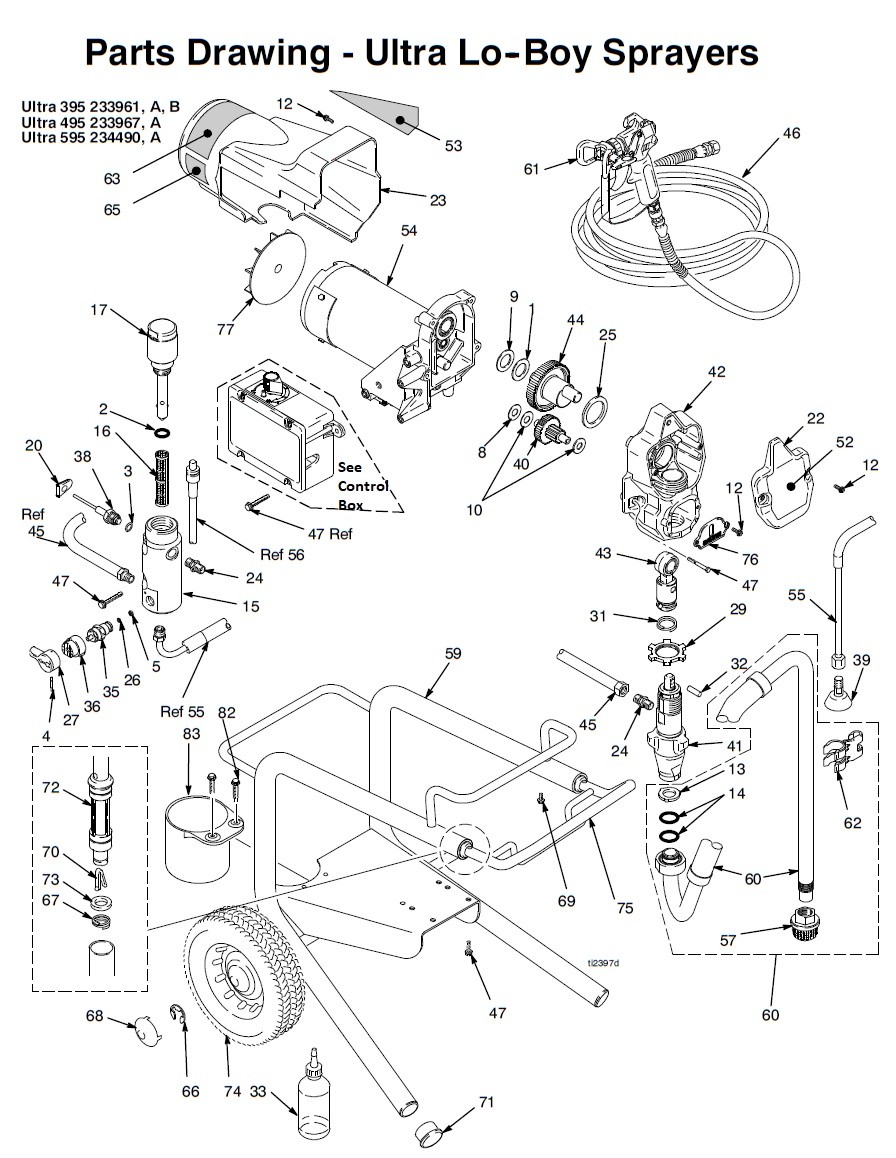

Graco Ultra 495 Lo-Boy Electric Airless Sprayer

Graco 287735 Brush Repair Kit

Item No: -

Part Number: 287735

UPC Number: 633955088788

Graco 287735 Brush Kit is the OEM motor carbon brush set that restores RPM and stops sparking on pop...

List Price: $274.00

You save: $38.09 (13.90%)

Sale Price: $235.91

QTY:

Graco 246382 | Easy Out Short Pump Manifold Filter (100 Mesh Blue)

Item No: --

Part Number: 246382

UPC Number: 633955921504

Graco 246382 is an Easy Out short pump manifold filter with 100-mesh (Blue) screening - ideal for pr...

$12.30

QTY:

Graco 246383 Tall Manifold 200 Mesh Filter (Red)

Item No: ---

Part Number: 246383

UPC Number: 633955921511

Graco 246383 is a 200-mesh (Red) Easy Out manifold filter for fine materials (stains, lacquers, seal...

$22.60

QTY:

Graco 246425 Short Manifold 30 Mesh Filter (Gray)

Item No: ----

Part Number: 246425

UPC Number: 633955921573

OEM Graco 246425 Short Manifold 30-Mesh (Gray) filter for reliable debris capture and smoother spray...

$12.30

QTY:

Graco 107434 Thrust Bearing

Item No: 1

Part Number: 107434

UPC Number: 633955430051

Graco 107434 Thrust Bearing—OEM axial bearing for the drive/crank assembly. Stabilizes end-load, r...

$5.75

QTY:

Graco 117828 Encapsulated O-Ring Packing Kit

Item No: 2

Part Number: 117828

UPC Number: 633955020344

Graco 117828 Encapsulated O-Ring Packing Kit seals the joint between the manifold filter and manifol...

$22.40

QTY:

Graco 111457 Packing O-Ring

Item No: 3

Part Number: 111457

UPC Number: 633955460584

Graco 111457 Packing O-Ring is a durable PTFE seal designed to maintain consistent pressure and prev...

$16.50

QTY:

Graco 111600 Grooved Pin

Item No: 4

Part Number: 111600

UPC Number: 633955582996

Graco 111600 Grooved Pin is a genuine OEM part designed to secure the handle in the Prime/Drain Valv...

$5.25

QTY:

Graco 111699 Valve Seat

Item No: 5

Part Number: 111699

UPC Number: 633955135529

The Graco 111699 Valve Seat ensures consistent spray performance and reliable flow in Graco airless ...

$6.00

QTY:

Graco 116073 E-10HP Thrust Washer

Item No: 8

Part Number: 116073

UPC Number: 633955980341

Graco 116073 E-10HP Thrust Washer reduces friction and maintains proper alignment in Graco airless s...

$5.25

QTY:

Graco 116074 Thrust Washer

Item No: 9

Part Number: 116074

UPC Number: 633955980358

Graco 116074 Thrust Washer helps reduce friction and maintain alignment in the drive mechanism of Gr...

$5.25

QTY:

Graco 116079 Thrust Bearing

Item No: 10

Part Number: 116079

UPC Number: 633955980365

Graco 116079 Thrust Bearing maintains proper alignment and reduces friction in the drive mechanism o...

$5.25

QTY:

Graco 117501 Slotted Hexagonal Washer Head Machine Screw

Item No: 12

Part Number: 117501

UPC Number: 633955017160

Graco 117501 Hexagonal Head Slotted Washer Machine Screw provides secure fastening for Graco airless...

$5.25

QTY:

Graco 115099 Garden Hose Washer Inlet Seal

Item No: 13

Part Number: 115099

UPC Number: 633955930162

Graco 115099 Garden Hose Washer Inlet Seal prevents leaks at the garden hose connection, ensuring pr...

$0.30

QTY:

Graco 117559 O-Ring

Item No: 14

Part Number: 117559

UPC Number: 633955017177

Ensure a tight seal in your Graco airless sprayer’s suction or inlet area. Prevent leaks and maint...

$5.90

QTY:

Graco 15G455 Fluid Manifold

Item No: 15

Part Number: 15G455

UPC Number: 633955113602

Graco 15G455 Fluid Manifold ensures precise control and distribution of fluid in Graco airless spray...

List Price: $119.00

You save: $12.38 (10.40%)

Sale Price: $106.62

QTY:

Graco 246384 Tall Manifold 60 Mesh Filter (Black)

Item No: 16

Part Number: 246384

UPC Number: 633955921528

Graco 246384 Tall Manifold 60 Mesh Filter (Black) protects your sprayer pump from debris, ensuring c...

$12.30

QTY:

Graco 287167 Manifold Filter Cap Repair Kit

Item No: 17

Part Number: 287167

UPC Number: 633955018464

Graco 287167 Filter Cap Repair Kit secures the manifold filter and protects your sprayer pump from d...

List Price: $75.25

You save: $6.24 (8.29%)

Sale Price: $69.01

QTY:

Graco 15B120 Transducer Grommet

Item No: 20

Part Number: 15B120

UPC Number: 633955017351

Graco 15B120 Transducer Grommet securely mounts the pressure transducer in your sprayer, protecting ...

$5.25

QTY:

Graco 287058 Front Cover Repair Kit

Item No: 22

Part Number: 287058

UPC Number: 633955923089

Graco 287058 Front Cover Repair Kit restores the protective front cover of your sprayer, ensuring in...

List Price: $124.00

You save: $12.9 (10.40%)

Sale Price: $111.10

QTY:

Graco 287056 Motor Shield Repair Kit

Item No: 23

Part Number: 287056

UPC Number: 633955922914

Graco 287056 Motor Shield Repair Kit protects your sprayer's motor from debris and environmental dam...

List Price: $87.00

You save: $7.22 (8.30%)

Sale Price: $79.78

QTY:

Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 24

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting ensures secure, leak-free connections in pumps and manifolds, maintainin...

$25.40

QTY:

Graco 180131 Thrust Bearing

Item No: 25

Part Number: 180131

UPC Number: 633955624924

Graco 180131 Thrust Bearing ensures smooth operation of your sprayer pump by supporting axial loads ...

$9.80

QTY:

Graco 15E022 Prime Valve Seat

Item No: 26

Part Number: 15E022

UPC Number: 633955083844

Ensure your Graco sprayer runs smoothly with the 15E022 Prime Valve Seat. Maintains a secure seal an...

$14.70

QTY:

Graco 187625 Drain Valve Handle

Item No: 27

Part Number: 187625

UPC Number: 633955588868

Graco 187625 Drain Valve Handle is a genuine OEM replacement part designed for precise control of th...

$8.60

QTY:

Graco 195150 Pump Jam Nut

Item No: 29

Part Number: 195150

UPC Number: 633955930902

Graco 195150 Pump Jam Nut is a critical component that secures the pump assembly, ensuring reliable ...

$8.30

QTY:

Graco 196750 Retaining Spring

Item No: 31

Part Number: 196750

UPC Number: 633955980518

Graco 196750 Retaining Spring is a durable component that keeps internal parts aligned for smooth, r...

$5.25

QTY:

Graco 196762 Straight Pin

Item No: 32

Part Number: 196762

UPC Number: 633955980532

Ensure secure and reliable operation of your Graco sprayer with the 196762 Straight Pin. Perfect for...

$7.00

QTY:

Graco 206994 Throat Seal Liquid replaces Graco 867670

Item No: 33

Part Number: 206994

UPC Number: 633955309692

Maintain your sprayer’s performance with the Graco 206994 Throat Seal Liquid (TSL) - designed to p...

$16.30

QTY:

Graco 235014 Prime Drain Valve Spray Kit

Item No: 35

Part Number: 235014

UPC Number: 633955349100

Maintain your Graco airless sprayer with the 235014 Prime Drain Valve Spray Kit. Ensures smooth prim...

List Price: $121.00

You save: $28.07 (23.20%)

Sale Price: $92.93

QTY:

Graco 224807 Prime Valve Base

Item No: 36

Part Number: 224807

UPC Number: 633955364264

Ensure smooth priming and reliable operation of your Graco airless sprayer with the 224807 Prime Val...

$6.85

QTY:

Graco 243222 Pressure Transducer

Item No: 38

Part Number: 243222

UPC Number: 633955920880

Maintain precise pressure control and consistent spray performance with the 243222 Pressure Transduc...

List Price: $169.50

You save: $21.19 (12.50%)

Sale Price: $148.31

QTY:

Graco 241920 Threaded Deflector

Item No: 39

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$5.25

QTY:

Graco 244242 Combination Gear Repair Kit

Item No: 40

Part Number: 244242

UPC Number: 633955963375

Graco 244242 Combination Gear Repair Kit restores smooth gear function and prolongs the lifespan of ...

List Price: $153.50

You save: $19.19 (12.50%)

Sale Price: $134.31

QTY:

Graco 246428 Endurance Pump

Item No: 41

Part Number: 246428

UPC Number: 633955950078

Durable Graco 246428 Endurance Chromex Pump designed for long life and smooth performance. Perfect O...

List Price: $405.00

You save: $59.13 (14.60%)

Sale Price: $345.87

QTY:

Graco 287055 Drive Housing Repair Kit

Item No: 42

Part Number: 287055

UPC Number: 633955922419

Graco 287055 Drive Housing Repair Kit restores your sprayer’s drive system to peak performance. De...

List Price: $188.50

You save: $23.56 (12.50%)

Sale Price: $164.94

QTY:

Graco 287053 Connecting Rod Kit

Item No: 43

Part Number: 287053

UPC Number: 633955922327

Graco 287053 Connecting Rod Kit keeps your sprayer running smoothly by transferring power from the m...

List Price: $100.00

You save: $8.3 (8.30%)

Sale Price: $91.70

QTY:

Graco 287054 Crankshaft Repair Kit

Item No: 44

Part Number: 287054

UPC Number: 633955922334

Graco 287054 Crankshaft Repair Kit is a genuine OEM replacement designed to restore power and smooth...

List Price: $104.00

You save: $10.82 (10.40%)

Sale Price: $93.18

QTY:

Graco 287003 Pressure Return Hose Coupled

Item No: 45

Part Number: 287003

UPC Number: 633955018365

Graco 287003 Pressure Return Hose Coupled is a durable OEM replacement hose designed for reliable fl...

List Price: $34.00

You save: $1.87 (5.50%)

Sale Price: $32.13

QTY:

Graco 240794 BlueMax II Airless Hose

Item No: 46

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

List Price: $99.00

You save: $26.69 (26.96%)

Sale Price: $72.31

QTY:

Graco 117493 Hexagonal Head Washer Machine Screw

Item No: 47

Part Number: 117493

UPC Number: 633955017146

Graco 117493 Hexagonal Head Washer Machine Screw is a durable OEM fastener designed for precise fit ...

$5.25

QTY:

Graco 287015 Motor 120V

Item No: 54

Part Number: 287015

UPC Number: 633955924291

Graco 287015 Motor (120V) is a genuine replacement motor designed for the Ultra 495 sprayer series. ...

List Price: $607.00

You save: $97.12 (16.00%)

Sale Price: $509.88

QTY:

Graco 246381 Drain Line Repair Kit

Item No: 55

Part Number: 246381

UPC Number: 633955921498

Graco 246381 Drain Line Repair Kit is a service kit for repairing or replacing the drain line in Gra...

List Price: $48.80

You save: $3.71 (7.60%)

Sale Price: $45.09

QTY:

Graco 246385 Inlet Strainer 7/8

Item No: 57

Part Number: 246385

UPC Number: 633955921535

Graco 246385 Inlet Strainer (7/8") keeps debris from entering your sprayer pump, helping maintain pe...

$16.50

QTY:

Graco 246250 Lo Boy Cart Frame

Item No: 59

Part Number: 246250

UPC Number: 633955018273

Graco 246250 LO Cart Frame is a genuine OEM cart frame designed for LO (Line Operator) systems, prov...

List Price: $247.50

You save: $34.4 (13.90%)

Sale Price: $213.10

QTY:

Graco 246386 Suction Set Hose Assembly

Item No: 60

Part Number: 246386

UPC Number: 633955921542

The Graco 246386 Suction Set Hose Assembly is a genuine OEM part designed to ensure smooth, consiste...

List Price: $165.00

You save: $20.62 (12.50%)

Sale Price: $144.38

QTY:

Graco 288420 Contractor Airless Spray Gun

Item No: 61

Part Number: 288420

UPC Number: 633955215764

Graco 288420 Contractor Airless Spray Gun is built for professional painters who need precision, com...

List Price: $470.00

You save: $195.5 (41.60%)

Sale Price: $274.50

QTY:

Graco 276888 Drain Line Clip

Item No: 62

Part Number: 276888

UPC Number: 633955018358

Graco 276888 Drain Line Clip securely holds the drain/prime hose and suction tube in place, preventi...

$5.25

QTY:

Graco 15B516 Fire Explosion Warning Label

Item No: 63

Part Number: 15B516

UPC Number: 633955017702

Graco 15B516 Fire/Explosion Warning Label is a genuine OEM safety decal used on various Graco spraye...

$5.00

QTY:

Graco 195793 Warning Label

Item No: 65

Part Number: 195793

UPC Number: 633955918580

A Genuine OEM Safety Label Graco 195793 Warning Label is an important safety component that ensures...

$5.00

QTY:

Graco 15B999 Retaining Clip

Item No: 66

Part Number: 15B999

UPC Number: 633955018181

Graco 15B999 Retaining Clip is a genuine OEM part designed to securely hold components in place with...

$5.25

QTY:

Graco 104811 Hub Cap

Item No: 68

Part Number: 104811

UPC Number: 633955129023

The Graco 104811 Hub Cap is a genuine OEM component designed to protect and secure the wheel hub are...

$7.45

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 69

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$7.30

QTY:

Graco 107310 Tubing Plug

Item No: 71

Part Number: 107310

UPC Number: 633955365681

The Graco 107310 Tubing Plug securely seals tubing connections in Graco airless spray systems, preve...

$5.75

QTY:

Graco 195766 Semi Pneumatic Wheel

Item No: 74

Part Number: 195766

UPC Number: 633955916975

The Graco 195766 Semi-Pneumatic Wheel provides smooth mobility for sprayer carts. Durable and punctu...

List Price: $50.75

You save: $4.21 (8.30%)

Sale Price: $46.54

QTY:

Graco 287488 Lo-Cart Handle Assembly

Item No: 75

Part Number: 287488

UPC Number: 633955195929

Ensure smooth handling and stability for your Graco Lo-Cart sprayer with this genuine replacement ha...

List Price: $124.00

You save: $12.9 (10.40%)

Sale Price: $111.10

QTY:

Graco 15B589 Pump Rod Cover

Item No: 76

Part Number: 15B589

UPC Number: 633955017726

The Graco 15B589 Pump Rod Cover is an OEM protective sleeve that shields the pump rod and linkages f...

$5.25

QTY:

Graco 248189 Fan Motor Repair Kit

Item No: 77

Part Number: 248189

UPC Number: 633955048591

Graco 248189 Fan Motor Repair Kit keeps your sprayer’s motor cool and running efficiently by repla...

List Price: $33.70

You save: $1.85 (5.49%)

Sale Price: $31.85

QTY:

Graco 122667 Hexagonal Head Washer Drill Screw

Item No: 82

Part Number: 122667

UPC Number: 633955516670

The Graco 122667 Hexagonal Head Washer Drill Screw provides reliable fastening and load distribution...

$2.05

QTY:

Graco 15B870 Suction Drain Cup

Item No: 83

Part Number: 15B870

UPC Number: 633955018112

The Graco 15B870 Suction Drain Cup is an OEM part designed to manage fluid suction and drainage in G...

$15.30

QTY:

Get the Right Graco Ultra 495 Lo-Boy Electric Airless Sprayer Components for Peak Performance

When uptime, finish quality, and bid margins are on the line, pros count on Graco Ultra 495 Lo-Boy Electric Airless Sprayer. At SprayersAndParts.com, we stock every OEM rod, seal, and circuit board you need that turns “shopping” into “spraying.” Our catalog ranges from a single graco magnum x7 replacement spray gun to full graco spray pump parts kits, so you can spec, source, and ship in one friction-free stop.

Why the 495 Lo-Boy Stays a Job-Site Favorite

Pro-size output: A 1.2 hp brushless DC motor drives up to 0.54 gpm—ideal for single- or two-gun repaint crews .
Full-range pressure: Spray anything from stains at 50 psi to elastomerics at 3,300 psi thanks to Low/High pressure modes.
SmartControl™ digital display: Constantly adjusts motor speed for a flat fan and ±1 % pressure accuracy, even on 200 ft hose runs.
ProConnect™ pump swap: Drop in a fresh lower in under one minute—no wrenches—slashing downtime on multi-day jobs.
Contractor PC gun included: The lightest trigger in its class cuts fatigue 50 % and accepts every RAC X LP/FFLP tip family.

Core Performance Specs

Max working pressure: 3,300 psi / 228 bar
Max tip size (1 gun): 0.027 in (RAC X)
Max flow rate: 0.54 gpm / 2.0 L min-1
Motor: 1.2 hp brushless DC—maintenance-free and generator-friendly.
Recommended production: 30–75 gal per week for residential & light commercial crews.

One Parts Drawer, Multiple Rigs: Compatibility Highlights

The 495 PC shares DNA with several other Graco stalwarts, letting you stretch inventory dollars:

Ultra 395 PC & 595 PC—identical V-Max Blue™ packings and pump housings; our graco spray pump parts kit services all three models .
Magnum X7 & LTS 17—swap guns easily with a graco magnum x7 replacement spray gun; RAC X guards thread straight on .
TrueCoat 360—Low-pressure LP 515 tips fit the same blue guard, perfect for trim after rolling walls.
Air Pro spray guns—feed HVLP fine-finish jobs via a 3/16-in fluid whip while keeping the 495 as your pressure pot.
Fine Finish Guns—Graco FF LP and Contractor PC Compact share the same cartridge, so one spare keeps both guns field-ready.

Must-Have Accessories for Faster, Cleaner Jobs

Graco Fine Finish Guns: Pair an FFLP 210 tip for cabinets or an LP 517 for walls—up to 50 % less overspray.
12- to 36-in extensions: Reach soffits and stairwells while keeping the gun upright; perfect for graco spray gun accessories color-coded bins.
BlueMax II hose sets: Lightweight, anti-static, and rated to 3,300 psi—no pressure drop on 200-ft runs.
Air Pro guns: Snap an HVLP cup on the same compressor line for varnish touch-ups without cleaning the 495 pump.
TrueCoat 360 replacement parts: Keep handhelds on the truck for tight closets or punch-list spots.

Five Reasons OEM 495 Parts Outperform Aftermarket Knock-Offs

Precision machining: Chrome rods ground to ±0.001 in hold 3,300 psi without creep—aftermarket rods often glaze at 2,700 psi.
Chemical-tested packings: Viton®, UHMW-PE, and leather seals survive 1,000-hour immersion in solvent, latex, and alkyd blends.
QuikAccess™ intake valve: Faster flushing, less solvent, zero tool time.
Warranty intact: Only OEM parts keep the pump, drive, and SmartControl board under Graco’s 12-month coverage.
Higher resale: Fleet sprayers logged in BlueLink™ with OEM rebuilds fetch up to 17 % more at auction.

Pro Tips for 10,000-Hour Reliability

Daily: Flush with FastFlush™ for 45 s, add three drops of TSL oil.
Every 500 gal: Replace the 60-mesh manifold filter and clean the inlet strainer.
Every 1,000 h: Install a ProConnect™ pump lower—one nut, one minute—and log the change in BlueLink.
Every 2 years: Swap the SmartControl pressure sensor to maintain ±1 % fan uniformity.
Trouble-free winterization: Run Pump Armor® until green solution appears at the gun; store at 40 °F+.

Frequently Asked Questions

Can the 495 Lo-Boy power two guns?: Yes. With 0.54 gpm you can run two 0.015 tips at 2,000 psi for primers or stains—ideal for stairwells or duplex exteriors.
Is the Lo-Boy weaker than the Hi-Boy?: Performance is identical; only the frame height changes. The Lo-Boy fits under truck toppers and slides into vans easier.
Will my graco air pro spray gun work on the 495?: Absolutely. Use a 3/16-in fluid whip and keep the regulator at 20–30 psi. The pump acts like a pressure pot for fine-finish work.
What tip should I use for interior walls?: Start with an LP 517 for latex. Step down to an FFLP 210 for doors, or up to an LP 521 for heavier acrylics.

Boost Productivity—Order OEM 495 Parts Today

Ready to keep crews earning and bids on schedule? Add genuine Graco Ultra 495 Lo-Boy Electric Airless Sprayer parts including graco fine finish guns, graco spray gun accessories, and graco truecoat 360 replacement parts—to your cart now and proven compatibility across the 395-595 family, SprayersAndParts turns downtime into go-time every single job.

Graco Ultra 495 Lo-Boy Electric Airless Sprayer

Get the Right Graco Ultra 495 Lo-Boy Electric Airless Sprayer Components for Peak Performance

Why the 495 Lo-Boy Stays a Job-Site Favorite

Core Performance Specs

One Parts Drawer, Multiple Rigs: Compatibility Highlights

Must-Have Accessories for Faster, Cleaner Jobs

Five Reasons OEM 495 Parts Outperform Aftermarket Knock-Offs

Pro Tips for 10,000-Hour Reliability

Frequently Asked Questions

Boost Productivity—Order OEM 495 Parts Today

ADDRESS

INFORMATION

YOUR ACCOUNT

Quick Links
