Graco Ultra 1095 XT Standard Pro Hi-Boy Pump (2001551) Electric Airless Sprayer Parts List

Graco Ultra 1095 XT Standard Pro Hi-Boy Pump (2001551): Complete Parts List & Buyer’s Guide

Keep your high-output electric rig spraying like new with OEM graco paint sprayer parts made for the Ultra 1095 XT platform. This customer-focused guide highlights the most requested pump components, smart maintenance habits, and quick links so you can fix issues fast, protect finish quality, and cut downtime on site.

At-a-Glance: What You’ll Find Here

• Factory 2001551 Endurance Vortex MaxLife pump lower and wear kits
• Packing/seat sets, cylinder & piston rod kits, valves, O-rings, wipers
• Symptom-to-part guidance (tails, leaks, slow prime, pressure drop)
• Pro tips to extend service intervals on large-electric rigs

Top OEM Components for the 1095 XT Pump (2001551)

These are the fast-moving items technicians keep on hand for quick turnarounds. For current availability and pricing, use the live product grid on the 2001551 pump parts page. If you’re stocking a van kit across multiple rigs, shop category-wide graco airless sprayer parts via pumps, pistons, cylinders & repair kits.

• 2001551 Endurance Vortex MaxLife Pump Lower: complete factory lower.
• 17H839 Pump Repair Kit: cartridge-style rebuild for fast repacking.
• 2001532 Cylinder Kit: restores sealing surface and flow.

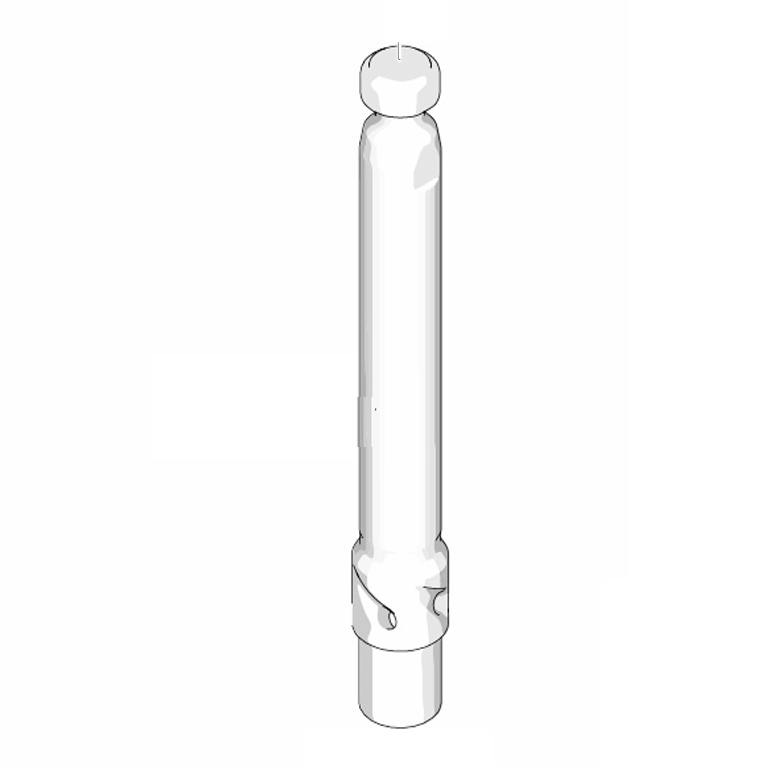

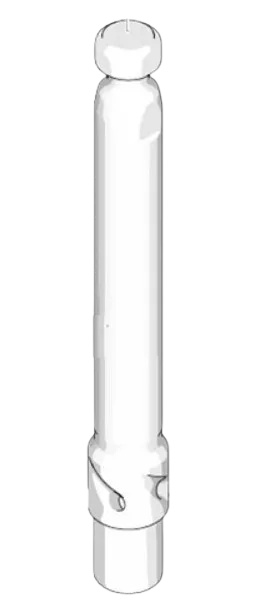

• 2001540 Piston Rod Kit: consistent pressure and longer packing life.
• 24U993 Piston Valve & 244199 Intake Valve Seat Kit: precision check valves.
• 15E654 Intake Valve Housing: OEM seating and flow consistency.
• 183171/193032 Upper Packing Nut & Dust Plug: top-end sealing hardware.
• V-Packings & Glands: leather and blue vee options for duty and media.
• O-Rings & Wipers: key seals for leak-free performance.

Faster Setup, Easier Service

Newer guns, guards, and access points shorten setup and breakdown and reduce trigger fatigue. Keep a small kit with filters, seals, guards, and a spare tip so most issues take minutes, not hours. For day-to-day service items, you can source OEM graco paint sprayer gun parts alongside pump kits from Graco painting & coating sprayer parts.

Choose the Right Part: Symptom → Fix

• Persistent tails or uneven fan: Check the tip first, then gun and manifold filters. If pressure is steady but pattern is poor, packings may be worn. Use the 17H839 repair kit or repack with matched V-packings.
• Slow priming or loss of pressure: Inspect intake seat and piston valve (244199, 24U993). Replace cylinder (2001532) or piston rod (2001540) if scored.
• External leaks or wet-cup use: Replace upper packing nut and dust plug (193032, 183171), renew O-rings, and install a fresh wiper.
• Frequent clogs: Confirm filter mesh matches tip orifice. Replace Easy-Out filters and verify valve seating components.

Compatibility & Performance Notes

The Ultra 1095 XT pairs a high-torque electric drive with an Endurance MaxLife lower for steady delivery across a wide pressure range, ideal for large interiors, block fill, and high-build coatings. When in doubt on fit, reference OEM numbers and order exact graco parts for your series to avoid rework.

Maintenance That Extends Service Intervals

• Strain coatings and size the tip to material and target fan width.
• Match manifold and gun filter mesh to tip orifice to prevent cavitation and tails.
• Spray at the lowest pressure that keeps a clean fan to avoid unnecessary wear.
• Flush immediately after use and clean tip, guard, and filters before storage.

Considering an Upgrade?

If workloads outgrow a rebuild, step up in output or features. For larger projects and thicker coatings, consider cart-mounted solutions. For quick handheld work, trim, and touch-ups, the TrueCoat line, like the TrueCoat 360 Series, offers rapid setup with minimal cleanup.

Ready to Order?

Head to the live 1095 XT Standard Pro Hi-Boy Pump (2001551) parts list for factory assemblies and wear items above, plus current pricing and stock status. If you’re maintaining several rigs, start from the 1095 XT series catalog to consolidate your cart and ship everything in one go.
