Graco Ultra 1095 XT Standard Hi-Boy Parts — Maintain & Upgrade with Precision-Engineered 1095 XT Hi-Boy Parts

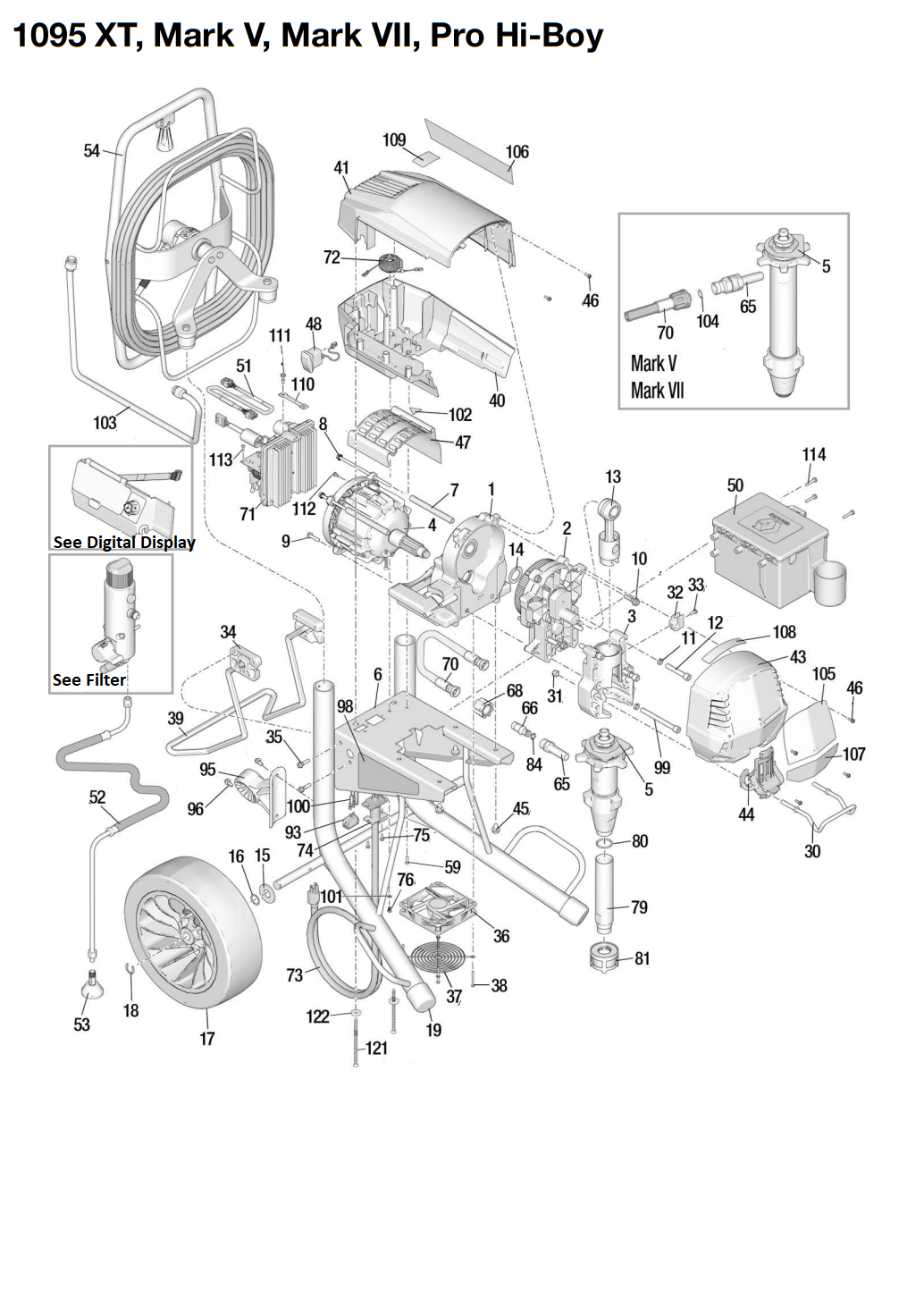

Ultra 1095 XT Standard delivers serious output without the bulk of a gas rig. Driven by a 2.7 HP Xtreme-Torque™ motor and an Endurance Vortex MAXLIFE pump, this Hi-Boy pushes 1.3 gpm (4.9 l min-1) at 3 300 psi, handling tips to .035 in for high-build elastomerics and intumescent fireproofing. The payoff is huge productivity—until a scarred Chromex® rod or clogged filter stalls the crew. That’s when pros count on SprayersAndParts.com for factory-serialized Graco Paint Sprayers Parts that bolt in, prime up and get revenue flowing again. Our live exploded diagram lets you zoom from the SmartControl® board down to the ball seat, click the call-out and drop genuine parts straight into one cart—no cross-referencing
Why Choose Genuine Components?
- Chromex® + Vortex longevity. OEM piston rods get a nickel-diffusion layer and spiral lube ports, outlasting flash-chrome clones 2-to-1 on silica-filled coatings.
- Rapid-Response pressure control. Factory-flashed boards hold ±1 % pressure from 400 psi trim coats to full block-filler blast—copycats hunt, surge and waste paint.
- 3 300 psi burst margin. Manifold blocks, hoses and guards are hydro-tested at 150 % rating—critical during tip-clean spikes on texture rounds.
- Warranty intact. Using off-brand seats voids Graco’s Lifetime Advantage Drive™ coverage; stay genuine, keep resale value.
Tech Snapshot & Top-Mover Kits
| Max Working Pressure | 3 300 psi / 227 bar |
|---|---|
| Max Flow | 1.3 gpm / 4.9 l min-1 |
| Motor | 2.7 HP brushless Xtreme-Torque™ |
| Packing Kit | 19B195 V-Max Blue™ (rod, seals, seat) |
| Piston Rod | 19B201 Chromex® stainless |
| Filter | 181072 60-mesh Easy-Out™ |
| Guard / Tips | RAC X™ blue—fits all graco paint sprayer guard |
Cross-Fleet Compatibility—One Cart Covers Many Rigs
Graco’s modular platform means your 1095 stock rescues multiple sprayers:
- Ultra Max II 1095 ProContractor. Identical pump lower, board and filter; only hour-meter changes.
- GMAX 7900 Gas. Shares guard, tip seats and 181072 manifold filter; perfect when pairing electric for interiors and gas for rooftops.
- Magnum X5 & LTS 17. Same RAC X guard and inlet strainer via adapter—graco magnum x5 airless paint sprayer parts live in the same toolbox.
- 395 & 495 PC Pro. Filter core, guard and many O-rings match—handy when packing graco whip hose assemblies for trim teams.
- Texture rigs. graco texture guns run the same tip guards and hoses, streamlining consumables.
Smart Accessory Bundles that Pay for Themselves
- Endurance™ Pump Swap. Pre-primed lower (no bench vise) swaps in 60 s—billable hours saved day one.
- BlueMax II Hose Kit. 50 ft × ¼ in main + 3 ft whip dampen pulsation, adding 20 % seal life across Graco airless paint sprayers.
- LP & FFLP Tip Pack. Twelve patterns cut overspray 50 % and reduce amp-draw—ideal for night shifts on generators.
- Pump Armor® Storage Kit. Anti-rust fluid + cam-lock plug keep Chromex rods spotless through winter shut-downs.
Pro Maintenance Blueprint — Five Habits for 2 000-Hour Pumps
1 • Log gallons. Swap packings every 1 000 L latex / 500 L solvent.
2 • Flush warm. 40 °C rinse dissolves acrylic twice as fast; half-pressure back-flush clears the transducer.
3 • TSL™ every break. Two drops guard Chromex rods.
4 • Monthly torque. Crankcase bolts 20 N·m—loose bolts hammer gears.
5 • Stock redundancy. One $70 filter + $220 pump kit beats a $5 000 delay.
Add to Cart—Spray Tomorrow
Scroll the live parts list, tick your pump kit, filter, rod and guard, then hit Add to Cart. One freight fee, one tracking link, one bullet-proof fix—see you on tomorrow’s jobsite.
