The Graco Ultra 1095 XT is a heavy-duty graco electric paint sprayer built for contractors demanding powerful performance and effortless serviceability. This comprehensive parts list showcases every essential component—from chassis to sprayer gun—ensuring your machine works at peak efficiency and longevity.

1. Chassis, Housing & Frame Components

Chassis (2003293), Drive Housing (2003291), and Bearing Housing (2003295) deliver the rugged support needed for high-pressure work.
Complete Frame & Cart Assemblies (19D664) with sturdy wheels and legs provide durable mobility.
Smaller parts like axle clips, leg caps, and motor spacers help prevent vibrations and wear.

2. Motor & Drive System

Motor Kit (2003300): Heavy-capacity 2.7 HP Xtreme Torque motor, engineered for high pressure and efficiency.
Connecting Rod Repair Kit (24V085), thrust washer, and associated hardware support reliable power transmission.
Cooling components: fan (19D923) and guard (19D924) keep temperatures in check.
Structural elements like motor covers and shrouds support machine integrity.

3. Pump Assembly & Repair Kits

Pump Kit (2001551) is the heart of your sprayer. It includes pistons, packing, valves, and seals.
Use this as part of proactive maintenance with graco pump repair kits—a must for lengthy jobs or brush-heavy conditions.
Additional parts: pump rod cover (20B131), manifold rebuild items, and suction/drain hoses.

Tip: Consider including graco magnum x5 parts like universal O‑ring and valve kits—they often match XX.

4. Fluid Hoses, Gun & Spray Tips

Includes airless hoses—e.g., BlueMax II 1/4″ × 50 ft, whip hoses, and primer/drain lines.
Spray Gun (Contractor PC Gun) paired with rugged guards and extensions gives flexibility on site.
Works seamlessly with graco airless spray guns and graco spray tips like the RAC X LP 517 switchtip.
Compatible with paint gun accessories like tip extenders, guards, and hoses—ideal for sensitive finishes.

5. Filters, Control Box & Accessory Components

Fluid filters—30, 60, 100, 200 mesh options—plus diffusers, caps, and bases enhance spraying consistency.
Control panels, potentiometers, rocker switches, transducers, control board, and power cords govern pump pressure and performance.
These graco paint gun accessories ensure quick troubleshooting and replacement when electrical elements falter.

6. Fasteners, Labels & Support Hardware

A meticulous selection of screws, washers, clips, and brackets ensures everything from the pump shield to the tool box stays secure.
Certified labels and warning tags help maintain safety standards.
These parts may be small—but replacing worn hardware prevents larger failures.

Why Official OEM Parts Matter

True Fit & Compatibility: All parts align with the official graco parts list, ensuring seamless integration.
Built to Handle Pressure: Rated for up to 3,300 psi; built graco tolerance keeps graco airless spray guns performing under pressure.
Warranty Support & Durability: OEM parts help keep warranties valid and machine lifespan maximized.
Complete Packages: Bundled graco pump repair kits and gun accessories ensure you always have what you need on hand.

Maintenance & Replacement Tips

Symptom	Parts to Inspect / Replace
Drop in pressure	Pump pistons, O‑rings, valves, seals
Air in paint line or streaking	Leak in hoses, spray tip wear, valve seats
Motor overheating or slow start	Fan, shroud, motor kit components
Electrical malfunctions	Fuse, wiring harness, rocker switch, control board
Vibrations during operation	Chassis fasteners, bearings, frame bolts

Pro Advice: Rebuild your pump every 1,000 hours or annually—stock a graco pump repair kit and essential parts like graco spray tips and gun accessories for jobsite readiness.

Beyond the 1095 XT: Compatibility Highlights

Many components work across Graco’s Ultra XT line, including 695 XT and 795 XT—saving you inventory space.
Graco Magnum X5 parts (common hoses, seals, O-rings, tip adaptors) often fit 1095 XT systems.
Spray tips and gun accessories remain universal across Graco’s contractor airless pumps.

Ordering Guide & Pro Tips

Identify the performance issue (e.g., sputtering, uneven finish, leaks).
Consult the official graco parts list and exploded diagrams to find OEM part numbers.
Order the exact OEM part—fast shipping and accurate fit.
Keep spares of wear items (O‑rings, seals, spray tips) ready for field repairs.
Follow maintenance logs, replacing parts proactively to avoid unscheduled downtime.

Final Takeaway

The Graco Ultra 1095 XT Standard Hi‑Boy is a top-tier graco electric paint sprayer designed for commercial performance and durability. With this all-encompassing OEM parts breakdown, you can:

Conduct maintenance confidently with graco pump repair kits
Keep your graco airless spray guns and accessories at peak condition
Replace worn components seamlessly with the graco parts list guide
Leverage cross-compatibility with graco magnum x5 parts and paint gun accessories

Invest in genuine parts, prioritize routine service, and your Graco 1095 XT will deliver powerful, consistent performance job after job.

Keep your sprayer running like new—order your parts today and maintain professional-grade finishes with ease.

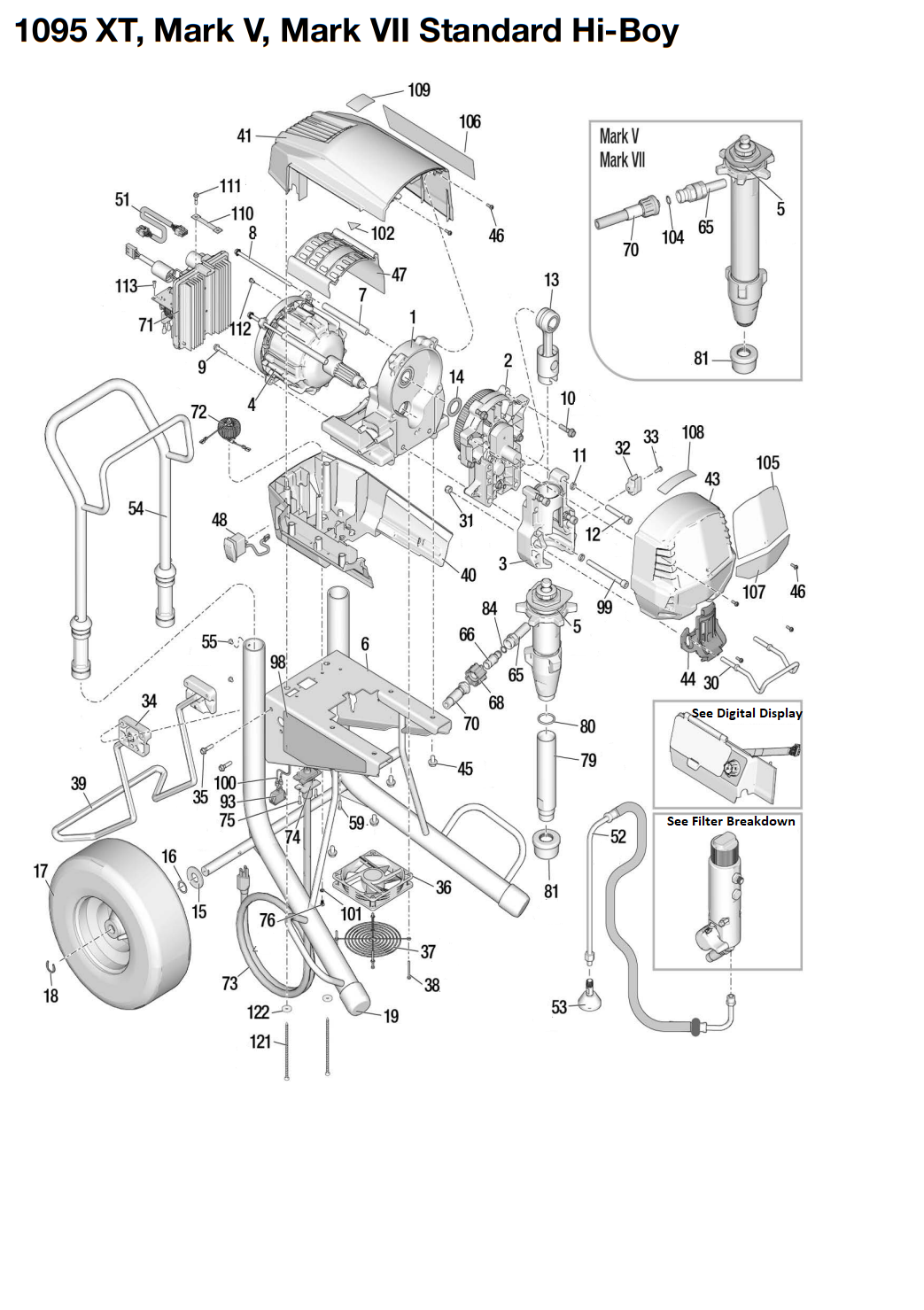

Graco Ultra 1095 XT Standard Hi-Boy Electric Airless Sprayer Parts List
