Graco UltraMax II Mark V Series A Control Box Parts List

Maintain & Upgrade with Precision‑Engineered Graco UltraMax II Mark V Series A Control Box Parts List

When uptime, quality, and control are mission-critical, contractors rely on Graco UltraMax II Mark V Series A sprayers—especially their electronic control boxes—to keep jobs running smoothly. At Sprayersandparts.com, we offer a complete, OEM-approved control box parts list, along with the fast shipping and technical support pros expect. Dive deep into this 2000+ word guide to discover why genuine Graco parts make all the difference—and how to use our site to spec, source, and ship your replacements without a hitch.

1. Why Genuine UltraMax II Mark V Series A Control Box Parts Matter

Exact Engineering Meets On‑Site Reality

Graco’s control boxes (a.k.a. “SmartControl” for Series A) combine pressure sensing, electronics, and rugged packaging. OEM parts ensure your system retains its accuracy and durability—no misreads, no shorts, no system instability.

Withstands Harsh Conditions

Spray sites vary in temperature, dust, and moisture. Genuine parts are tested under these conditions with rated IP protection—not knock-offs. That means better moisture ingress protection and proven chemical resistance.

Warranty & Expert Support

Only OEM control parts keep both Graco’s warranty intact and earn you access to our technical team trained specifically on UltraMax II electronics. We help identify firmware versions, part numbers, and wiring harness builds.

2. Control Box Parts Overview – Key Components

The UltraMax II Mark V Series A system breaks down into several designated parts:

1. SmartControl Module
   The “brain” of the system. Handles pressure regulation, diagnostics, and user interface.

2. Pressure Transducer
   Detects fluid pressure from the gun and signals the module to stop/start.

3. Power Switch Assembly
   The heavy-duty on/off rocker switch rated for field conditions.

4. Wire Harness & Connectors
   Rugged, quick-disconnect connectors that channel signals and power.

5. Indicator LEDs & Buttons
   Provide spray status, warnings, and reset or bleed-off control.

6. Enclosure & Mounting Hardware
   Compact, powder-coated metal housing and bracket with vibration dampening.

7. Software or Firmware Chips (sometimes critical for newer firmware patches).

Having each part available OEM means repairing instead of replacing the entire unit—big cost savings.

3. Key Features & Specs to Watch

Each part listing on Sprayersandparts.com includes essential specifications:

• Material Grades: rugged thermoplastics, stainless fasteners, IP67 sealing where applicable.

• Voltage Ratings: 115/230 VAC range, overload protections included in OEM parts.

• Fluid-Pressure Ratings: all rated for 3,300 PSI maximum.

• Connectors: keyed to specific Graco harness formats—no cross-compatibility errors.

• Part Diagrams: linked to exploded diagrams for accurate identification and ordering.

These specs matter because even small mismatch errors—like wrong pin-count harness connectors—can disable the whole sprayer.

4. Model Compatibility & Build Variants

The UltraMax II Mark V Series A underwent minor hardware refreshes but retains common compatibility across:

• Mark V UltraMax II Series A (serial range Yxxxxx–Zxxxxx)

• Only some parts change (e.g., sub-model serial suffix) – our system helps you confirm correct fitment.

International or Canadian builds have identical control box parts. Our search system includes dozens of serial-compatible part matches.

5. Fast Shipping & Pro Technical Support

Your order, your way:

• Same-Day Shipping if by 12 PM Central (Mon–Fri) from Graco warehouse (Terms & Conditions apply)

• Delivery in 1–3 business days virtually nationwide

• Technical assistance available live via chat, phone, or email for part confirmation, quoting, installation, or DVM voltage check guidance

• Pick-up option for Houston, Texas contractors in a pinch

If you're dealing with a non-working or intermittent control board, we can walk you through validation steps and our part portal will show specific firmware and harness variations.

6. Pro Tips for Long-Term Control Box Health

Minimize future issues with these strategies:

• Recover firmware mid-life—Solder-in modules last longer

• Clean connector pins and apply dielectric grease

• Install a GFCI or breaker on your power feed

• Torque the board screws to spec: 48 in-lb

• Keep harness away from heat or spray

7. Detailed Control Box Parts List

Here’s a breakdown of OEM parts to keep your control box mission-ready:

• SmartControl Module (Part #209254) – core replacement part

• Pressure Transducer (139452) – ensure accurate read-back

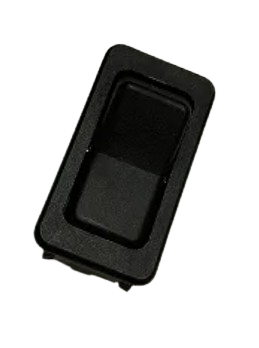

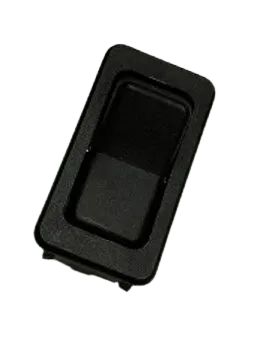

• Power Rocker Switch (161472) with sealed cover

• 12-pin Power/Harness Assembly (Part #139458)

• Mounting Plate w/ Bracket (156129)

• LED/Push-Button Kit (159761) – includes user controls

• Firmware Board Kit (145702) – for control accuracy

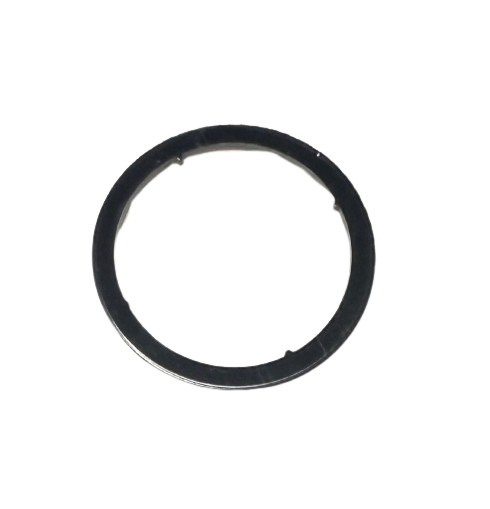

• Seal & Gasket Kit for IP67 protection (139459)

• Diagnostic Jumper Kit for diagnostics/bleed

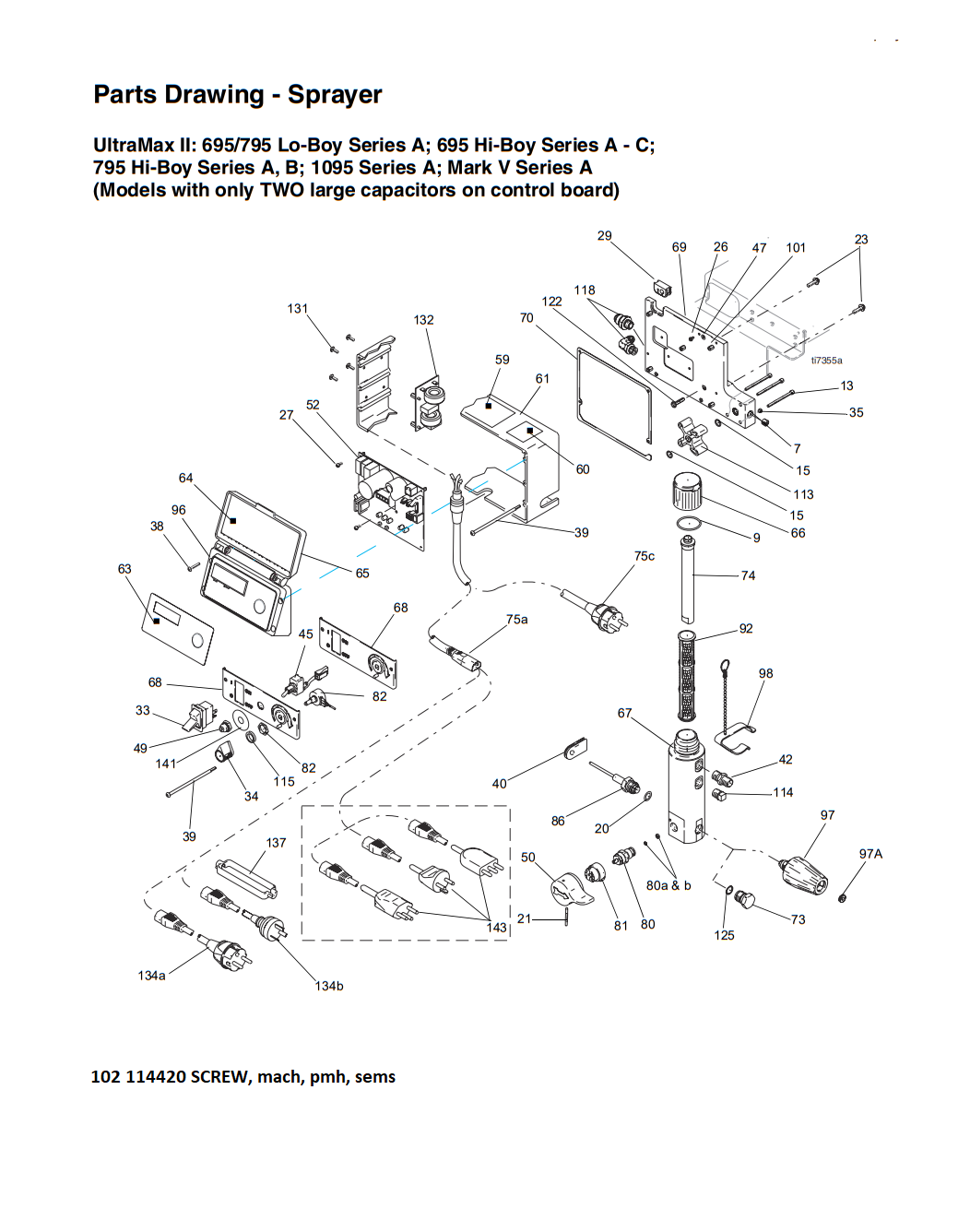

Full list and cross-references available via exploded diagram on product pages.

8. Cross-Model Compatibility Insights

These control box parts often overlap:

• Graco UltraMax II 695 – same enclosure

• Graco TrueCoat 360 DS – similar harness

• FieldLazer S100 – similar display plate

• Magnum LTS 17 & 19 – same gauge housing

Sprayersandparts promotes vetted compatibility w/ reference charts.

10. Sustainability Credentials

Professional performance isn't enough—Green matters too:

• OEM parts come in recyclable packaging

• Certified RoHS for reduced lead/Hg/Cd

• Long-life parts = less plastic/aluminum waste

• Same-day shipping reduces freight carbon

11. Fitment Questions Contractors Ask

• My board flashes 3 green blinks, parts mismatch? It’s firmware vs. harness signatures—our serial-ranged listings include correct versions.

• I see two transducers—one monitors feed, one isn’t replacing? Only one is OEM recommended for Series A boards.

• What’s the torque spec for mounting screws? 48 inch-lbs torque, clockwise only.

• Can I retro-fit USB firmware flash port? Series A was never field upgradable—buy updated kit or full board.

We’ll advise you through every step.

12. How to Order From Sprayersandparts.com

1. Choose the base module page

2. Use serial/date filter to ensure fit

3. Select harness, transducer, switch as needed

4. Add accessories (LED ring, gasket, jumper) if sending in core

5. Add seal/gasket kit separately

6. Place 12PM order for same-day ship

13. Summary — Why OEM Control Box Parts Matter

• Ensure system accuracy and pressure control

• Keep warranty valid and your fleet unified

• Standardized parts across Mark V and related models reduce errors

• Expert diagnostics/pairing saves thousands in downtime

• Green, compliant parts cut carbon and replacement frequency
